3

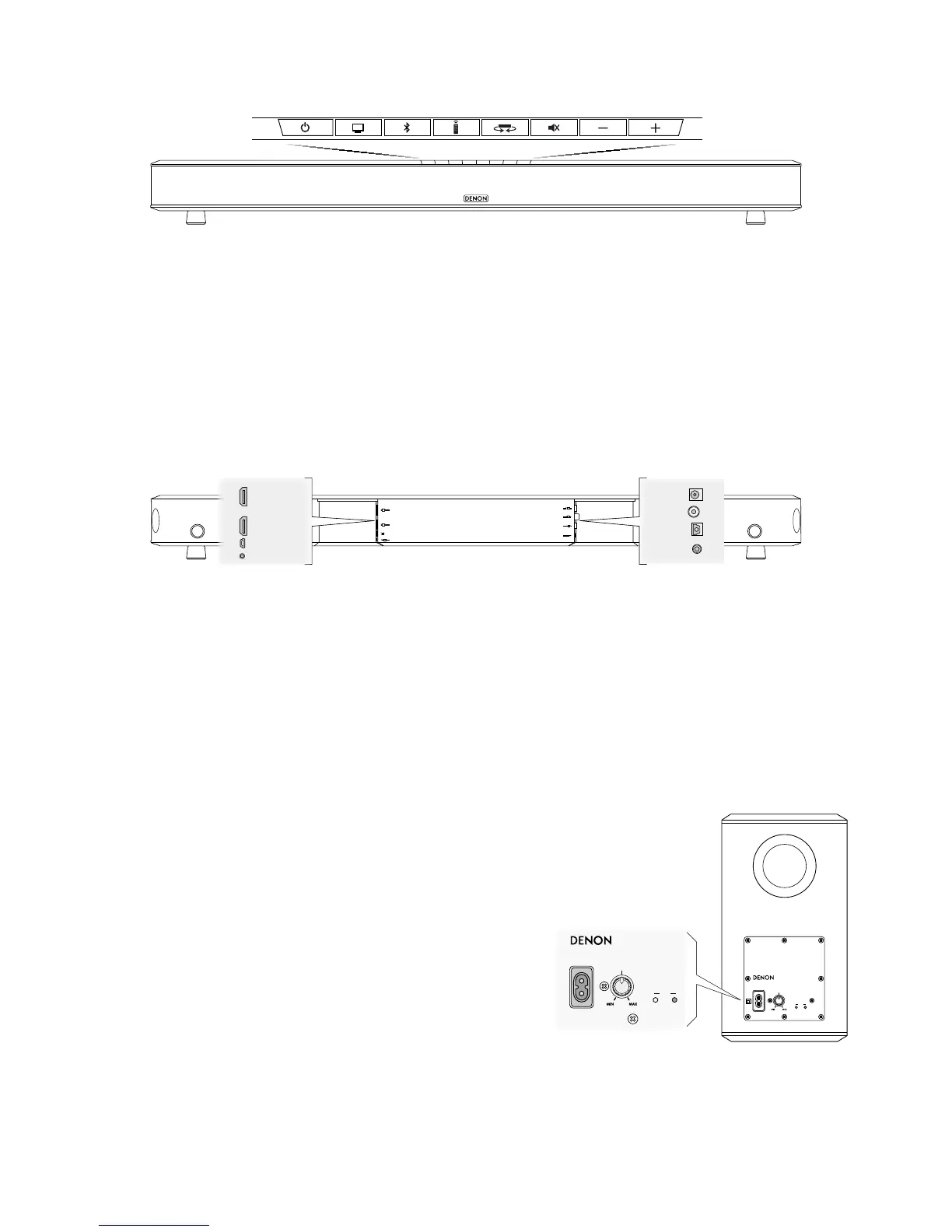

Sound Bar Controls
1 2 3 4 5 6 7 8
1) Power on/standby
2) Television/HDMI Input—select to watch television or connected HDMI equipment.
3) Bluetooth wireless input—select for Bluetooth pairing or playback.
4) Remote Learning—engages remote control learning.
5) Listening Mode—changes Listening Mode, stepping through the three modes in sequence.
6) Mute sound—Press to mute the audio, press again to unmute. (Pressing either Volume key also unmutes.)
7) Volume down—Decreases the volume. Press and hold to continually decrease the volume.
8) Volume up—Increases the volume. Press and hold to continually increase the volume.
Sound Bar Rear Panel
13
HDMI IN
HDMI OUT (ARC)
PAIR
ANALOG IN
OPTICAL
DIGITAL IN
COAXIAL
DIGITAL IN
DC IN
SERVICE
IR BLASTER OUT
TO TELEVISION
9
10
11
12
14
15
16
17
HDMI IN
HDMI OUT (ARC)
SERVICE
IR BLASTER OUT
TO TELEVISION
ANALOG IN
OPTICAL
DIGITAL IN
COAXIAL
DIGITAL IN
DC IN
9) HDMI Input—connects to the HDMI equipment with an HDMI cable.
10) HDMI Output (ARC)—connects to the TV with an HDMI cable. Compatible with the ARC function.
11) Service Port—for service only, do not use.
12) IR Blaster Output—connect the supplied IR Blaster here. See “Locating DHT-S514 Components” (vpage 4) for more information.
13) Pair Button—Pre-paired at the factory. See “Pairing the sound bar and subwoofer” (vpage 12) for more information.
14) Power Input—connect the power supply cable here.
15) Coaxial Digital In (RCA jack)—connects to television’s coaxial digital audio.
16) Optical Digital Input (S/PDIF)—connects to television’s optical digital out.
17) Analog In (3.5 mm mini plug stereo)—connects to television’s rear panel audio out.
Subwoofer Rear Panel
18) Power Input—connect the supplied power cable here.
19) Subwoofer Volume—Adjusts the volume of the subwoofer for best balance
with the sound bar.
20) Pair Button—Pre-paired at the factory. See “Pairing the sound bar and
subwoofer” (vpage 12) for more information.
21) Status LED
SUBWOOFER
VOLUME
PAIR
DHT-S514
SUBWOOFER
VOLUME
PAIR
DHT-S514
18 19 2120
AC IN
