8

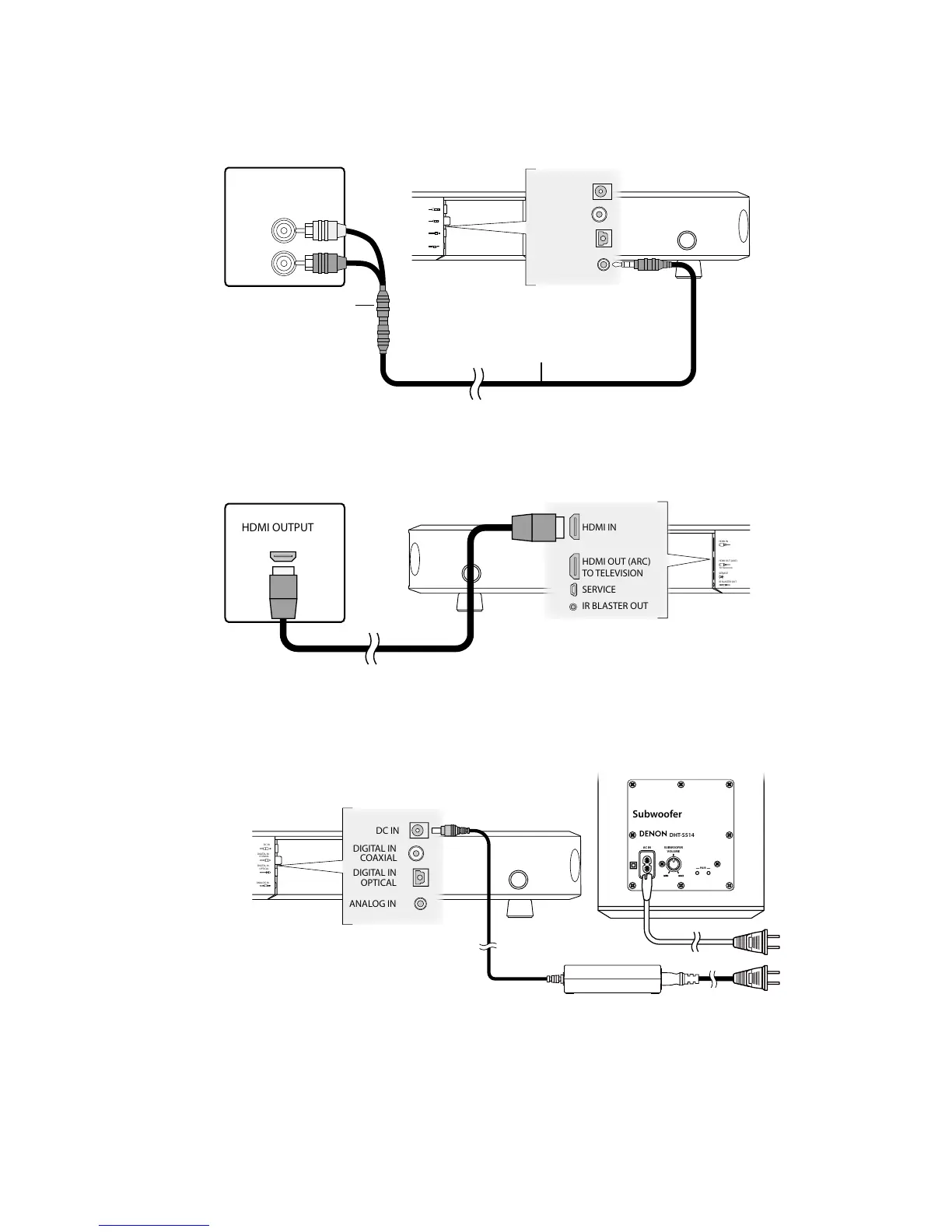

Analog Input – Fifth Choice
If your television has no digital audio outputs, connect its analog stereo audio output using the supplied 3.5 mm stereo cable to the analog
input of the DHT-S514. The analog outputs of most televisions are dual RCA jacks (typically red for right and white or black for left). Use the
supplied adaptor to connect those outputs to the 3.5 mm stereo cable.
ANALOG IN
OPTICAL
DIGITAL IN
COAXIAL
DIGITAL IN
DC IN
ANALOG IN
OPTICAL
DIGITAL IN
COAXIAL
DIGITAL IN
DC IN
DHT-S514 Sound Bar
Television rear panel
AUDIO
OUTPUT
RCA to 3.5 mm Adaptor
(supplied)
3.5 mm Stereo Cable (supplied)
Television rear panel
DHT-S514 Sound Bar
Connecting DHT-S514 to your HDMI equipment
You can play back from a device that has a HDMI terminal, such as a Blu-ray disc recorder or game console.
HDMI equipment rear panel
DHT-S514 Sound Bar
HDMI cable (not supplied)
Power Connections
Connect the sound bar power supply and power cord to the sound bar power input. Connect the subwoofer power cord to the subwoofer
power input. The wireless subwoofer connects to the sound bar automatically.
DHT-S514 Sound Bar
The subwoofer power switches on when the subwoofer power plug is inserted into the wall outlet. The PAIR LED on the back of the subwoofer
flashes red.
Connection with the subwoofer starts when the sound bar power is turned on. The PAIR LED lights green when connection to the subwoofer
has completed.
Note: If the LED does not light green, see page 12.
