Denon DL-103R User Manual

2. Tracking Force Adjustment
Tracking force in the range of 25 mN ± 3
mN (2.5 g ± 0.3 g) should be used.
3. Output Voltage
The output voltage is 0.25 mV. Use of a
step-up transformer for an MC type
cartridge, or a head amplier is
recommended.
4. Stylus and Record Cleaning
Clean the stylus with the brush provided
as illustrated in Figure 3. Also remove dirt
from the record surface with a good
quality record cleaner before and after
playing.
Specications
Principle Moving coil (MC) type
Output Voltage 0.25 mV
(1 kHz, 50 mm/s
horizontal direction)
Channel Balance 1 dB max. (1 kHz)
Channel Separation 25 dB min. (1 kHz)
Electrical lmpedance 14 Ω/ohms ±20 %
Compliance 5 x 10
-3
m/N
(Using a 100 Hz record）
Stylus 0.2 mm square
solid diamond
Tracking Force 25 mN ± 3 mN
(2.5 g ± 0.3 g)
Frequency Response 20 Hz to 45 kHz
Mass 8.5 g
Load Impedance 100 Ω/ohms min.
(40 Ω/ohms when
using a transformer)
Appearance and specications are subject to change without notice for purpose of Improvement.

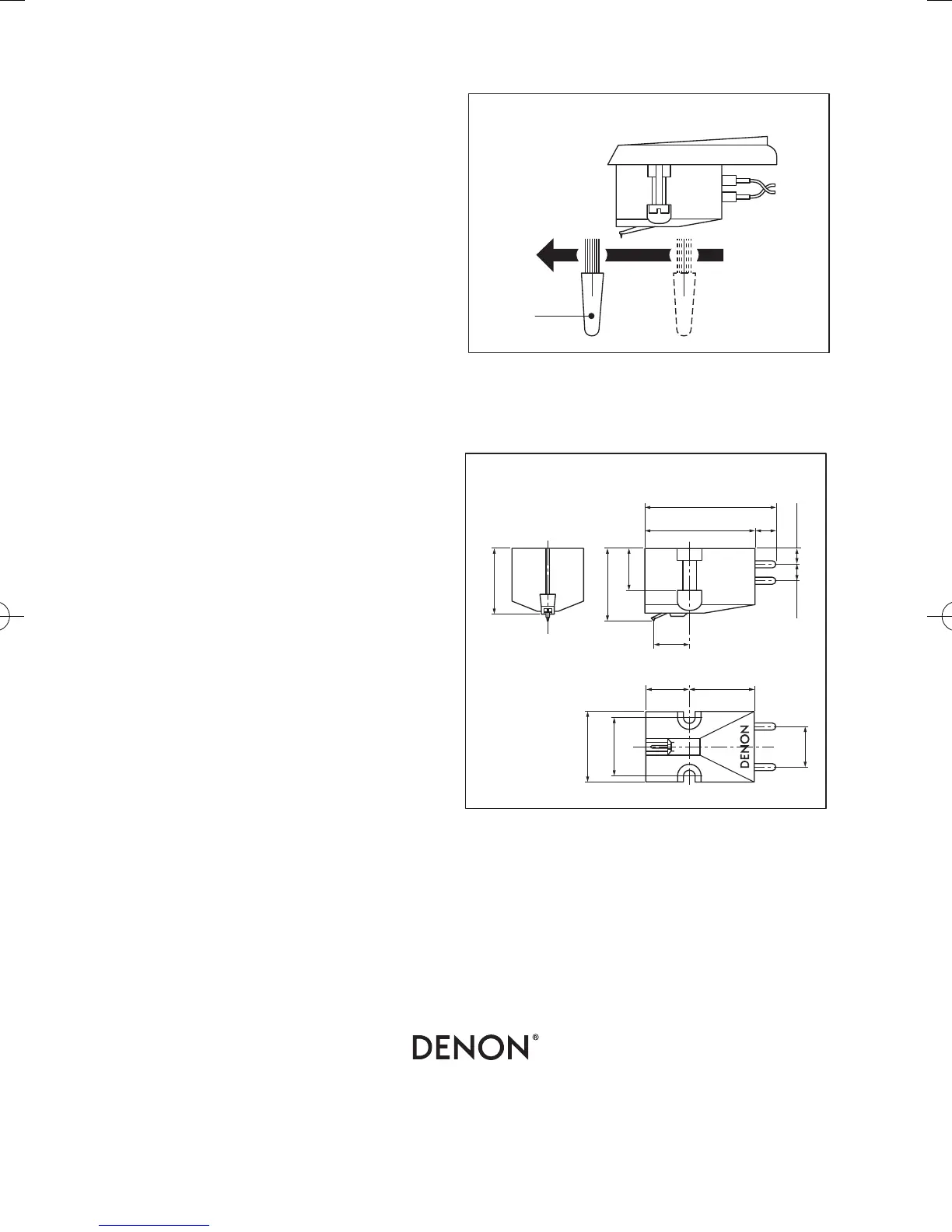

Figure 3. Stylus Cleaning
Brush
www.denon.com
D&M Holdings Inc.
Printed in Japan 00D 511 4477 100
15
8.5
3.33.5
9
7. 5
13.5
15
12.7
9 13.5
26.8
22.5 4.3
External Dimensions Diagram
(mm)
DL-103R_ENG_00D5114477100.indd 2 2015/12/24 15:14:44

Denon DL-103R Specifications

General

Voltage	0.25 mV
Impedance	40 Ω
Compliance	5 x 10-6 cm/dyne
Product color	Black
Frequency range	20 - 45000 Hz
Stylus tip radius	16.5 µm
Tracking force range	2.3 - 2.7 g

Weight and Dimensions

Weight	8.5 g
