Part names and functions

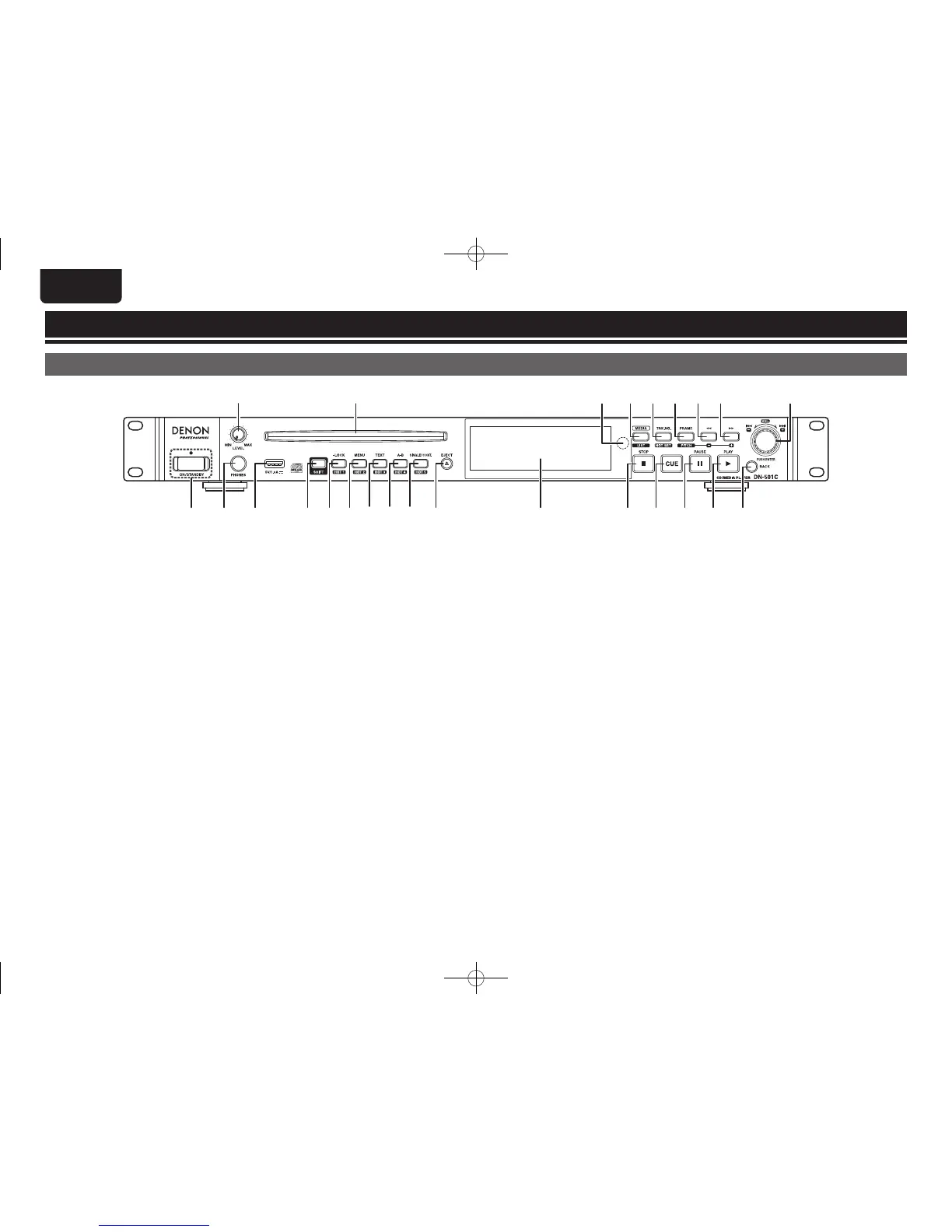

Front panel
W2 W1 W0 Q9 Q8 Q7W3W4W5
q
Q6
Q0 Q1 Q2 Q5Q3 Q4w tre y oiu
q
ON/STANDBY, Power indicator
Turns the power on and off.
G
Power indicator status
H
Power on: Green
Standby: Red
w
Headphones jack (PHONES)
e
USB port
Connects to a USB device or iPod.
r
SHIFT button (SHIFT)
When the LED is lit, the function assigned to
SHIFT is enabled.
t
LOCK/HOT 1 button
Press and hold for more than 1 second to switch
between all keys locked, specific button lock,
and all keys unlocked.
•Press while holding down
r
SHIFT to
play back from the location set to Hot Start
#1. (Same applies for
y
to
o
HOT 2 to 5
buttons.)
•When in Hot Set mode, the currently selected
track is registered as Hot Start #1. (Same
applies for
y
to
o
HOT 2 to 5 buttons.)
y
MENU/HOT 2 button
Displays the main menu.
u
TEXT/HOT 3 button
Scrolls the file name and text information on
display.
i
A-B/HOT 4 button
Sets A-B repeat playback.
o
SINGLE/CONT./HOT 5 button
Switches the playback mode (SINGLE and
CONTINUOUS).
Q0
EJECT button
Q1
Display
Q2
Stop/Cancel button (
2
)
Q3
CUE button
Q4
Pause button (
3
)
Q5
Play button (
1
)
Q6
BACK button
Returns to the previous operation.
Q7
Jog Dial/
PUSH ENTER button
Moves between tracks. Also, after selecting
a track, press the jog dial to play the selected
track.
•Rotate the jog dial while holding down
r
SHIFT to adjust the output level.
•Selects and enters items while the menu is
displayed.
Q8
Fast Forward/Pitch + button (
7
)
Q9
Fast Rewind/Pitch - button (
6
)
W0
FRAME/PITCH button
Switches to frame search mode and starts
Audible Pause.
•Press while holding down the
r
SHIFT
button to switch the pitch on/off.
W1
TRK NO./HOT SET button
Selects tracks directly.
•Press while holding down
r
SHIFT to switch
to HOT SET Mode and register the current
track to Hot Start.
W2
MEDIA/LIST button
Switches between media.
•Press while holding down
r
SHIFT to display
the file list.
W3
Remote control signal receiver
W4
Disc Slot
W5
Headphone Volume Adjustment Knob
(LEVEL)
Adjusts the volume of the headphones.
Press the knob to make it spring out.
After adjusting the volume, press the knob back
in again.
