Denon DN-F650R User Manual

4

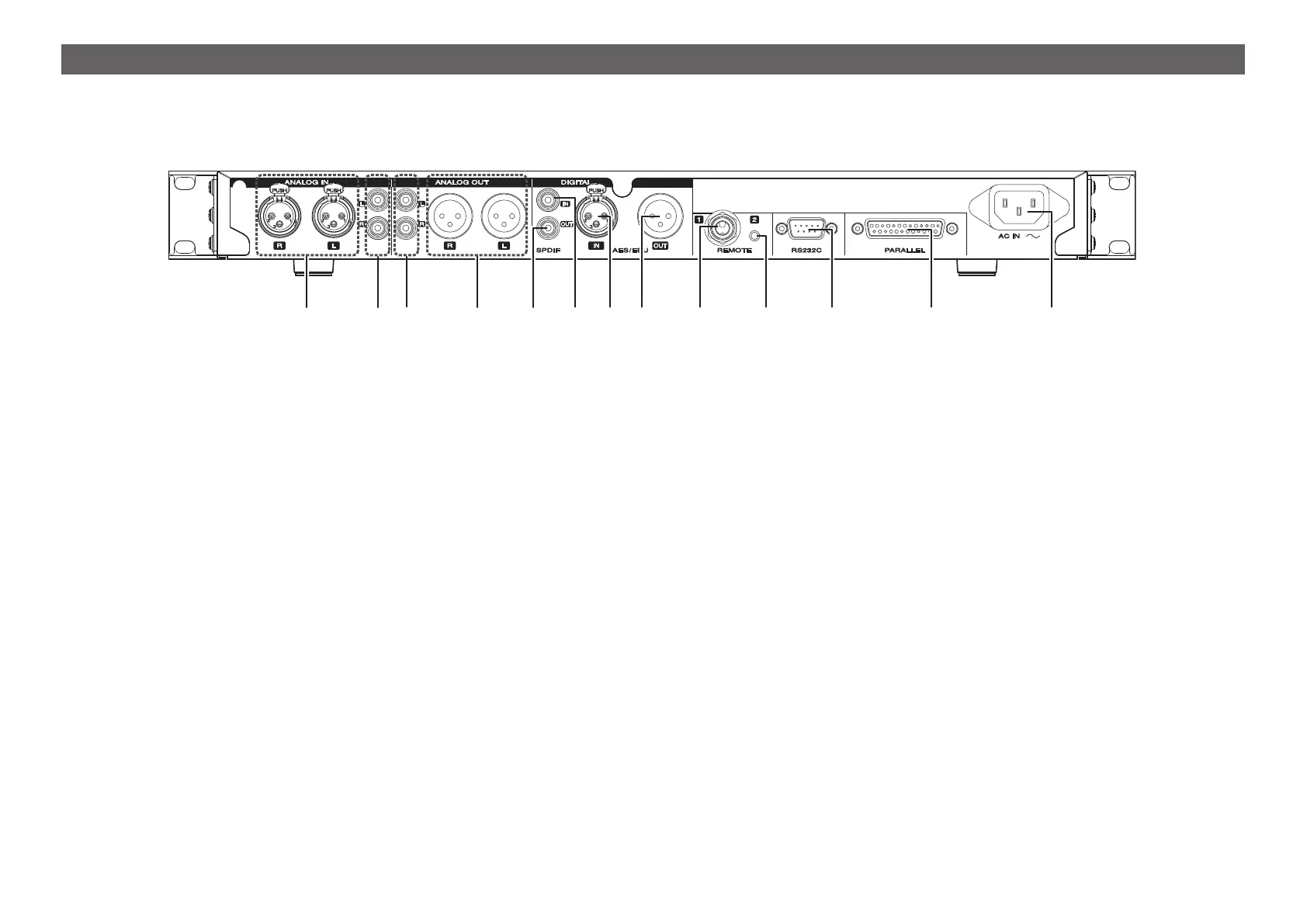

Rear panel
ouy i Q1Q0 Q2 Q3r tq
e
w
q Analog input (Balanced) terminal ··············(7)
• XLR Type
• Pin Arrangement: 1GND, 2 Hot, 3 Cold
• Applicable Connector: XLR-3-12C or equivalent
w Analog input (Unbalanced) terminal ········· (7)
• RCA Type
e Analog output (Unbalanced) terminal ······ (8)
• RCA Type
r Analog output (Balanced) terminal ············ (8)
• XLR Type
• Pin Arrangement: 1GND, 2 Hot, 3 Cold
• Applicable Connector: XLR-3-11C or equivalent
t Digital output (RCA) terminal ····················· (7)
• RCA Type
• Signal Format: IEC-60958 (SPDIF)
y Digital input (RCA) terminal ························ (7)
• RCA Type
• Signal Format: IEC-60958 (SPDIF)
u Digital input (XLR) terminal ························ (7)
• XLR Type
• Pin Arrangement: 1GND, 2 Hot, 3 Cold
• Signal Format: IEC-60958 (AES/EBU)
• Applicable Connector: XLR-3-12C or equivalent
i Digital output (XLR) terminal ······················ (7)
• XLR Type
• Pin Arrangement: 1GND, 2 Hot, 3 Cold
• Signal Format: IEC-60958 (AES/EBU)
• Applicable Connector: XLR-3-11C or equivalent
o REMOTE 1 jack ············································(8)
Connect a wired remote switch equipped with a
monaural Phone jack.
Q0 REMOTE 2 jack ·············································(8)
Connect microphone remote RC600PMD (sold
separately) or external remote controller.
Q1 RS-232C connector ······································· (8)
Q2 Parallel port (PARALLEL) ····························· (8)
Q3 AC inlet (AC IN) ············································· (8)
