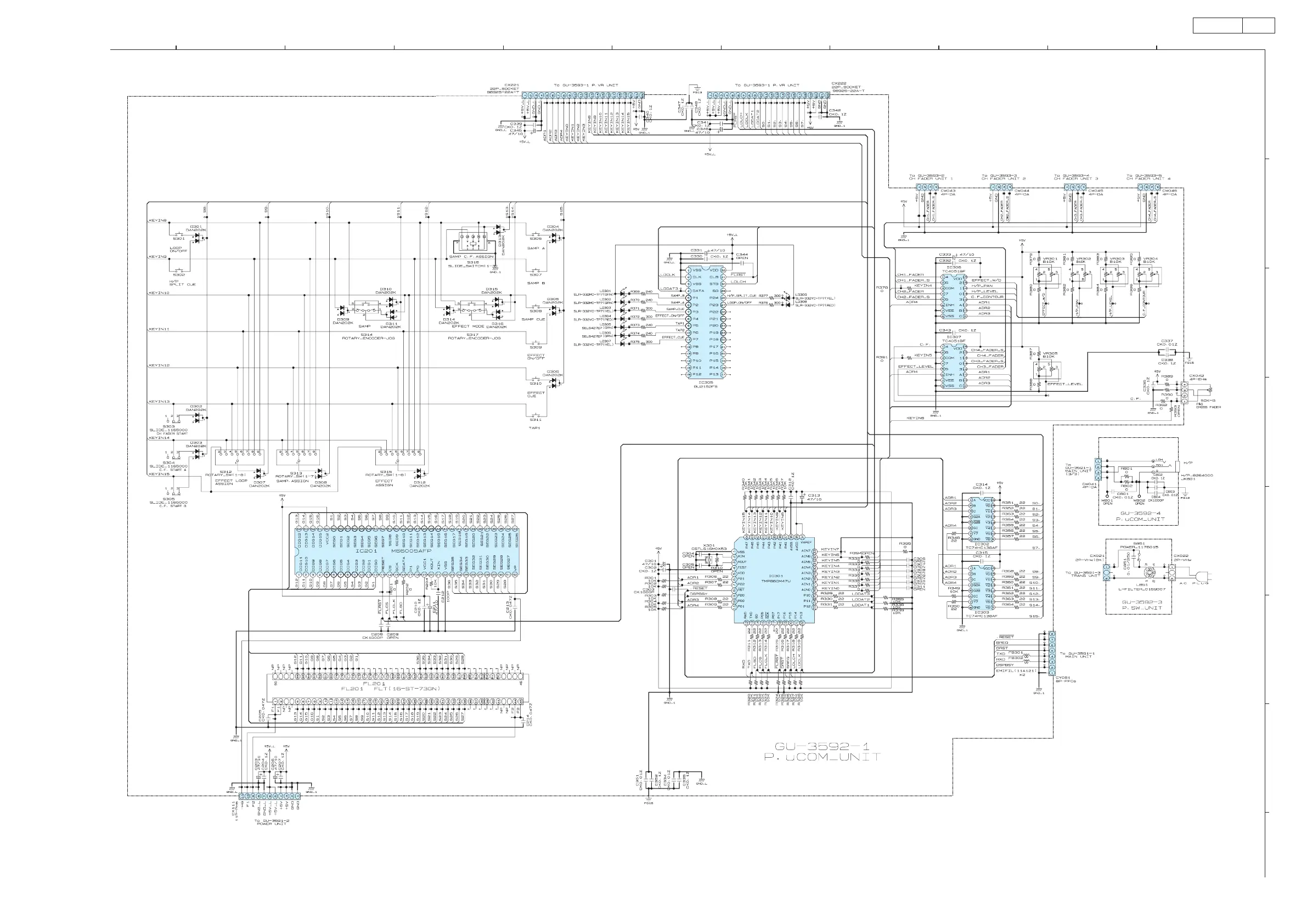

SCHEMATIC DIAGRAMS (5/8)
GU-3592-1 P. uCOM UNIT
GU-3592-3 P. SW UNIT
GU-3592-4 P. uCOM UNIT
SCHEMATIC DIAGRAMS (5/8)
1234567891011
A
B
C
D
E
F
G
H
DN-X1500
