Denon DP-59L Service Manual

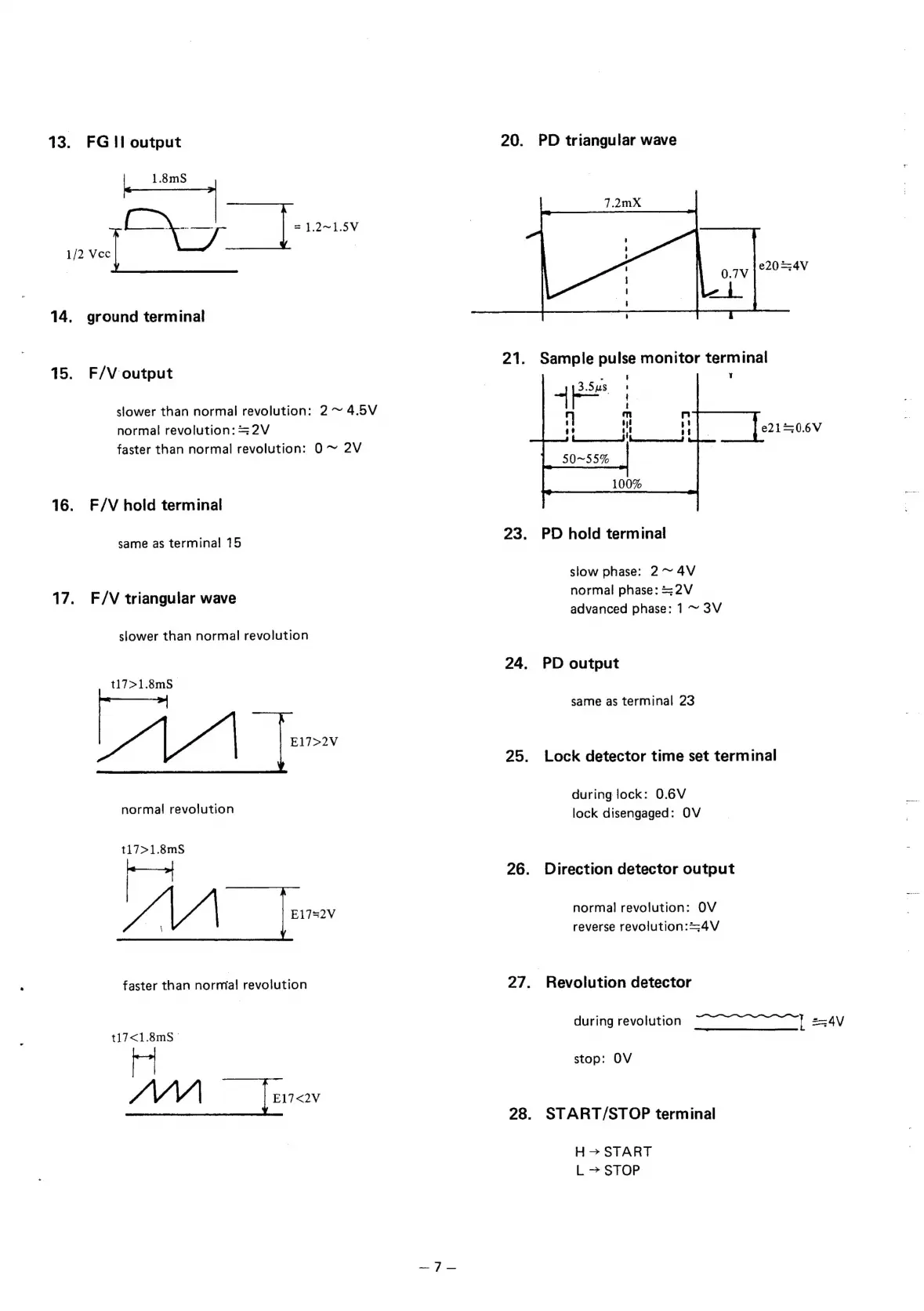

13. FG1!1 output
| 1.8mS
= 1.2~1.5V
1/2 ves we
14. ground terminal
15. F/V output
slower than normal revolution: 2 ~~ 4.5V
normal revolution: =2V
faster than normal revolution: 0 ~~ 2V
16. F/V hold terminal
same as terminal 15
17. F/V triangular wave
slower than normal revolution
t17>1.8mS
E17>2V
;
normal revolution
t17>1.8mS
—
| E1752V
\
faster than normal revolution
t17<1.8mS ©
m
1" | E17<2V
20.
21.
23.
24.
25.
26.
27.
28.
PD triangular wave
Sample pulse monitor terminal
T
e2150.6V
PD hold terminal
slow phase: 2~ 4V
normal phase: =2V
advanced phase: 1 ~ 3V
PD output
same as terminal 23
Lock detector time set terminal
during lock: 0.6V
lock disengaged: OV
Direction detector output
normal revolution: OV
reverse revolution: =4V
Revolution detector
during revolution
stop: OV
START/STOP terminal
H-> START
L > STOP

Denon DP-59L Specifications

General

Drive System	Direct Drive
Motor	AC Servo Motor
Wow and Flutter	0.008% WRMS
Platter Size	300 mm
Effective Tonearm Length	244 mm
Speed	33 1/3, 45 rpm
Platter	Die-cast aluminum
Tonearm Type	Static balance type (interchangeable)
