Denon DP DP-300F User Manual

ENGLISH
6
Operation Operation
ENGLISH
The included stylus has a service life of about 400 hours. To avoid
damaging valuable records, replace the stylus without delay.
Purchase a replacement stylus at the store where you purchased the
record player or your nearest repair and inquiry outlet. Specify that you
want the “DSN-85” replacement stylus exclusively for the DP-300F.
q
w

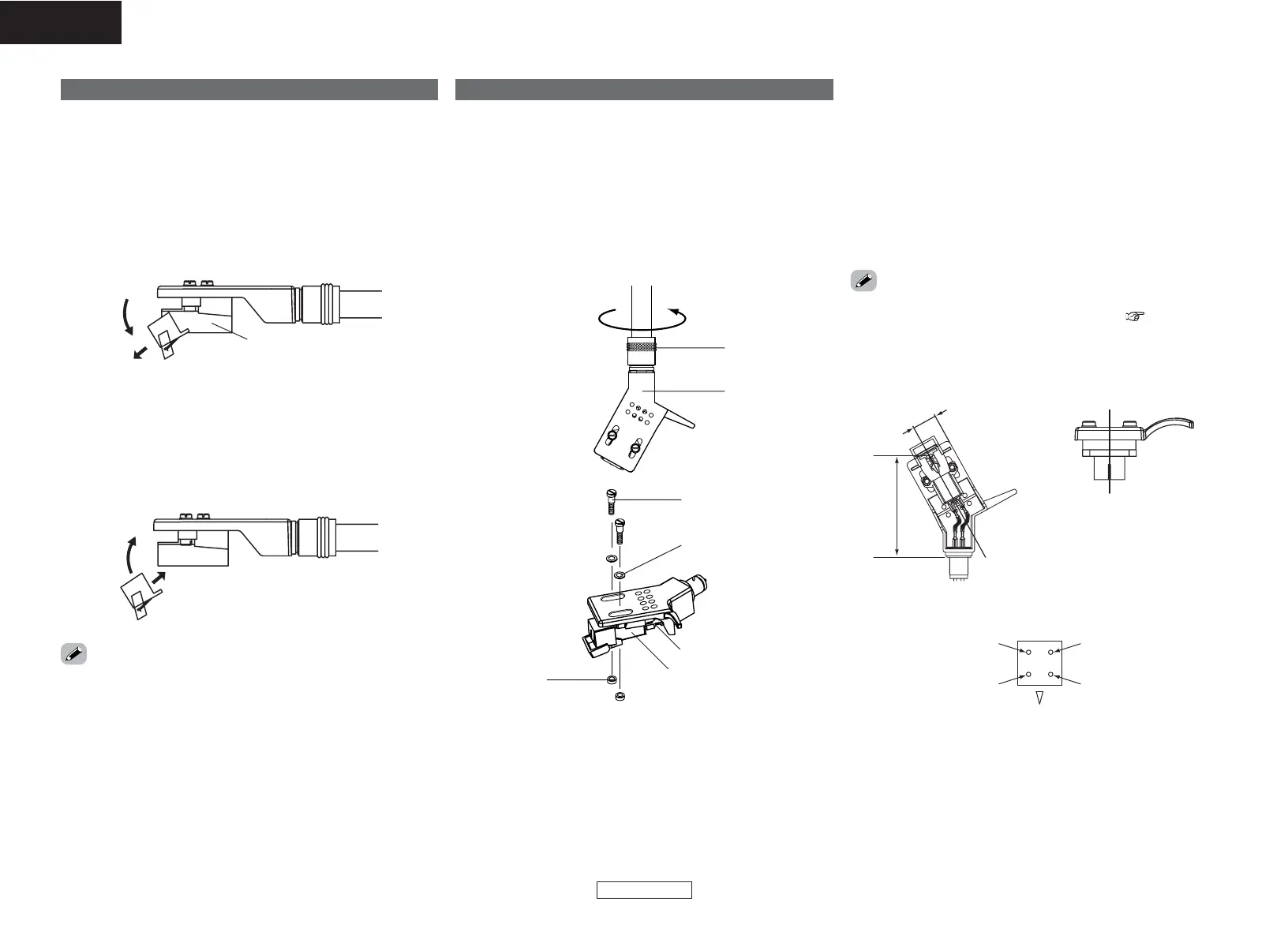

¢ Removing the replaceable stylus
Holding the cartridge steady with one hand, grasp the replaceable
stylus with the other hand, push down in the direction of arrow q,
then pull the stylus off gently in the direction of arrow w.
Cartridge
q
w
¢ Mounting the replaceable stylus
Holding the cartridge steady with one hand, grasp the replaceable
stylus with the other hand, point the catch on the replaceable
stylus in the direction of arrow q, insert it all the way into the long
hole in the cartridge, then push up in the direction of arrow w until
a click is heard.
•Before replacing the stylus, turn off the amplifier’s power and
unplug the player’s power supply cord.
•The stylus tip is an extremely delicate part, so handle it very
carefully. Use a soft brush to gently remove any dust from the stylus
tip.
•Removing the head shell makes it easy to replace the stylus.
If you wish to mount a different cartridge on this player, use one
weighing about 44 to 93 mN (about 4.5 to 9.5 g).
To purchase a head shell only, ask for a “PCL-310SP (Silver) / PCL-
310BK (Black)” exclusively for the DP-300F at your store of purchase
or nearest repair and inquiry outlet.
¢ Removing the cartridge
1. Turn the head shell lock nut in the direction of the arrow and
remove the head shell.
2. Remove the cartridge mount screws.
3. Disconnect the lead wires on the cartridge side.
Lock nut
Head shell
Cartridge mount screw
Washer
Lead wire
Cartridge
Nut
¢ Mounting the cartridge
1. Connect the lead wires. They are color-coded as shown below. Be
careful to connect them properly.
RED .........................Right channel (R)
WHITE.....................Left channel (L)
GREEN.....................Right channel ground (RG)
BLUE .......................Left channel ground (LG)
2. To achieve the required overhang, mount in such a way that the
stylus tip is positioned about 45 mm from the edge of the head
shell’s mount surface (the rubber washer), as shown on the
diagram below. (The overhang for this player should be 19 mm.)
•After replacing the cartridge, do not forget to readjust the horizontal
balance, stylus pressure, and anti-skating value ( page 3).
•The thickness of the terminal depends on the replacement cartridge,
and some may not connect securely. In this case, use the included
spare lead wire.
45 mm
(Back side of head shell)
Mount parallel.
(Front side of head shell)
Mount perpendicular.
(Backside of cartridge)
Above
(RED) R
(GREEN) RG
(WHITE) L
(BLUE) LG
Replacing the stylus Replacing the cartridge

Denon DP DP-300F Specifications

General

Drive System	Belt Drive
Cartridge Type	MM (Moving Magnet)
Phono Equalizer	Built-in
Motor	DC Motor
Wow and Flutter	0.15% (WRMS)
Effective Arm Length	221.5 mm
Overhang	19 mm
Output Voltage	2.5 mV
Frequency Response	20 Hz - 20 kHz
Power Supply	AC 120 V, 60 Hz
Power Consumption	2 W
Signal-to-Noise Ratio	60 dB
Weight	5.5 kg
Speed	33 1/3, 45 RPM
Platter	Aluminum
Speeds	33 1/3, 45 RPM
Dimensions	434 x 122 x 381 mm
