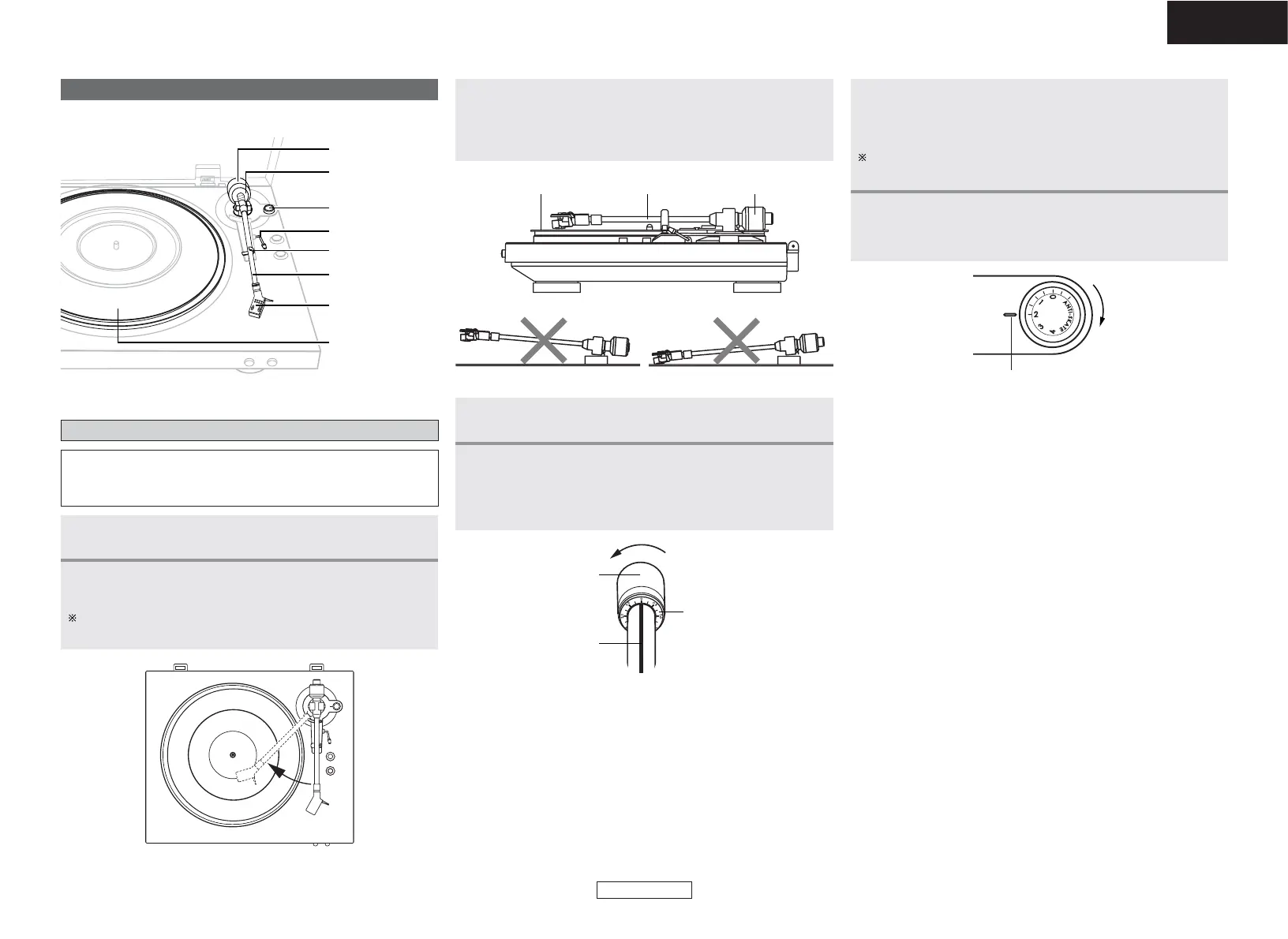

Adjustments
Turn the power off when making the adjustments.
Counterweight
Lifter lever
Armrest
Tone arm
Cartridge
Turntable
Stylus pressure
adjustment ring
Anti-skating knob
NOTE:
•Be very careful not to damage the stylus tip on the turntable
sheet, etc.
Set the anti-skating knob to “0”.
1
Lower the lifter lever and move the tone arm over the
turntable.
For cartridges with removable stylus covers, remove the stylus
cover.
2
Balance the tone arm.
•Move the counterweight forward or backward so that the tone
arm is parallel to the turntable surface when you are not
touching it.
3
Set the tone arm back on the armrest.
4
Holding the counterweight with a finger so that it
does not move, turn the stylus pressure adjustment
ring so that it’s “0” mark is lined up with the center
line of the tone arm’s rear shaft.
5
Turntable surface Tone arm Counterweight
(Weight too far to the back)
(Weight too far to the front)
Counterweight
Center line
Stylus pressure
adjustment ring
A
Turn the counterweight in the direction of arrow “A”
and set to the appropriate stylus pressure for the
cartridge.
The appropriate stylus pressure for the included cartridge is 2.0
g (19.6 mN). Set to “2”.
6
Turn the anti-skating knob and set to the same value
as for the cartridge’s stylus pressure.
•The proper anti-skating value can be achieved.
7
Stylus pressure and anti-skating adjustment
Setting reference point

Denon DP DP-300F Specifications

General

Drive System	Belt Drive
Cartridge Type	MM (Moving Magnet)
Phono Equalizer	Built-in
Motor	DC Motor
Wow and Flutter	0.15% (WRMS)
Effective Arm Length	221.5 mm
Overhang	19 mm
Output Voltage	2.5 mV
Frequency Response	20 Hz - 20 kHz
Power Supply	AC 120 V, 60 Hz
Power Consumption	2 W
Signal-to-Noise Ratio	60 dB
Weight	5.5 kg
Speed	33 1/3, 45 RPM
Platter	Aluminum
Speeds	33 1/3, 45 RPM
Dimensions	434 x 122 x 381 mm
