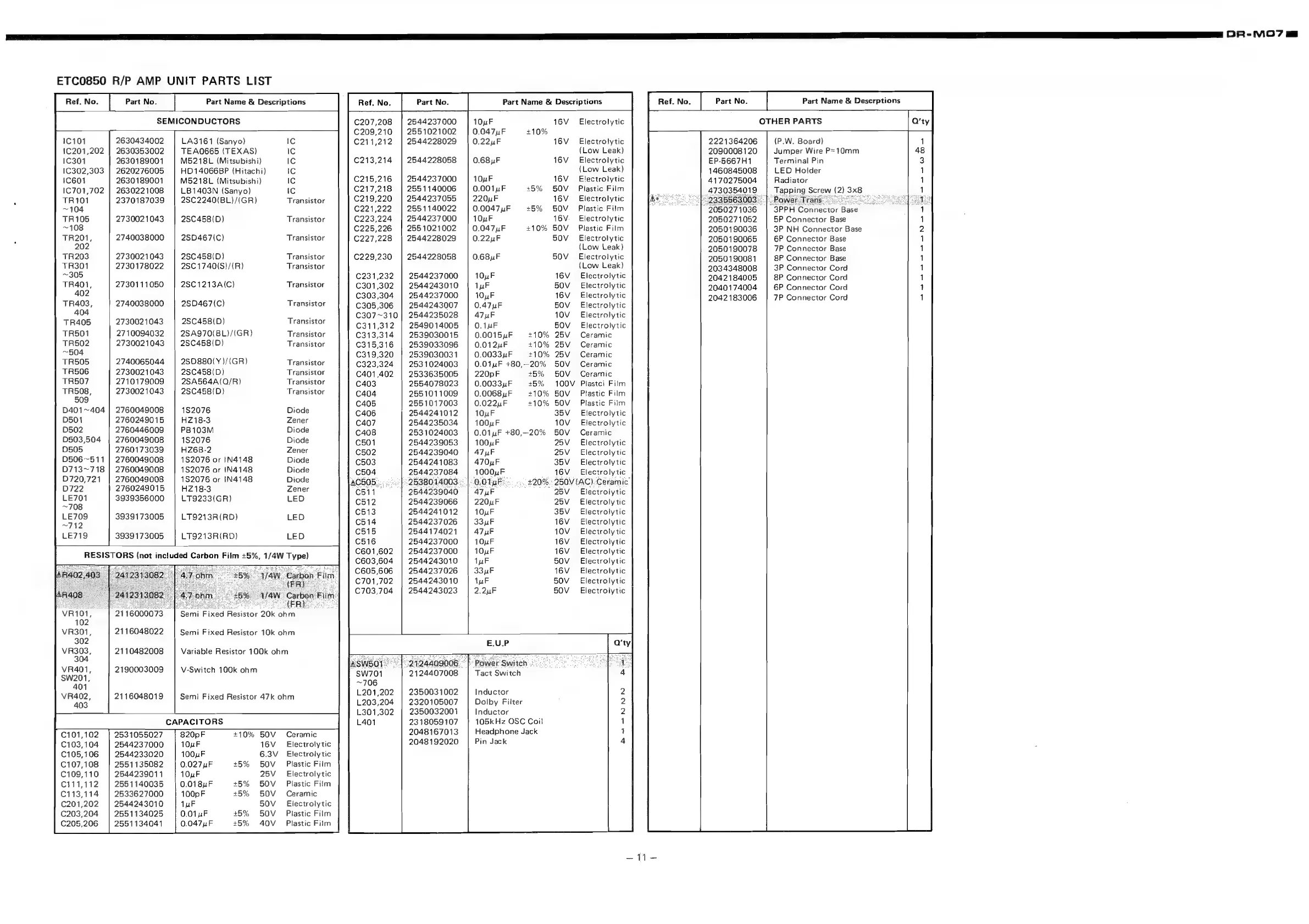

ETCO850 R/P AMP UNIT PARTS LIST
Ref. No. Part No. Part Name & Descriptions Ref. No. | PartNo. | Part Name & Descriptions Ref. No. Part No. Part Name & Descrptions
SEMICONDUCTORS C207,208 | 2544237000 | 10uF 16V_ Electrolytic OTHER PARTS a’ty
C209,210 | 2551021002 | 0.047uF 210%
1C101 2630434002 | LA3161 (Sanyo) IC C211,212 | 2544228029 | 0.22uF 16V_ Electrolytic 2221364206 | (P.W. Board) 1
1C201,202 | 2630353002 | TEAO665 (TEXAS) Ic (Low Leak) 2090008120 | Jumper Wire P=10mm 48
1C301 2630189001 M5218L (Mitsubishi) IC C213,214 | 2544228058 0.68 uF 16V_ Electrolytic EP-5667H1 Terminal Pin 3
1C302,303 | 2620276005 | HD14066BP (Hitachi) IC (Low Leak) 1460845008 | LED Holder 1
1C601 2630189001 | M5218L (Mitsubishi) Ic C215,216 | 2544237000 | 10uF 16V_ Electrolytic 4170275004 | Radiator 1
1€701,702 | 2630221008 LB1403N (Sanyo) tc C217,218 | 2551140006 0.001uF +5% 50V_ Plastic Film - Tapping S 1
; TR101 2370187039 2SC2240(BL)/(GR) Transistor C219,220 | 2544237055 220uF 16V_ Electrolytic Aes oe beP uz ; qs
~104 C221,222 | 2551140022 | 0.0047uF +5% 5OV Plastic Film EES 1050271036 | 3PPHC se .
205027 10. Onnector Ba!
TR105 2730021043 2S8C458(D) Transistor C223,224 2544237000 10uF 16V. Electrolytic 2050271052 5P Connector Base 1
~108 C225,226 255 1021002 0.047 uF +10% 50V_ Plastic Film 2050190036 3P NH Connector Base 2
. TR201, 2740038000 | 2SD467{C) Transistor C227,228 | 2544228029 | 0.22uF 50V_ Electrolytic 2050190065 | 6P Connector Base 1
202 (Low Leak) 2050190078 | 7P Connector Base 1
TR203 2730021043 | 2SC458(D) Transistor C229,230 | 2544228058 | 0.68uF 50V_ Electrolytic 2050190081 | 8P Connector Base 1
TR301 2730178022 28C 1740(S)/(R) Transistor (Low Leak) 2034348008 | 3P Connector Cord 1
~305 C231,232 2544237000 10uF 16V_ Electrolytic 2042184005 8P Connector Cord 1
a 2730111050 | 2SC1213A(C) Transistor C€301,302 | 2544243010 | 1puF 5OV_ Electrolytic 2040174004 | 6P Connector Cord 1
. C303 304 2544237000 10uF 16V Electrolytic 2042183006 7P Connector Cord 1
TRS, 2740038000 | 2S5D467(C) Transistor C305,306 | 2544243007 | 0.47uF 50V_ Electrolytic
. C307~310] 2544235028 | 47uF 10V_ Electrolytic
TR405 =| 2730021043 | 28C458(0) eben S45 €311,312 | 2549014005 | 0.1uF SOV Electrolytic
TR501 2710094032 2SA970(BL)/(GR} Transistor C313,314 | 2539030015 0.0015 uF 10% 25V Ceramic
TR502 2730021043 | 2SC458(D) Transistor C315,316 | 2539033096 | 0.012uF 410% 25V Ceramic
moos €319,320 | 2539030031 | 0.0033uF +10% 25V Ceramic
TR505 2740065044 | 250880(Y)/(GR) Transistor 323,324 | 2531024003 | 0.01uF +80,-20% 50V Ceramic
TRSG6 2730021043 | 25C458(D) Transistor | | C401,402 | 2533635005 | 220pF +5% 5O0V Ceramic
TRSO7 2710179009 | 25A564A(Q/R) Transistor | | C403 2554078023 | 0.0033uF +#5% 100V Plastci Film
eee 2730021043 | 2SC458(D) Transistor C404 2551011009 | 0.0068uF +10% 5OV Plastic Film
ia C405 2551017003 | 0.022uF +10% 50V_ Plastic Film
ae 404 ie ap bee 152076 Diode C406 2544241012 | 10uF 35V_ Electrolytic
1 60249015 | HZ18-3 Zener C407 2544235034 | 100uF 10V_ Electrolytic
D502 2760446009 | PB103M Diode C408 2531024003 } 0.01uF +80,—20% S0V Ceramic
0503,504 | 2760049008 | 182076 Diode C501 2544239053 | 100uF 25V Electrolytic
D505 2760173039 | H268-2 Zener C502 2544239040 | 47uF 25V_ Electrolytic
D506~511 | 2760049008 182076 or IN4148 Diode C503 2544241083 470uF 35V_ Electrolytic
Semele 2760049008 182076 or IN4148 Diode | c504 2544237084 1000uF 16V_ Electrolytic
720,721 | 2760049008 182076 or IN4148 Diode ACBOB 65s: ]82538014003'. |: 0.01 pF: £20%.: 250V(AC).Ceramic
D722 2760249015 | HZ18-3 Zener Rea SEAdD AOR: a Sone Tey a
ware SEGEEGOR Matas C511 2544239040 | 47uF 25V Electrolytic
pa T9233(GR) LED C512 2544239066 | 220uF 25V_ Electrolytic
C513 2544241012 | 10uF 35V_ Electrolytic
LE709 3939
~712 TeSOOSy |e beer they CED c514 2544237026 | 33uF 16V_ Electrolytic
C515 2644174021 | 47uF 10V_ Electrolytic
LE719 3939173005 | LT9213R(RD B y
7 as LED C516 2544237000 10uF 16V_— Electrolytic
: ; C601,602 | 2544237000 | 10uF 16V_ Electrolytic
RESISTORS (not included Carbon Film +5°
inet included Carbon: Film 25%. 4/2001 ype! _| | c603,604 | 2544243010 | 1yF 50V_ Electrolytic
; ge He C605,606 | 2544237026 33 uF 16V_ Electrolytic
MAW, Corbon Fl.) | c701,702 | 2544243010 | tue 50V_ Electrolytic
rey Carbon KA C703,704 | 2544243023 2.2uF 50V_ Electrolytic
qe: ee OP ee 4
2116000073 Semi Fixed Resistor 20k ohm
2116048022 Semi Fixed Resistor 10k ohm
302 E.U.P
ey 2110482008 Variable Resistor 100k ohm — :
uSW5O1) |2124409006 ” | Power Switeh vio
Uae 2190003009 | V-Switch 100k ohm 3124407008 | Tact Switch
401
aan . 235003 1002 Inductor
VR402, 2116048019 F
sae Semi Fixed Resistor 47k ohm 2320105007 Dolby Filter
L301,302 2350032001 Inductor
CAPACITORS L401 23 18059107 105k Hz OSC Coil
| C101,102 | 2531055027 | 820pF +10% 50V Ceramic 2048167013 | Headphone Jack
C103,104 | 2544237000 | 10uF 16V_ Electrolytic 2048192020 | Pin Jack
C105,106 | 2544233020 | 100uF 6.3V_ Electrolytic
C107,108 | 2551135082 | 0.027uF +5% 50V_ Plastic Film
C109,110 | 2544239011 | 10uF 25V Electrolytic
C111,112 2551140035 0.01 8uF +5% 50V_ Plastic Film
C113,114 2533627000 100pF +5% 50V_ Ceramic
C201,202 2544243010 Tur 50V_ Electrolytic
C203,204 2551134025 0.01 uF *5% 50V_ Plastic Film
C205,.206 2551134041 0.047 uF +5% 40V_ Plastic Film
