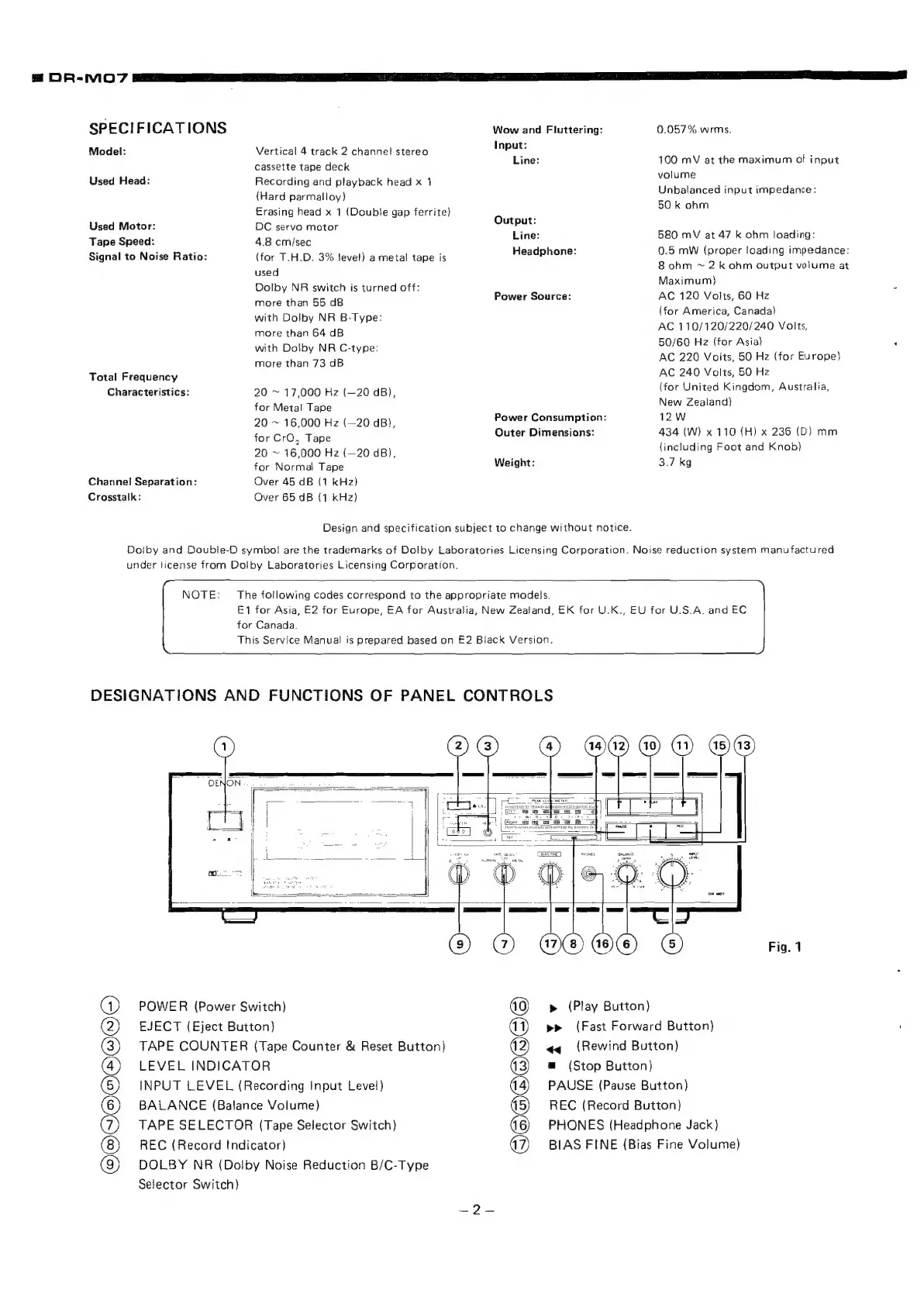

Denon DR-M07 - Specifications

BO 1 C7 eT
SPECIFICATIONS Wow and Fluttering: 0.057% wrms.
Model: Vertical 4 track 2 channel stereo Input: . F
Line: 100 mV at the maximum of input
cassette tape deck aie
Used Head: Recording and playback head x 1 vou ‘ ‘
Unbalanced input impedance:
(Hard parmalloy} SO Con
Erasing head x 1 (Double gap ferrite) Patan? Onn
Used Motor: DC servo motor MEP:
a : Line: 580 mV at 47 k ohm loading:
Tape Speed: 4.8 cm/sec H 5 mW ( faded med :
Signal to Noise Ratio: (for T.H.D. 3% level) a metal tape is eadphons: oun Bre D Ere cog pe crea
used 8 ohm ~ 2 k ohm output volume at
Dolby NR switch is turned off:
more than 55 dB
with Dolby NR B-Type:
more than 64 dB
with Dolby NR C-type:
more than 73 dB
Total Frequency
Characteristics: 20 ~ 17,000 Hz (—20 dB),
for Metal Tape
20 ~ 16,000 Hz (—20 dB},
for CrOQ, Tape
20 ~ 16,000 Hz (—20 dB),
for Normal Tape
Over 45 dB (1 kHz)
Over 65 dB (1 kHz)
Channel Separation:
Crosstalk:
Power Source:
Power Consumption:
Outer Dimensions:
Weight:
Maximum)
AC 120 Volts, 60 Hz
(for America, Canada)
AC 110/120/220/240 Volts,
50/60 Hz (for Asia) r
AC 220 Voits, 50 Hz (for Europe)
AC 240 Volts, 50 Hz
(for United Kingdom, Australia,
New Zealand}
12W
434 (W) x 110 (H) x 236 (D) mm
(including Foot and Knob)
3.7 kg
Design and specification subject to change without notice.
Doiby and Double-D symbol! are the trademarks of Dolby Laboratories Licensing Corporation. Noise reduction system manufactured
under license from Dolby Laboratories Licensing Corporation.
The following codes correspond to the appropriate models.
E1 for Asia, E2 for Europe, EA for Australia, New Zealand, EK for U.K., EU for U.S.A. and EC
for Canada.
This Service Manual is prepared based on E2 Biack Version.
DESIGNATIONS AND FUNCTIONS OF PANEL CONTROLS
@
POWER (Power Switch)
EJECT (Eject Button)
TAPE COUNTER (Tape Counter & Reset Button}
LEVEL INDICATOR
INPUT LEVEL (Recording Input Level)
BALANCE (Balance Volume)
TAPE SELECTOR (Tape Selector Switch)
REC (Record tndicator)
DOLBY NR (Dolby Noise Reduction B/C-Type
Selector Switch}
OOQVEOEHQOEOHO
Q OO &
@
®
3
©
wy
Fig. 1
p (Play Button)
pp
(Fast
Forward
Button)
;
@q
(Rewind
Button}
=
(Stop
Button)
PAUSE (Pause Button)
REC (Record Button}
PHONES (Headphone Jack)
BIAS FINE (Bias Fine Volume)
