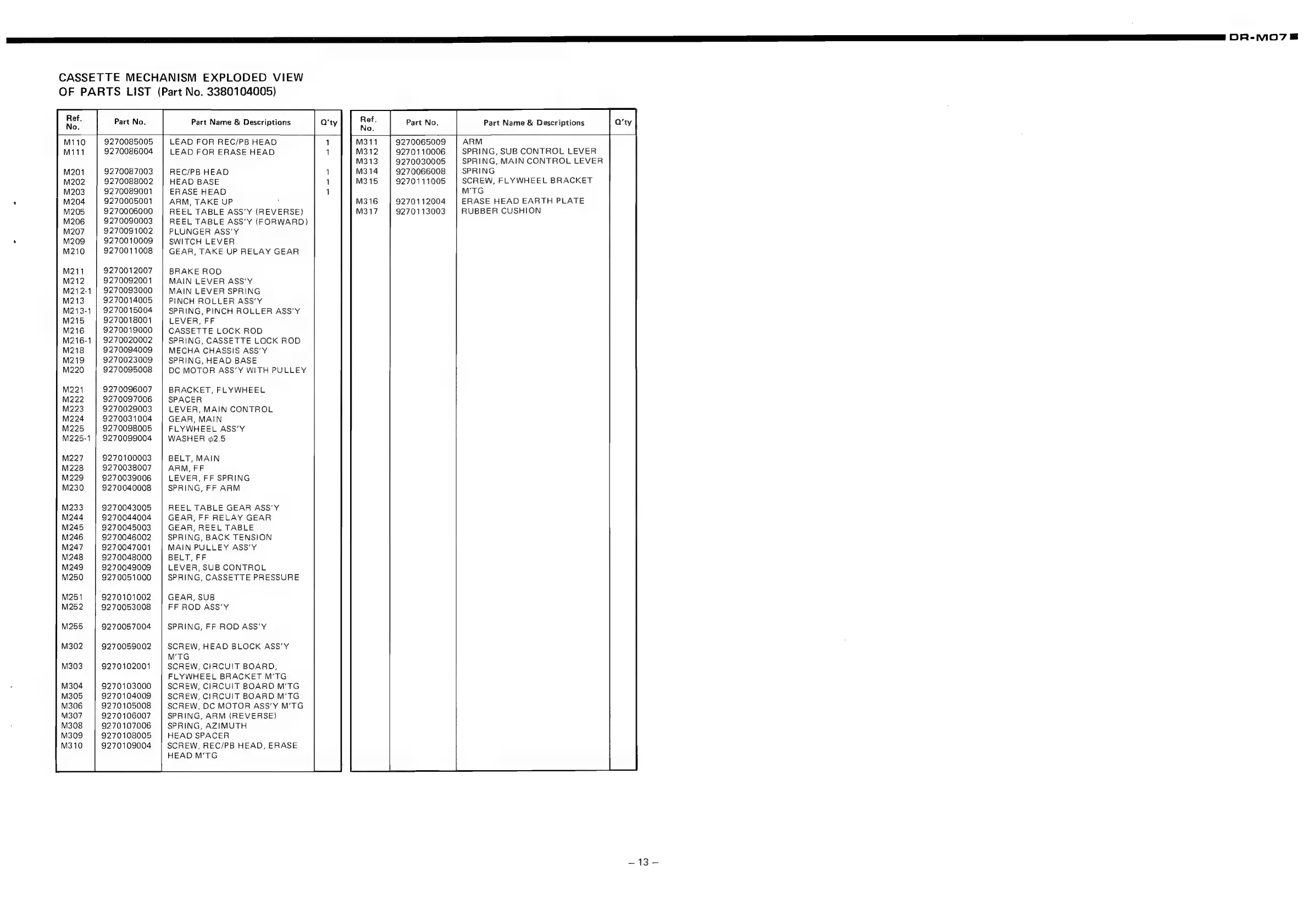

CASSETTE MECHANISM EXPLODED VIEW
OF PARTS LIST (Part No. 3380104005)
Part No.
Part Name & Descriptions
9270085005
9270086004
9270087003
9270088002
9270089001
‘ | 9270005001
9270006000
9270090003
9270091002
‘ 9270010009
9270011008
9270012007
9270092001
9270093000
9270014005
9270015004
9270018001
9270019000
9270020002
9270094009
9270023009
9270095008
9270096007
9270097006
9270029003
9270031004
9270098005
9270099004
9270100003
9270038007
9270039006
9270040008
9270043005
9270044004
9270045003
9270046002
9270047001
9270048000
9270049009
9270051000
9270101002
9270053008
9270057004
9270059002
9270102001
9270103000
9270104009
9270105008
9270106007
9270107006
9270108005
9270109004
LEAD FOR REC/PB HEAD
LEAD FOR ERASE HEAD
REC/PB HEAD
HEAD BASE
ERASE HEAD
ARM, TAKE UP :
REEL TABLE ASS'Y (REVERSE)
REEL TABLE ASS’Y (FORWARD)
PLUNGER ASS'Y
SWITCH LEVER
GEAR, TAKE UP RELAY GEAR
BRAKE ROD
MAIN LEVER ASS‘Y
MAIN LEVER SPRING
PINCH ROLLER ASS'Y
SPRING, PINCH ROLLER ASS'Y
LEVER, FF
CASSETTE LOCK ROD
SPRING, CASSETTE LOCK ROD
MECHA CHASSIS ASS’Y
SPRING, HEAD BASE
DC MOTOR ASS’Y WITH PULLEY
BRACKET, FLYWHEEL
SPACER
LEVER, MAIN CONTROL
GEAR, MAIN
FLYWHEEL ASS'Y
WASHER @2.5
BELT, MAIN
ARM, FF
LEVER, FF SPRING
SPRING, FF ARM
REEL TABLE GEAR ASS’Y
GEAR, FF RELAY GEAR
GEAR, REEL TABLE
SPRING, BACK TENSION
MAIN PULLEY ASS'Y
BELT, FF
LEVER, SUB CONTROL
SPRING, CASSETTE PRESSURE
GEAR, SUB
FF ROD ASS’Y
SPRING, FF ROD ASS'Y
SCREW, HEAD BLOCK ASS'Y
M'TG
SCREW, CIRCUIT BOARD,
FLYWHEEL BRACKET M'TG
SCREW, CIRCUIT BOARD M’TG
SCREW, CIRCUIT BOARD M’TG
SCREW, DC MOTOR ASS’Y M'TG
SPRING, ARM (REVERSE)
SPRING, AZIMUTH
HEAD SPACER
SCREW, REC/PB HEAD, ERASE
HEAD M‘TG
Part No.
Part Name & Descriptions
9270065009
9270110006
9270030005
9270066008
9270111005
9270112004
9270113003
ARM
SPRING, SUB CONTROL LEVER
SPRING, MAIN CONTROL LEVER
SPRING
SCREW, FLYWHEEL BRACKET
M'TG
ERASE HEAD EARTH PLATE
RUBBER CUSHION
