DR-MO7

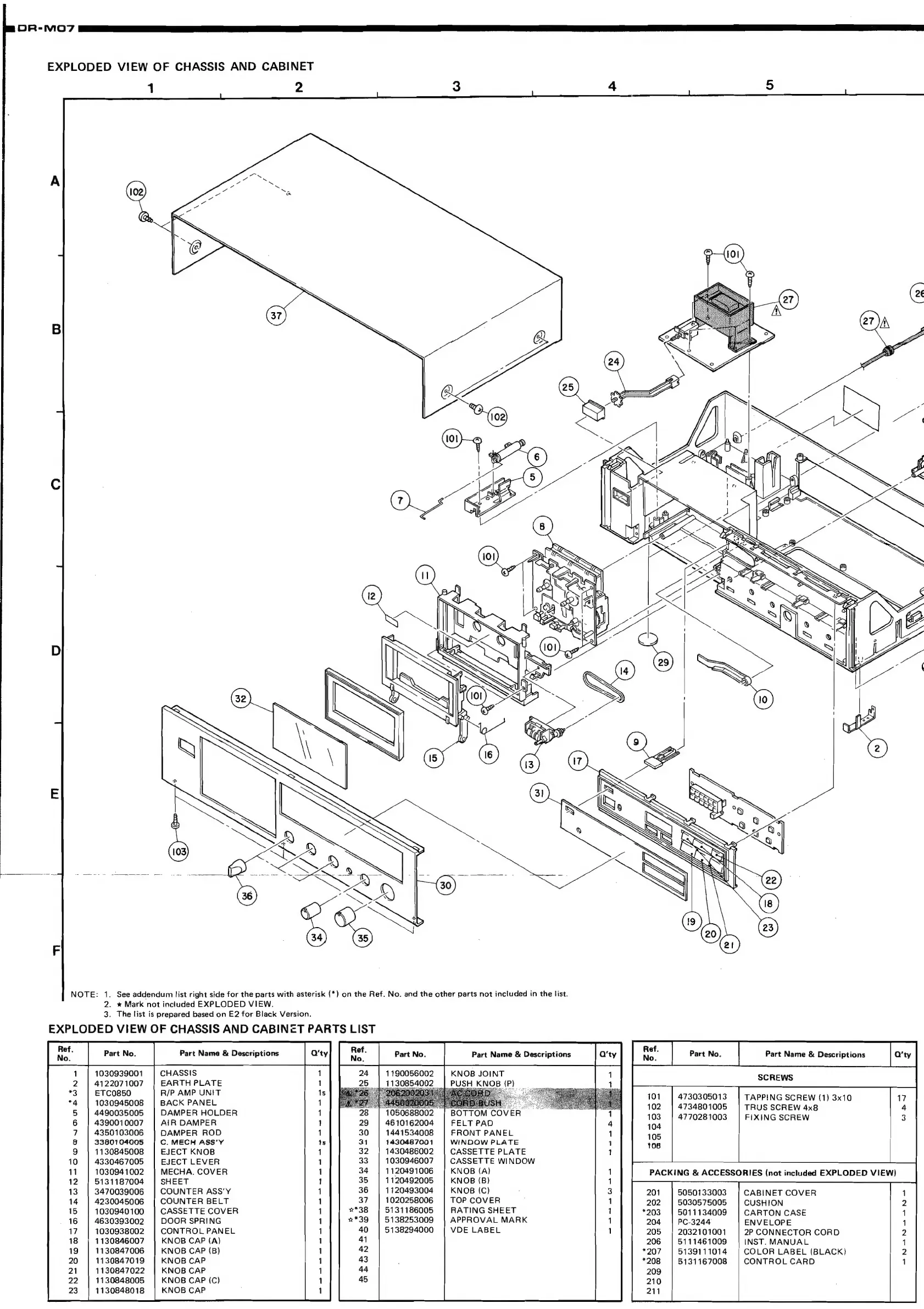

EXPLODED VIEW OF CHASSIS AND CABINET
1
2
3
4
5
NOTE: 1. See addendum list right side for the parts with asterisk (*) on the Ref. No. and the other parts not included in the list.
2. * Mark not included EXPLODED VIEW.
3. The list is prepared based on E2 for Black Version.
EXPLODED VIEW OF CHASSIS AND CABINET PARTS LIST
|
OMDAMRDMNABRWNH =
1030939001
4122071007
ETCO850
1030945008
4490035005
4390010007
4350103006
3380104005
1130845008
4330467005
103094 1002
5131187004
3470039006
4230045006 | COUNTER BELT TOP COVER 5030575005 | CUSHION
1030940100 | CASSETTE COVER 5131186005 RATING SHEET 5011134009 CARTON CASE
4630393002 | DOOR SPRING 5138253009 | APPROVAL MARK PC-3244 ENVELOPE
1030938002
1130846007
1130847006
1130847019
1130847022
1130848005
1130848018
CHASSIS
EARTH PLATE
R/P AMP UNIT
BACK PANEL
DAMPER HOLDER
AiR DAMPER
DAMPER ROD
C. MECH ASS'Y
EJECT KNOB
EJECT LEVER
MECHA. COVER
SHEET
COUNTER ASS'Y
CONTROL PANEL
KNOB CAP (A)
KNOB CAP (B)
KNOB CAP
KNOB CAP
KNOB CAP (C)
KNOB CAP
eh ee, es ee ke eS ee a ee et et
a
1190056002
1130854002
1050688002
4610162004
1441534008
1430487001
1430486002
1030946007
1120491006
1120492005
1120493004
1020258006
5138294000
KNOB JOINT
PUSH KNOB (P)
BOTTOM COVER
FELT PAD
FRONT PANEL
WINDOW PLATE
CASSETTE PLATE
CASSETTE WINDOW
KNOB {A}
KNOB (B)
KNOB {C)
VDE LABEL
Re | pare no, | ore peeaiuay
SCREWS
4730305013
4734801005
4770281003
TAPPING SCREW (1) 3x10
TRUS SCREW 4x8
FIXING SCREW
PACKING & ACCESSORIES (not included EXPLODED VIEW)
5050133003 CABINET COVER
2032101001
5111461009
5139111014
5131167008
2P CONNECTOR CORD
INST. MANUAL
COLOR LABEL (BLACK)
CONTROL CARD
