8

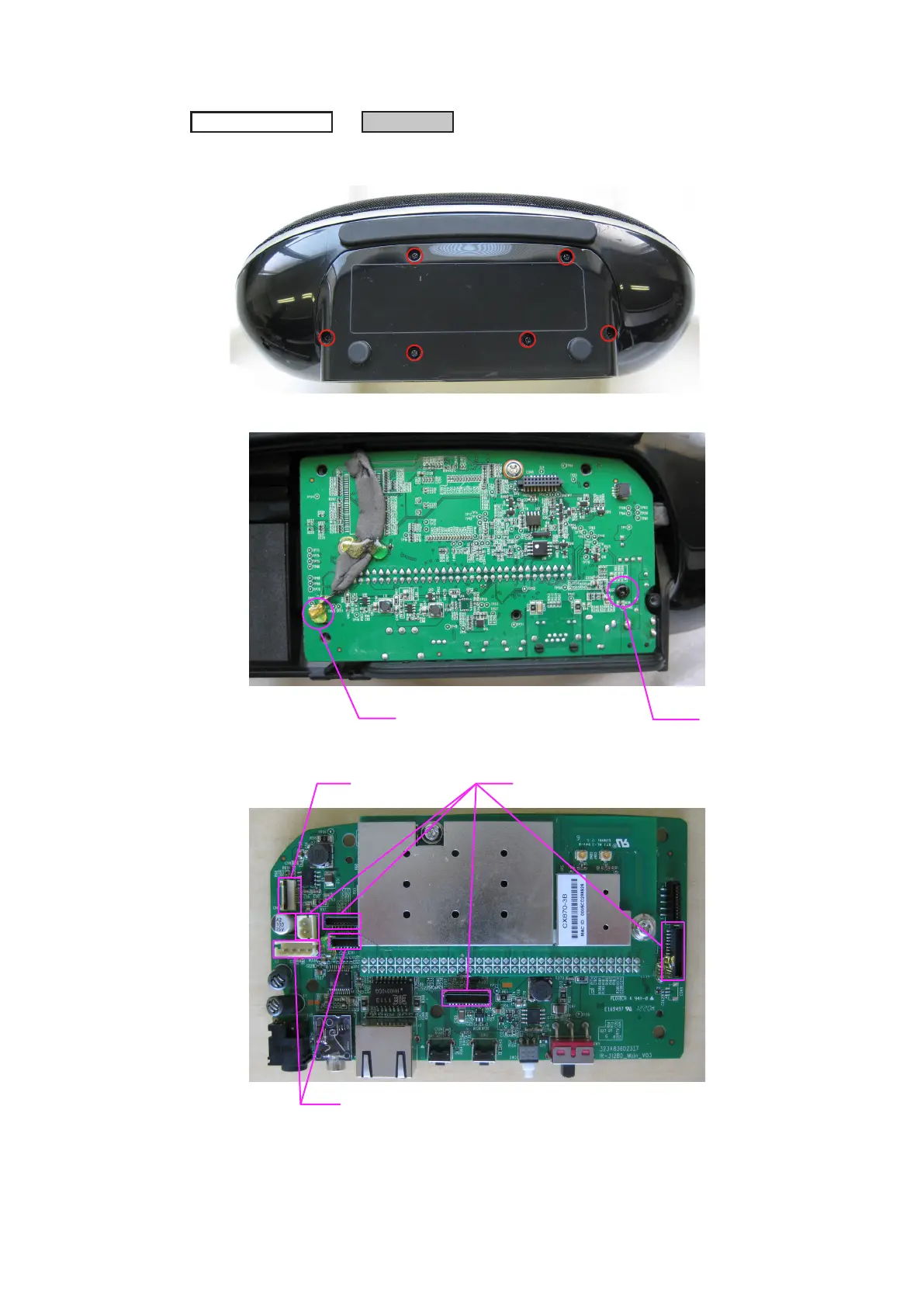

1.
MAIN PWB UNIT
(1)
Remove the screws of bottom cover
.
(2)
Remove the screw and wire (MCLK).
(3)
Remove the wire and FFC.
BOTTOM COVER
MAIN PWB
→
Proceeding :
Shooting direction: C
Shooting direction: C
Wire
Screw
Shooting direction: D
FFC
Wire
Wire
7
9
Table of Contents
Default Chapter
2
Table of Contents
2
Safety Precautions
3
Caution for Battery Pack
4
Note for Schematic Diagram
4
Technical Specifications
5
DIMENSION (MM)
5
Disassembly
6
Main Pwb Unit
8
Cx870 Module
9
Battery Module
10
Charger & Amplifier
11
Touch Key Pwb Unit
13
Dock Connector & Oled Assy
14
Speaker Driver
15
Special Mode
16
How to Enter Special Mode
16
Initialization Mode (Factory Reset)
17
Version Display Mode
17
Protection History Mode
18
DPMS Update Mode
18
Battery Info. Mode
19
Procedure for Upgrading the Version of the Firmware
20
Version Upgrade Procedure of Firmware
20
Trouble Shooting
23
Check 20V
23
Check 12V
23
Check VMCU
24
Check 3V3
24
Check 1V9
25
Check 1V2
25
Check 5V
26
Check ADSP_1V1
26
No Sound from Lch/Rch
27
Block Diagram
28
Power Block Diagram
29
Printed Wiring Boards
30
Amp
30
Ipod
30
Oled
31
Main
31
Touch
32
Schematic Diagrams (1/12)
33
Chapterai Unit
33
Amplifer Unit
34
Ipod UNIT
35
Power Unit
36
Connectors Unit
37
Mcu & Switch Unit
38
Dsp Unit
39
Adc Unit
40
Ethernet Unit
41
Touch Board Unit
42
Touch Pad Fpc Unit
43
Oled Unit
44
Wiring Diagram
45
Exploded View
46
Parts List of Exploded View
48
Packing View
49
Parts List of Packing & Accessories
50
Semiconductors
51
IC's
51
