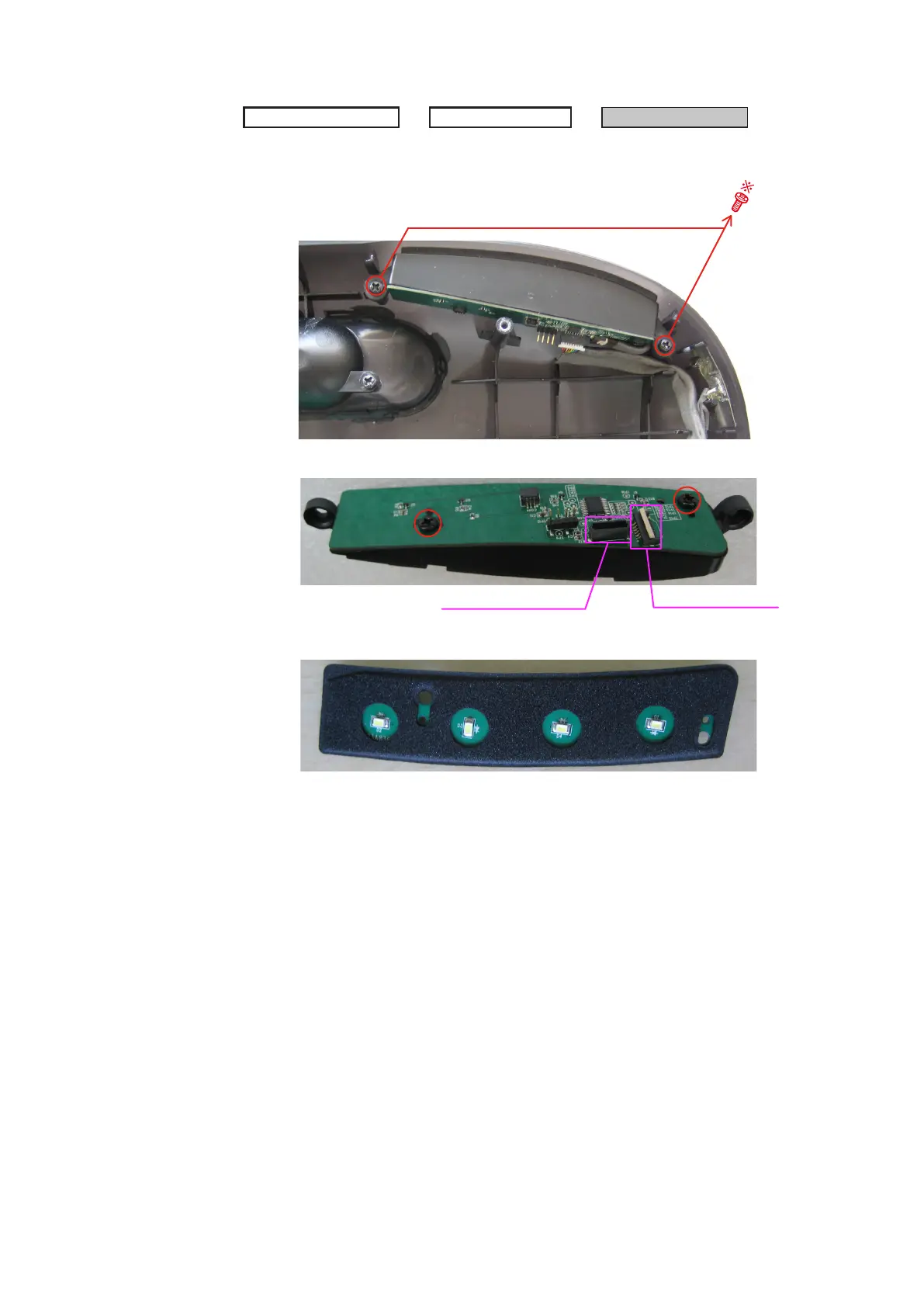

5. TOUCH KEY PWB UNIT
(1) Remove screws.
(2) Remove screws, wire and FPC.
PUNCHING METAL
→
FRONT CABINET
TOUCH KEY PWB
→
Proceeding :
Shooting direction: A
Wire connect to MAIN
FPC of touch sheet
