CONNECTIONS
",
'
~,,--
@=c(?
_
-<

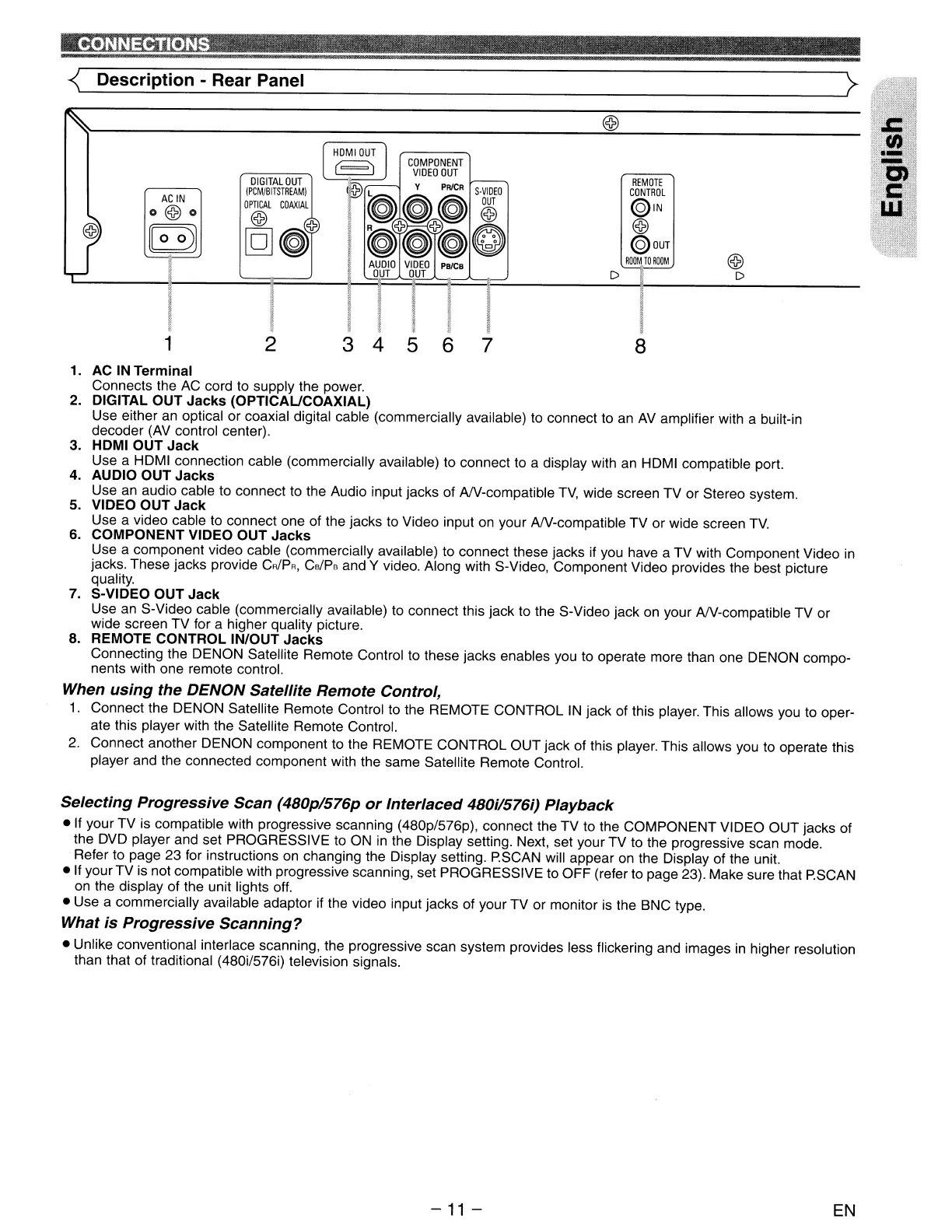

Description - Rear Panel
@
D
REMOTE
CONTROL
@IN
@
@OUT
ROOM
TO
ROOM
D I
7
I !I I
3 4 5 62
[
HOM
I
OUT
1
(§J
C81~~g~G~T
~O""IG=-ITA"""l""'OU-=T-"
r
~
(PCM/BITSTREAMI
Ii(?
~~L
~y
~PRlCR
S·VIDEO
OPTICAl
COAXiAl
I
~ ~
~
©
@
~
R
c(? c(?
~
[g](@)I'.
!'.EO!~
OUT OUT
I
1
ACIN
o@o
[23
I
J
1. AC IN Terminal
Connects the
AC
cord to supply the power,
2.
DIGITAL OUT
Jacks
(OPTICAUCOAXIAL)
Use either an optical or coaxial digital cable (commercially available) to connect to an
AV
amplifier with a built-in
decoder
(AV
control center).
3. HDMI OUT
Jack
Use a HDMI connection cable (commercially available) to connect to a display with an HDMI compatible port.
4. AUDIO OUT
Jacks
Use an audio cable to connect to the Audio input jacks of AN-compatible
TV,
wide screen TV or Stereo system.
5.
VIDEO OUT
Jack
Use a video cable to connect one of the jacks to Video input on your AN-compatible TV or wide screen
TV.
6.
COMPONENT VIDEO OUT
Jacks
Use a component video cable (commercially available) to connect these jacks if you have a TV with Component Video in
jacks. These jacks provide
CRlPR,
CslPB
and Y video. Along with S-Video, Component Video provides the best picture
quality.
7.
S-VIDEO OUT
Jack
Use an S-Video cable (commercially available) to connect this jack to the S-Video jack on your AN-compatible TV or
wide screen TV for a higher quality picture.
8.
REMOTE CONTROL IN/OUT
Jacks
Connecting the DENON Satellite Remote Control to these jacks enables you to operate more than one DENON compo-
nents with one remote control.
When
using
the DENON
Satellite
Remote
Control,
1.
Connect the DENON Satellite Remote Control to the REMOTE CONTROL
IN
jack of this player. This allows you to oper-
ate this player with the Satellite Remote Control.
2.
Connect another DENON component to the REMOTE CONTROL OUT jack of this player. This allows you to operate this
player and the connected component with the same Satellite Remote Control.
Selecting Progressive
Scan
(480p/576p
or
Interlaced
480i/576i)
Playback
-If
your TV is compatible with progressive scanning (480p/576p), connect the TV to the COMPONENT VIDEO OUT jacks of
the DVD player and set PROGRESSIVE to ON
in
the Display setting. Next, set your TV to the progressive scan mode.
.Refer to page 23 for instructions on changing the Display setting. PSCAN will appear on the Display of the unit.
-
If
your TV is not compatible with progressive scanning, set PROGRESSIVE to OFF (refer to page 23). Make sure that PSCAN
on the display of the unit lights off.
- Use a commercially available adaptor if the video input jacks of your TV or monitor is the BNC type.
What
is
Progressive
Scanning?
- Unlike conventional interlace scanning, the progressive scan system provides less flickering and images
in
higher resolution
than that of traditional (480i/576i) television signals.
-
11
-
EN
