DVD-5900/DVD-A11

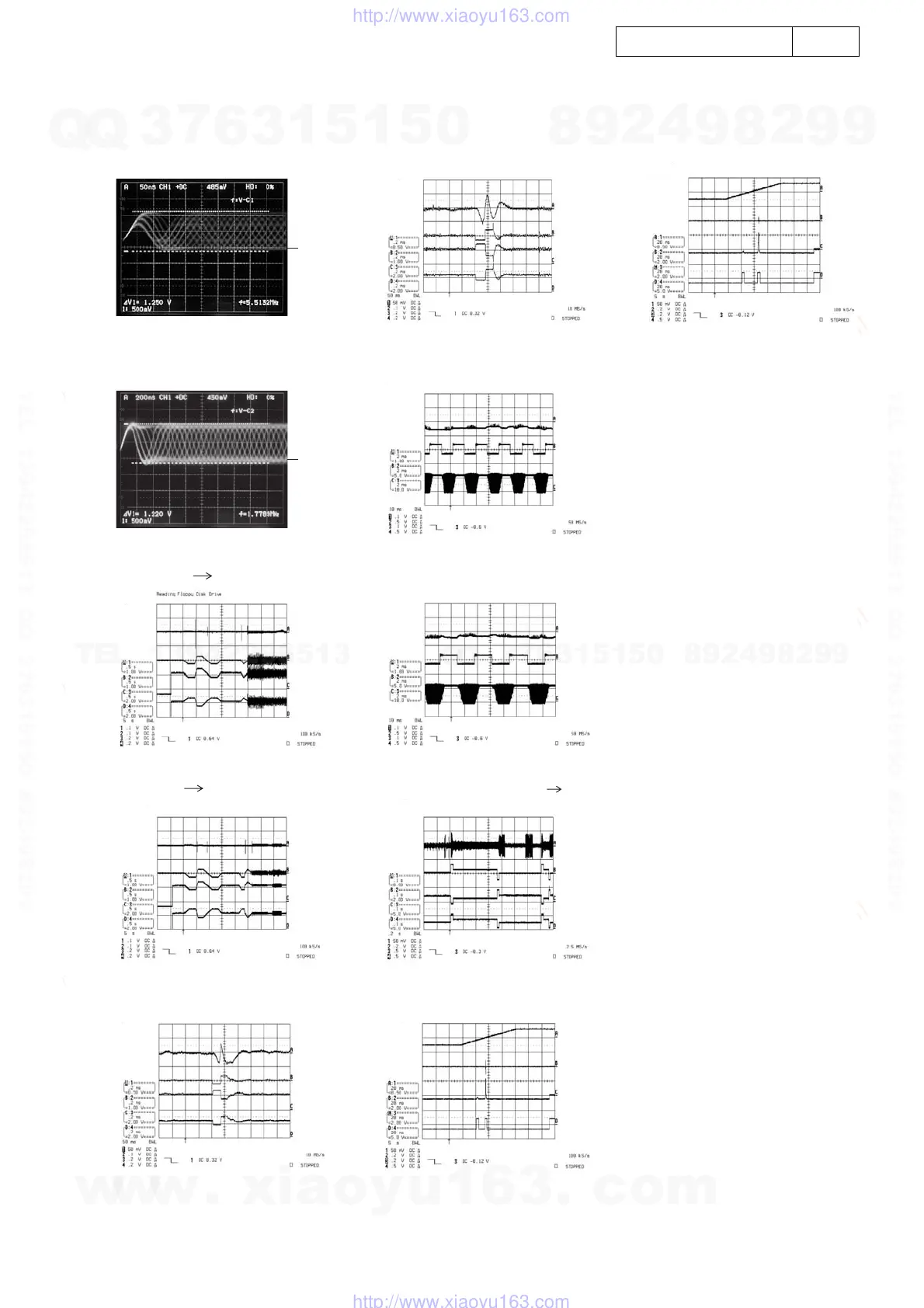

WAVEFORMS
●
GU-3512MAINP.W.B.
DVD PLAY CD PLAY DISC DETECT (CD)
DVD PLAY (INNER)
CD PLAY (INNER)
DISC DETECT (DVD)
SEARCH TO OUTER CHAPTER (INNER OUTER)
①RFAC
①RFAC
②FE
③FSCON
④F+
⑤F
-
②FE
③FSCON
④F+
⑤F
-
⑥TE
⑦TSCON
⑧T+
⑨T
-
⑥TE
⑦TSCON
⑧T+
⑨T
-
⑥TE
⑬SLED
⑭SL+
⑮SL
-
③FSCON
②FE
⑯PI
⑰MIRR
③FSCON
②FE
⑯PI
⑰MIRR
⑩DMO
VC16
⑪FG
⑫A3
⑩DMO
⑪FG
⑫A3
Disc: TDV-520A
CD PLAY Disc: TCD-784
DVD LOADING PLAY
CD LOADING PLAY
DVD PLAY
VC16
