9

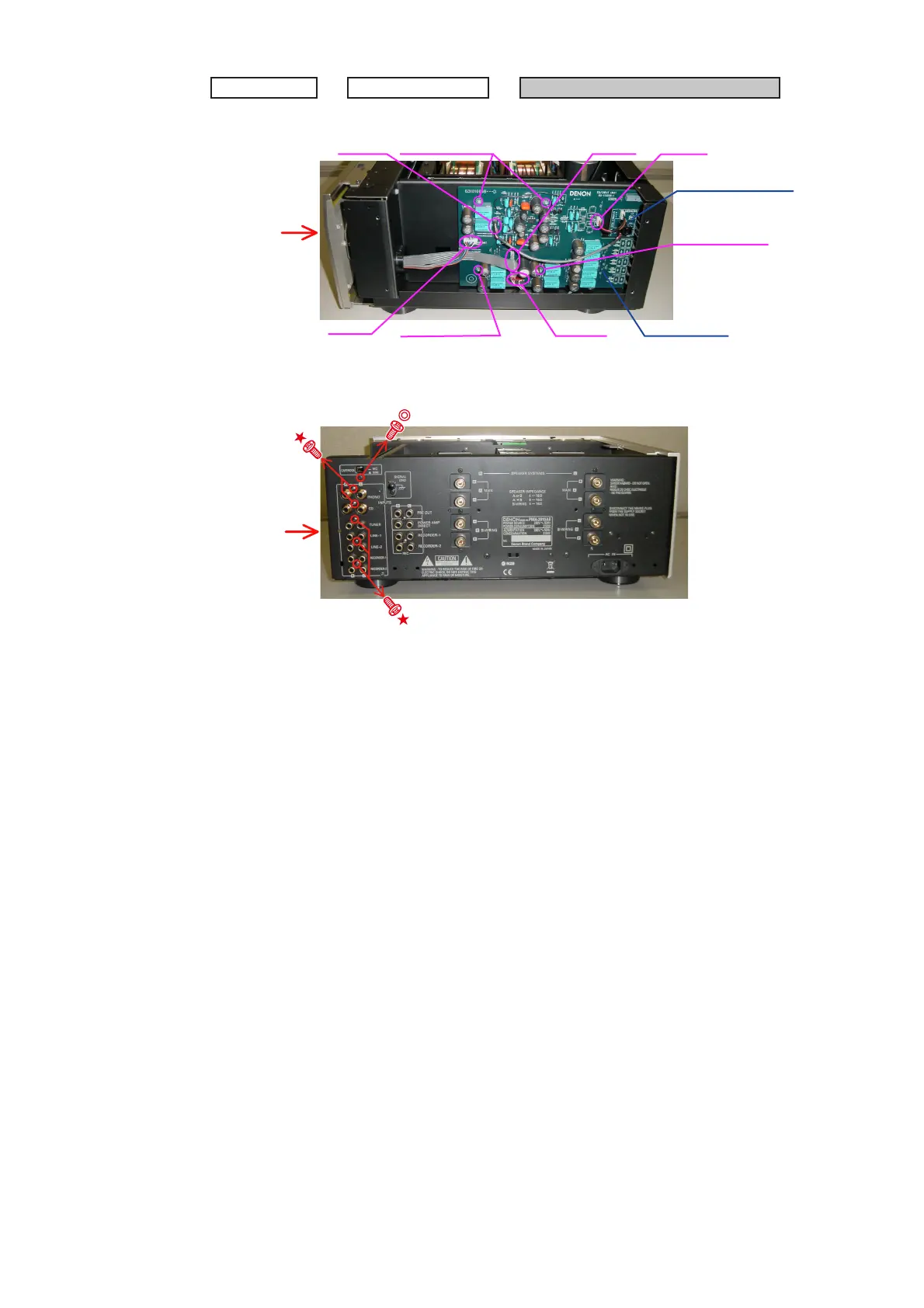

2. INPUT UNIT and PH/CD TER.UNIT
(1) Disconnect the connector wires.
(2) Remove the screws
Proceeding : TOP COVER
SODE COVER (R)
→
INPUT UNIT and PH/CD TER.UNIT
→
CY031
CX063
CY032 CX141PCB HOLDER
CX061
PCB HOLDER
PCB HOLDER
INPUT UNIT
PH/CD TER.UNIT
Direction of photograph: C
Direction of photograph: C
INPUT UNIT
INPUT UNIT
PH/CD TER.UNIT
