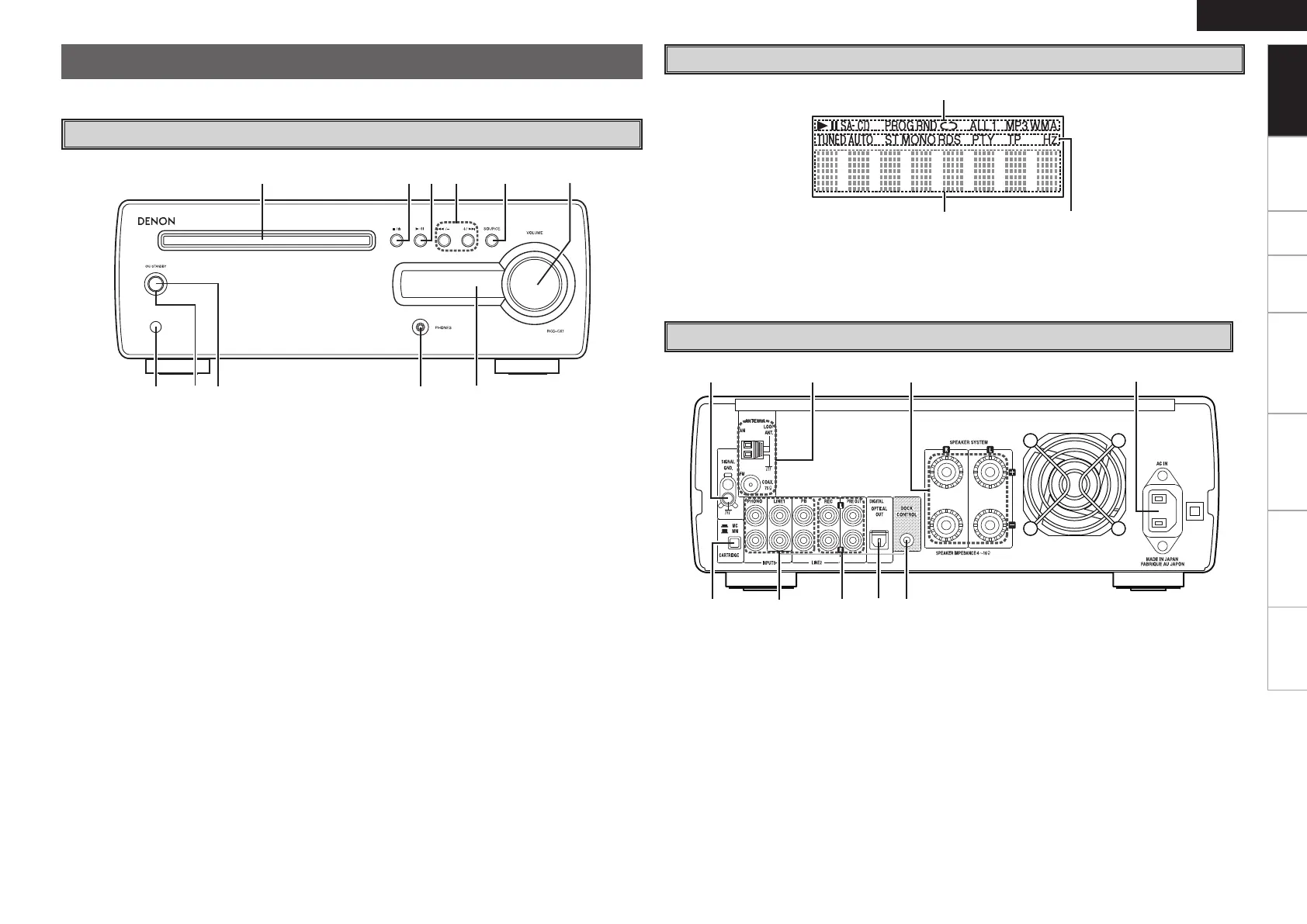

Denon RCD-CX1 - Part Names and Functions; Front Panel; Display; Rear Panel

Connections Setup Playback Setting the Timer Other Functions Troubleshooting
ENGLISH
Specifications

For buttons not explained here, see the page indicated in parentheses ( ).
q Remote control sensor ································· (4)
w Power indicator ··········································· (14)
e Power operation button
(ON/STANDBY) ····································· (13, 14)
r Headphones jack (PHONES) ······················ (15)
t Display
y Master volume control knob (VOLUME) ····· (15)
q Information display
Various information is displayed here, depending
on the operation mode.
Front Panel
Display
w Tuner reception mode indicators ······(19 ~ 22)
e Mode indicators ···························· (16 ~ 19, 23)
Rear Panel
q CARTRIDGE selection switch ···················· (10)
w Analog audio input connectors ············(10, 11)
e Analog audio output connectors ········(10, 11)
r Digital audio output connector
(OPTICAL OUT) ············································(11)
t DOCK CONTROL jack ································· (10)
y AC inlet (AC IN) ··········································· (12)
u Speaker terminals (SPEAKER SYSTEM) ····· (9)
i FM/AM antenna terminals ························· (12)
o SIGNAL GND terminal ······························· (10)
u SOURCE button ·········································· (15)
i Reverse-skip/Forward-skip buttons
(8/–, +/9) ······································· (16, 19)
o Play/Pause button (1/3) ··························· (16)
Q0 Stop / Disc tray open/close button
(2/5) ···························································· (14)
Q1 Disc tray ························································· (3)
q w e r t
yuioQ0Q1
q
e
w
q
o i u y
w e r t
Getting Started
Part Names and Functions
