8
8UD-M31

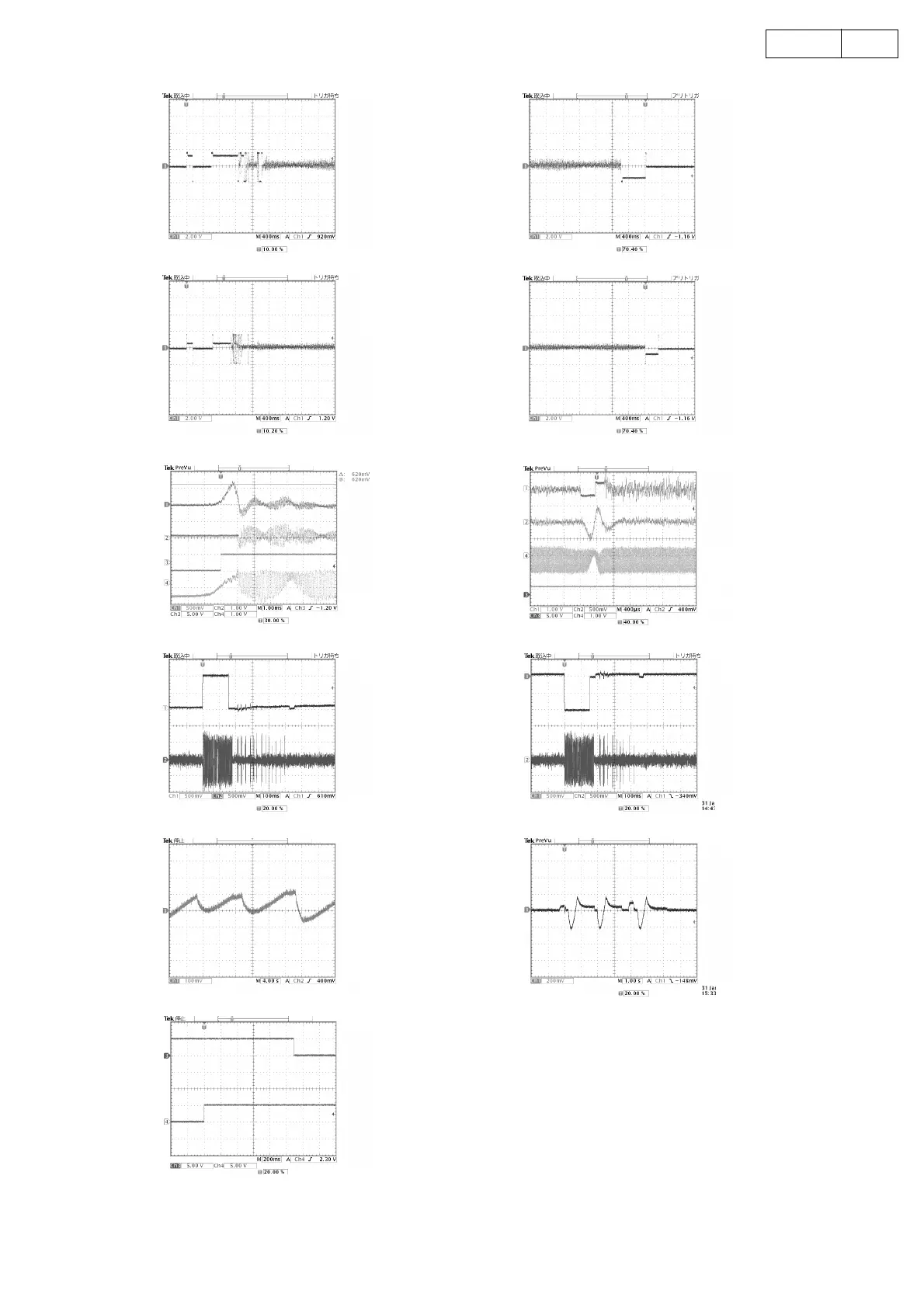

WAVE-FORMS OF EACH POINT
SP
When 12 cm DISC
start
SP
When 8 cm DISC
start
SL
TE
Track search
(when forward)
SL
During PLAY
OPEN
CLOSE
When the tray
OPEN
SP
When 12 cm DISC
stop
SP
When 8 cm DISC
stop
TD
TE
RF
DRF
During PAUSE
SL
TE
Track search
(when reverse)
FD
Focus search
(no DISC)
FE
TE
DRF
RF
When focus
servo on
