Depa DH50-FA - Series DH-UE, Size 25-50 Torque Values; Series SF, Size 25-50 Torque Values

46
DEPA
®
Air Operated Diaphragm Pumps
Pos. 1
Pos. 3
Pos. 5
Pos. 4
pos. 2
Pos. 7
Pos. 4
Pos. 5
Pos. 3
Pos. 2
Pos. 7

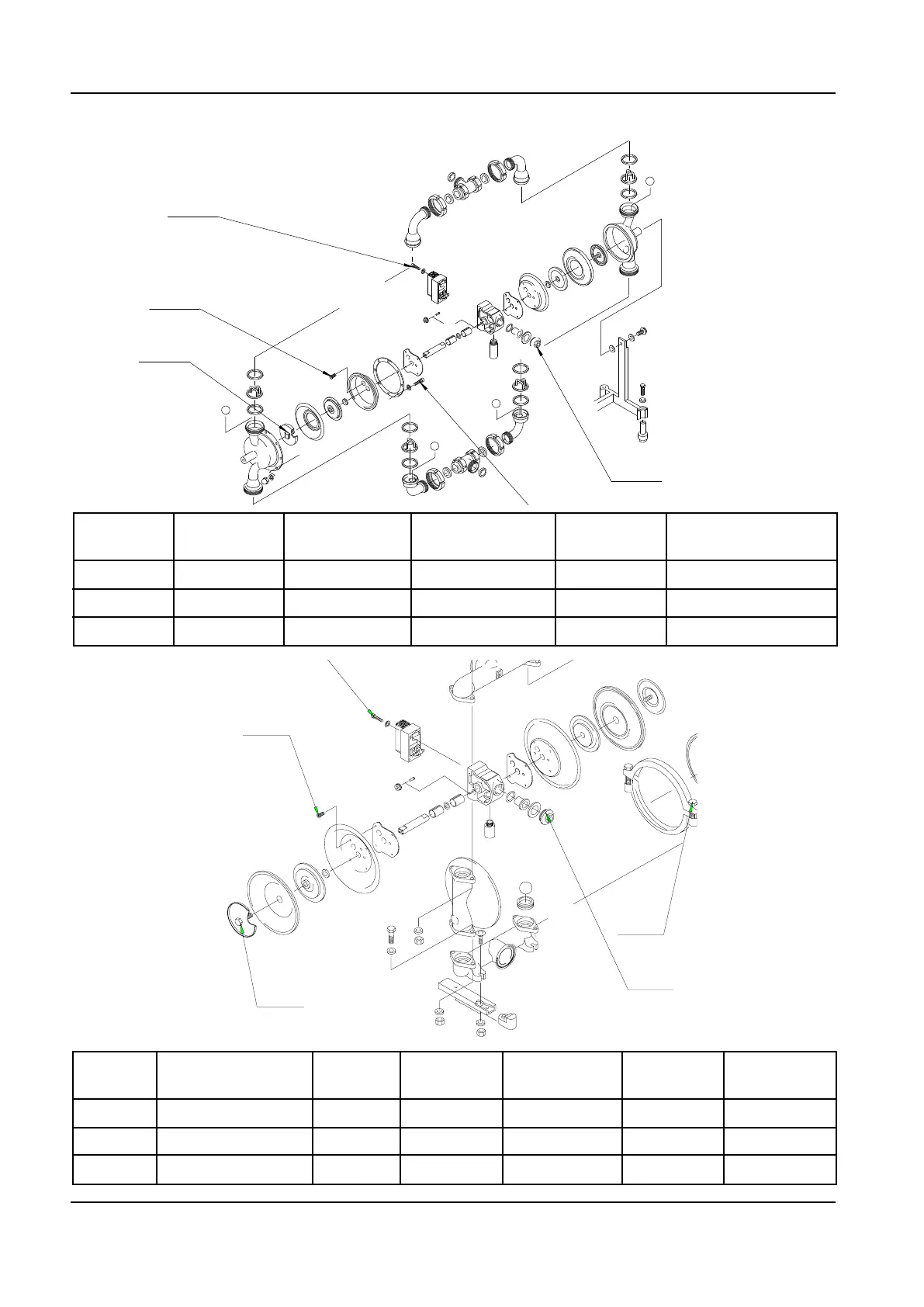

Tightening torques series DH-UE,
size 25-50
Tightening torques series SF,
size 25-50
Pump size Air inlet Air valve Piston Air chamber Pump chamber /
Pos. 2 Pos. 3 Pos. 4 Pos. 5 Flange, Pos. 7
DH25-UE 50 Nm 8 Nm 90 Nm 20 Nm 25 Nm
DH40-UE 50 Nm 8 Nm 90 Nm 20 Nm 25 Nm
DH50-UE 85 Nm 8 Nm 150 Nm 39 Nm 49 Nm
Pump size Suction / Discharge Air inlet Air valve Piston Air chamber Clamp band
manifold, Pos. 1 Pos. 2 Pos. 3 Pos. 4 Pos. 5 Pos. 7
 DL25-SF 10Nm 50Nm 8Nm 70Nm 20Nm max.23Nm
 DL40-SF 25Nm 50Nm 8Nm 90Nm 20Nm max.23Nm
 DL50-SF 49Nm 85Nm 8Nm 150Nm 39Nm max.23Nm
