Depa DH50-FA - Series M, Size 15 Torque Values; Series M, Size 25-80 Torque Values

47
DEPA
®
Air Operated Diaphragm Pumps
Pos. 1
Pos. 7
Pos. 7
Pos. 4
Pos. 6
Pos. 6
Pos. 4
Pos. 1
Pos. 1
Pos. 7
Pos. 7
Pos. 4
Pos. 3
Pos. 2
Pos. 5
Pos. 4
Pos. 1
Pos. 1

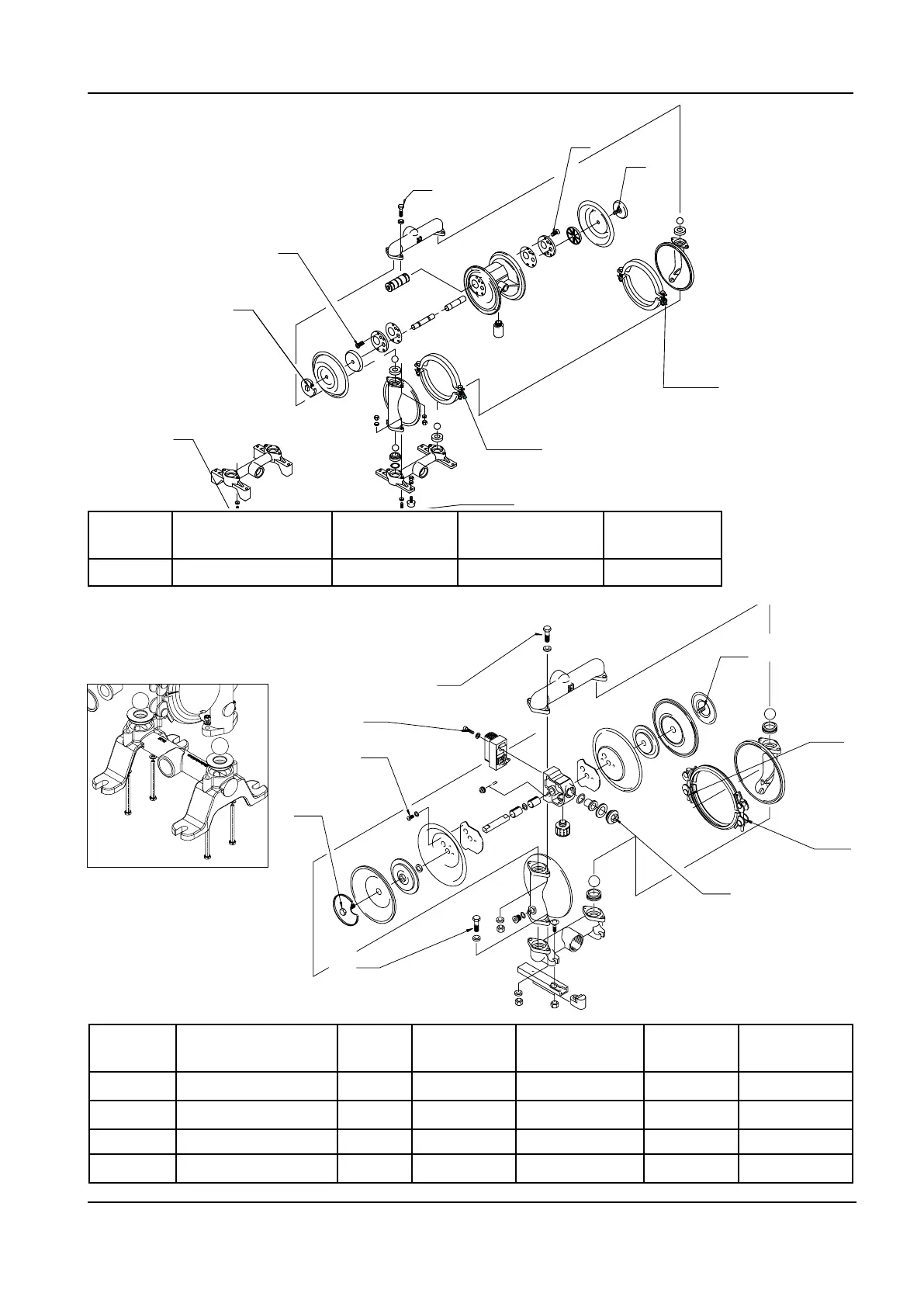

Tightening torques series M,
size 15
Tightening torques series M,
size 25-80
Pos. 1
Pos. 2
Pos. 4
Pos. 5
Pos. 7
R
Pump size Suction / Discharge Air inlet Air valve Piston Air chamber Clamp band
manifold, Pos. 1 Pos. 2 Pos. 3 Pos. 4 Pos. 5 Pos. 7
 DL25-M 25Nm 50Nm 8Nm 70Nm 20Nm max.23Nm
 DL40-M 25Nm 50Nm 8Nm 90Nm 20Nm max.23Nm
 DL50-M 49Nm 85Nm 8Nm 150Nm 39Nm max.23Nm
 DL80-M 49Nm 85Nm 8Nm 150Nm 39Nm max.23Nm
Pump size Suction / Discharge Piston Centre block cover Clamp band
manifold, Pos. 1 Pos. 4 Pos. 6 Pos. 7
 DL15-M 7Nm 6Nm 3Nm max.23Nm
