Depa DH50-FA - Series P, Typ DH, Size 50 Torque Values; Series M, Type DH-FA;SA;SS, Size 15 Torque Values

49
DEPA
®
Air Operated Diaphragm Pumps
Pos. 7
Pos. 4
Pos. 6
Pos. 2
Pos. 1
Pos. 1

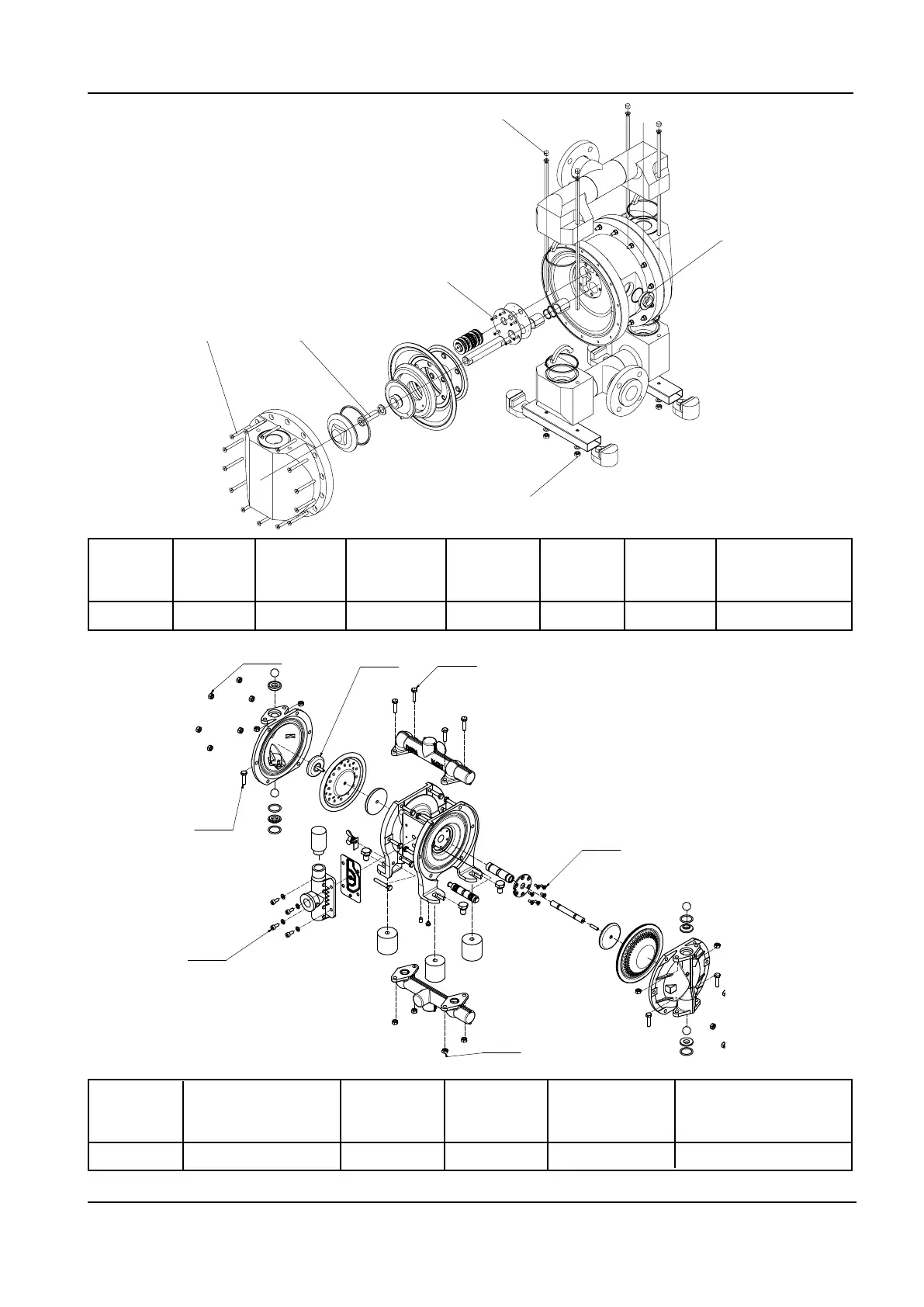

Tightening torques series P, Typ DH,
size 50
Pump size Annchor Air inlet Air valve One piece Piston Centre block Pump chamber/
rod diaphragm cover Centre block
Pos. 1 Pos. 2 Pos. 3 Pos. 4 Pos. 4 Pos. 6 Pos. 7
DH50-P 35 Nm 85 Nm 8 Nm - 150 Nm 5,5 Nm 12 Nm
Tightening torques series M,
Type DH-FA /SA/SS
Size 15
Pump size Suction / Discharge External Piston rod Centre block Pump chamber
manifold air valve cover
Pos. 1 Pos. 3 Pos. 4 Pos. 6 Pos. 7
DH15-FA 9 Nm 8 Nm 6 Nm 3 Nm 9 Nm
R
Pos. 1
Pos. 6
Pos. 7
Pos. 3
Pos. 4
Pos. 7
Pos. 1
Pos. 1
