Depa DH50-FA - Series M, Type DH-FA;SA;SS, Size 25-80 Torque Values

50
DEPA
®
Air Operated Diaphragm Pumps

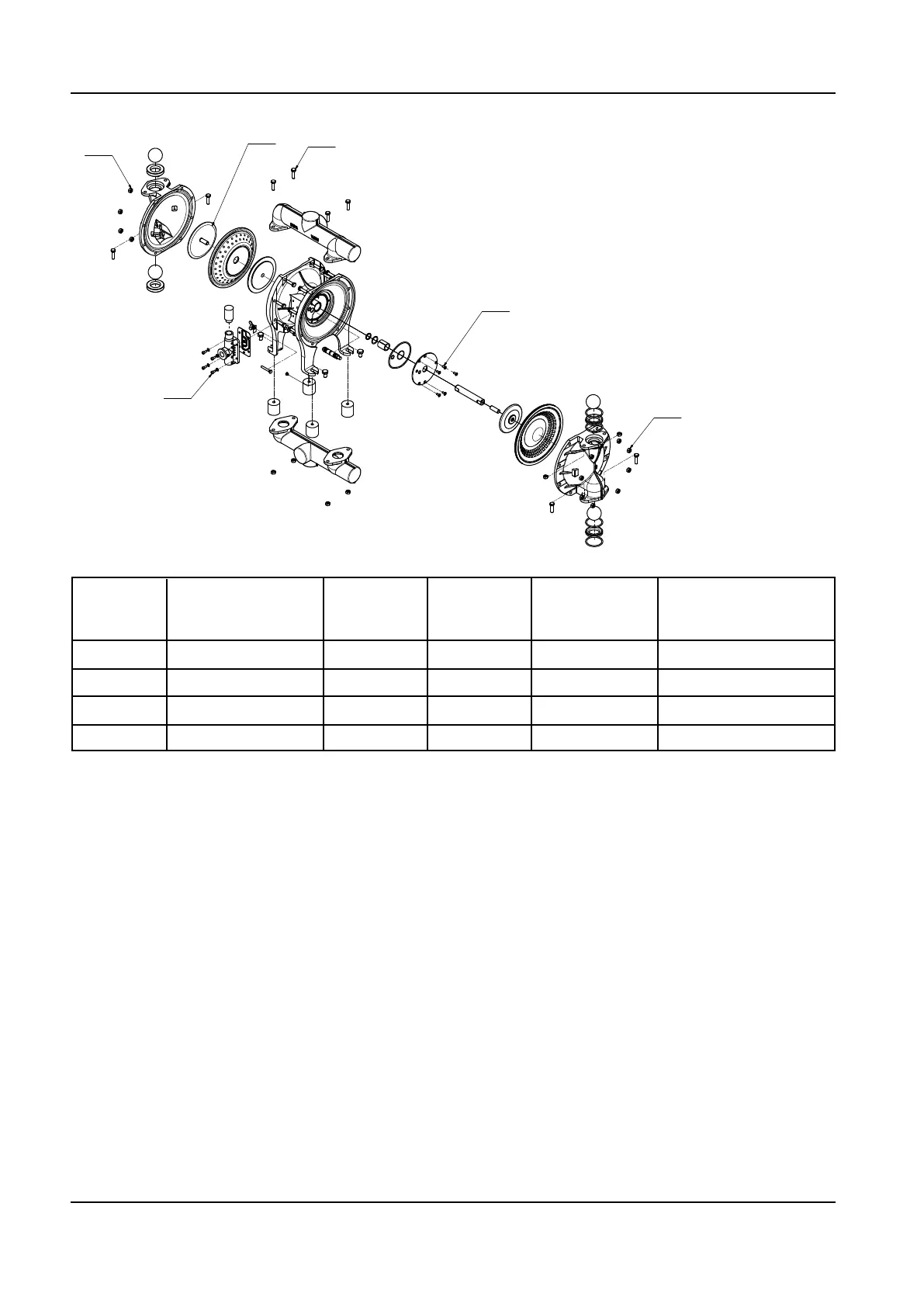

Tightening torques series M, Type DH-FA /SA/SS
Size 25-80
Pos. 7
Pos. 4
Pos.1
Pos.6
Pos.7
Pos.3
Pump size Suction / Discharge External Piston rod Centre block Pump chamber
manifold air valve cover
Pos. 1 Pos. 3 Pos. 4 Pos. 6 Pos. 7
DH25-FA 25 Nm 8 Nm 70 Nm 5 Nm 25 Nm
DH40-FA 25 Nm 8 Nm 90 Nm 5 Nm 25 Nm
DH50-FA 50 Nm - 150 Nm 5 Nm 50 Nm
DH80-FA 50 Nm - 150 Nm 5 Nm 50 Nm
