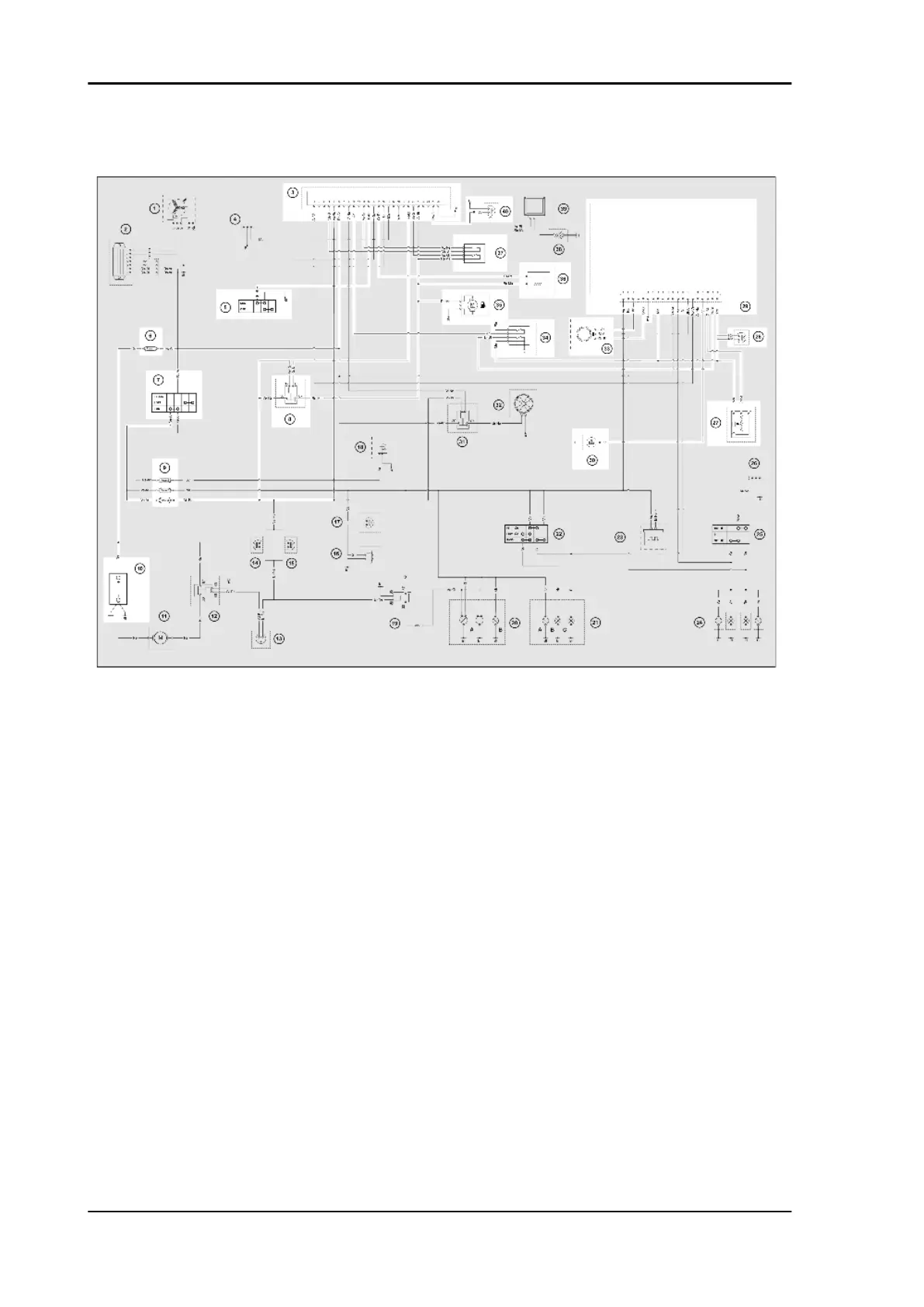

Level indicators and enable signals section
3. Injection electronic control unit
5. Engine stop switch
6. Main fuse
7. Key switch
8. Injection load remote control
9. Auxiliary fuses
10. Battery
27. Fuel level transmitter
28. Scroll switch
29. Instrument panel
30. Oil pressure sensor
33. Speed sensor
34. Engine temperature sensor
35. Fuel pump
36. Fuel injector
37. Lambda probe
40. Fall sensor
