2. If the tank is emptied with the engine off (with an external pump), when the vehicle is started, the
gauge shows the fuel level in the tank before the emptying. In this case, also wait 80 seconds to read
the true level.
This happens because the multifunction digital computer has saved in its memory the fuel level in the
tank at the moment the key was turned to ''OFF''; when the battery is first attached, there is no level
stored in the memory and the tank is emptied by means of an external pump, the computer is not able
to detect it.
Connectors
Dashboard
PINOUT

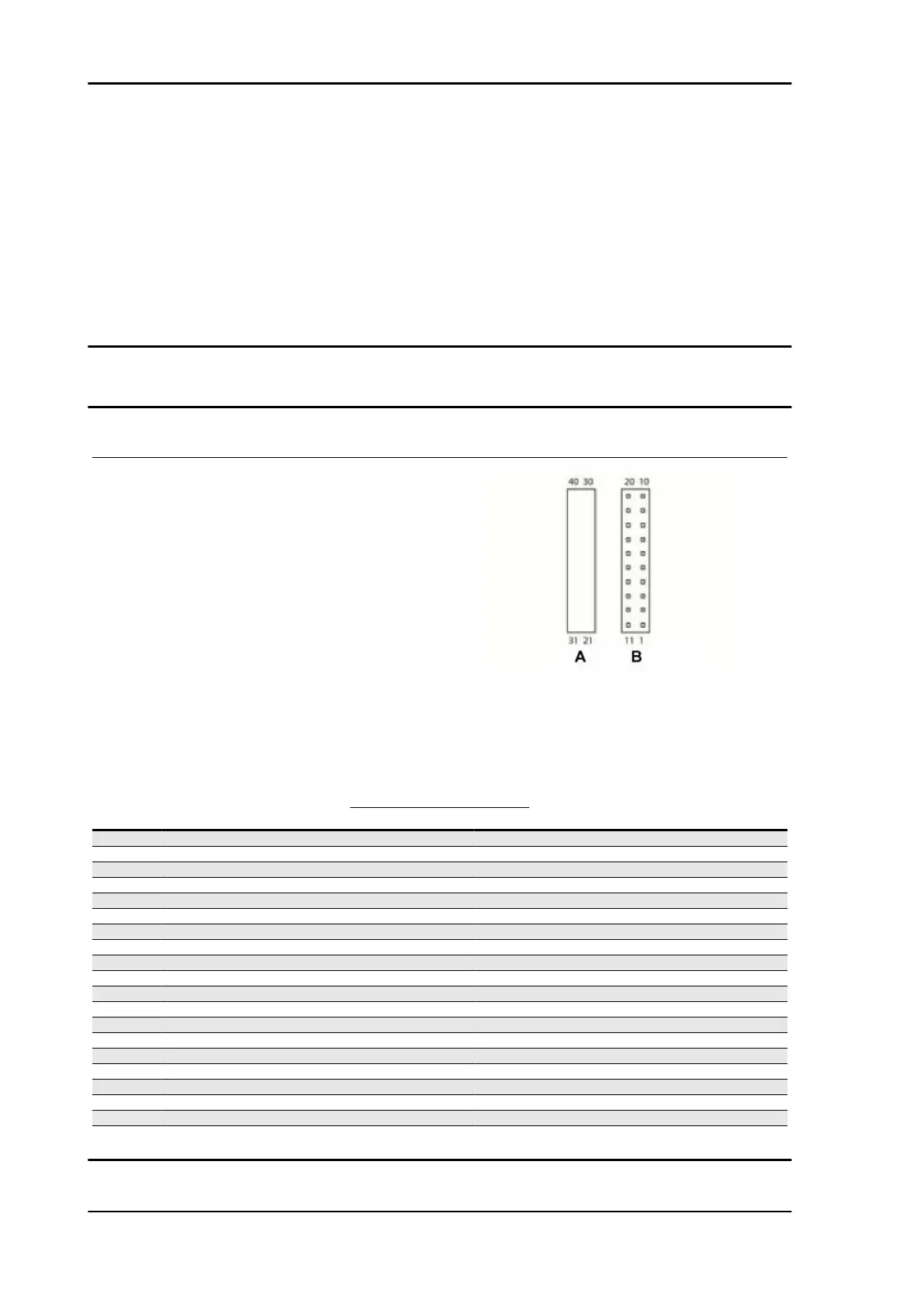

The connector diagram seen on the instrument
panel and the relevant pinout are shown in the fig-
ure.
The numbers are also stamped on the plastic part
of the connectors and also on the connector body.
KEY:
A: Black
B: Grey
CONNECTOR PINOUT
Specification Desc./Quantity
1 Key Positive
2 Right indicator input
3 Speed sensor power supply
4 RPM
5 Speed sensor ground lead
6 General grounding
7 Neutral input
8 Function grounding
9 Function grounding (optional)
10 Function grounding (optional)
11 Battery Positive
12 Left indicator input
13 High-beam lights input
14 Speed sensor input
15 EFI input
16 K Line
17 Oil pressure sensor
18 Fuel Level Sensor
19 Water Temperature Sensor
20 Mode
Electrical system
ELE SYS - 72
