Derbi Rambla 250 - Devices and Accessories

Ar: Orange Az: Sky blue Bi: White Bl: Blue Gi: Yellow Gr: Grey Ma: Brown Ne: Black Ro: Pink Rs:
Red Ve: Green Vi: Purple

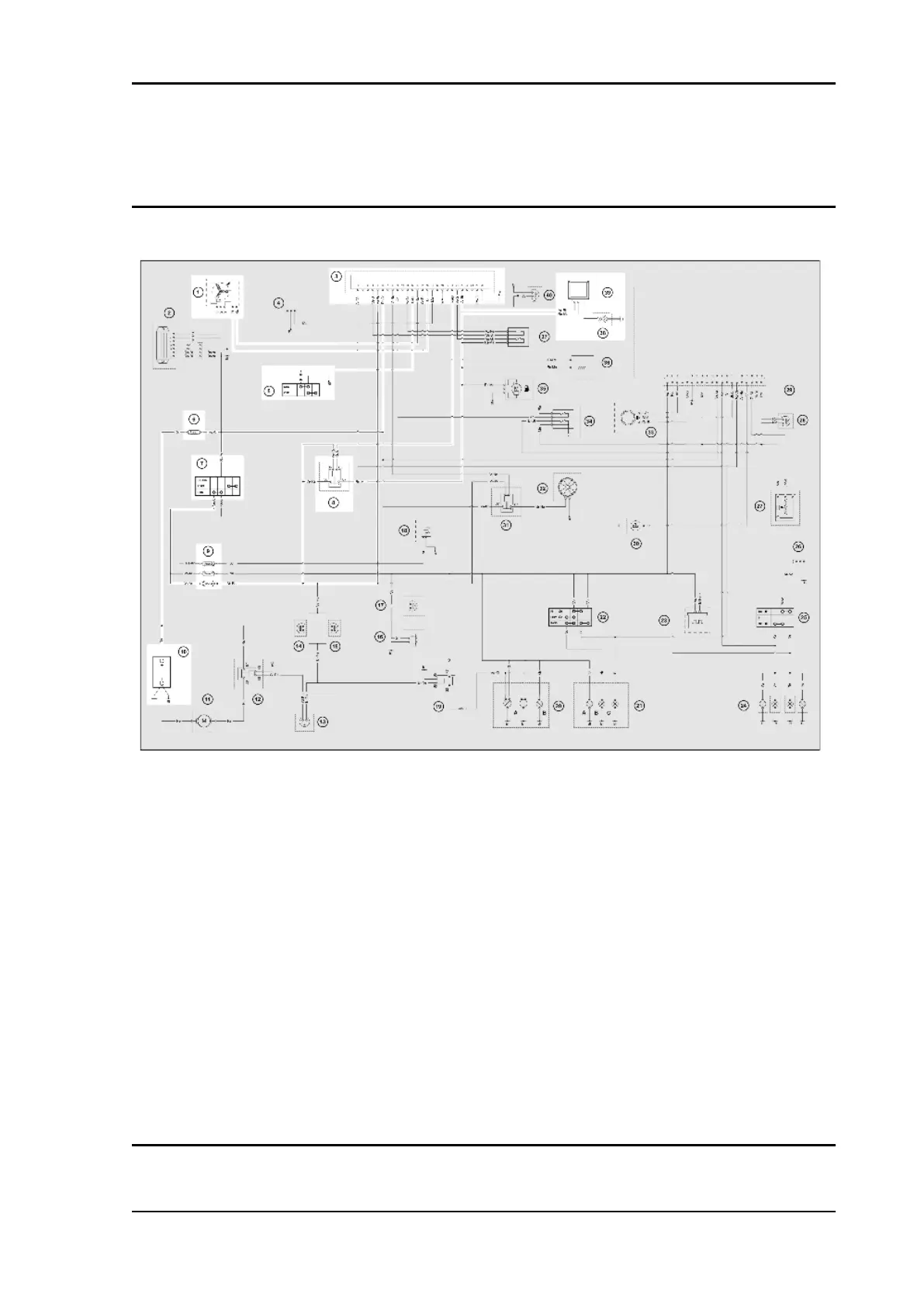

Devices and accessories
1. Magneto flywheel-Pick up
3. Injection electronic control unit
5. Engine stop switch
6. Main fuse
7. Key switch
8. Injection load remote control
9. Auxiliary fuses
10. Battery
38. Spark plug
39. HV coil
Key
Ar: Orange Az: Sky blue Bi: White Bl: Blue Gi: Yellow Gr: Grey Ma: Brown Ne: Black Ro: Pink Rs:
Red Ve: Green Vi: Purple
Electrical system
ELE SYS - 65
