If the instrument detects a null resistance (short
circuit), all the segments light up but no other in-
dication is shown.

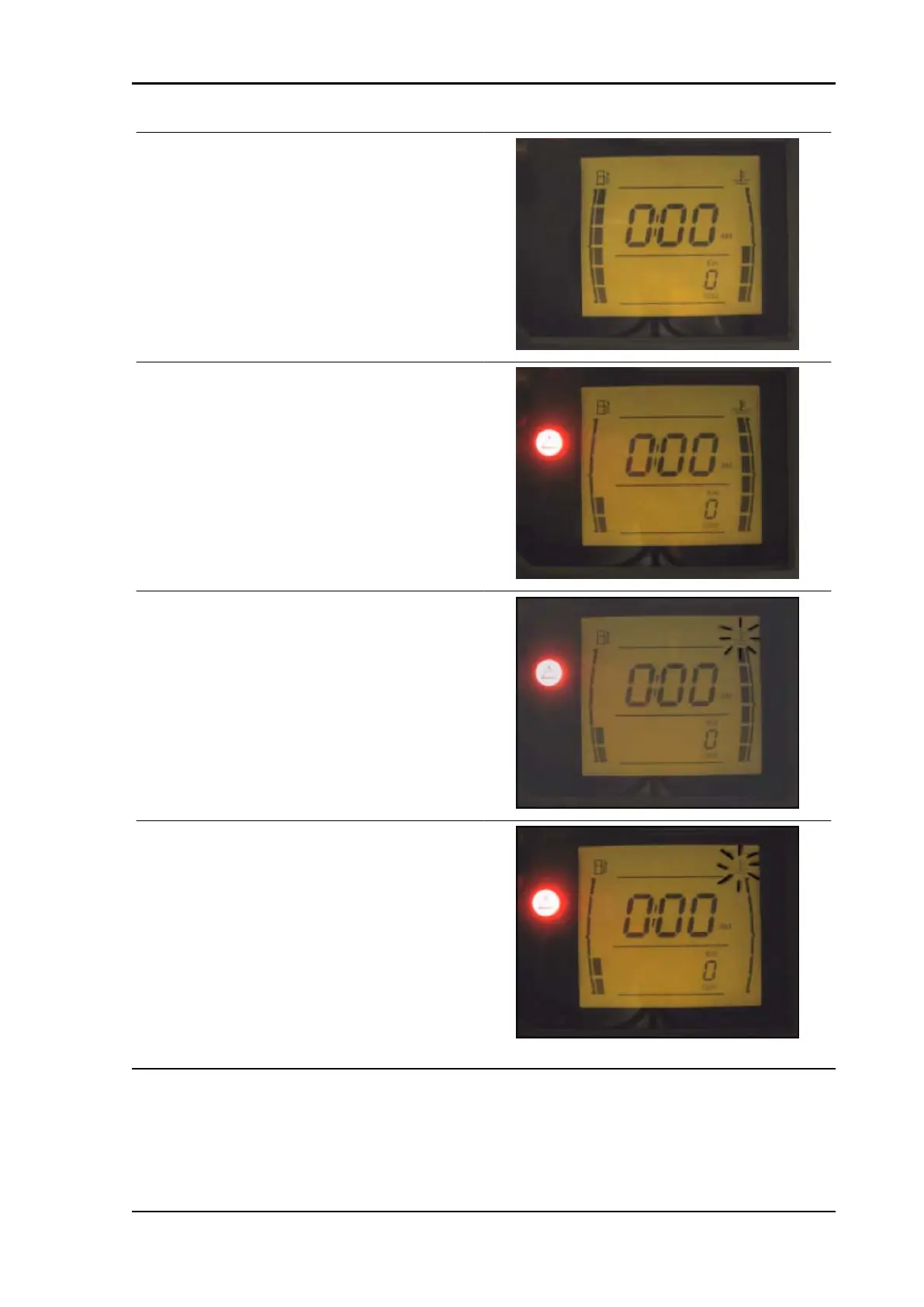

Temperature sensor
The general alarm warning light turns on when the
temperature is above 115°C (approx. 25 Ohm).
If the instrument panel detects an infinite resist-
ance (interrupted circuit), the general alarm warn-
ing light turns on and the corresponding icon on
the display flashes.
If the instrument panel detects a null resistance
(short circuit), all the segments light up, the gen-
eral alarm warning light turns on and the corre-
sponding icon on the display flashes.
1. Each time the battery is attached, the fuel gauge indicates full tank regardless of the quantity of fuel
in the tank; it takes approximately 80 seconds to update. After that, the gauge indicates the correct
value.
Electrical system
ELE SYS - 71
