Grease:
• front caster wheel axles
• front caster wheel pivots
• blade spindle housings
• brake lever pivot & brake rocker arm pivot
• transmission foot control pedal
• actuator mounts
• steering control handle
• rear steering wheel axle and hub
Use grease fittings when present. Disassemble parts to
apply grease to moving parts when grease fittings are
not installed.
Not all greases are compatible. Ferris Red Grease (part
no. 22285) is recommended but an automotive-type high-
temperature, lithium grease may be used when this is not
available.
14
Regular Maintenance
LUBRICATION
Lubricate the unit at the following lubrication points.
Oil:
• actuator links
• steering roller chain
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe fittings
and surfaces clean both before and after lubrication.
BATTERY MAINTENANCE
Checking the Battery Fluid
1. Remove the rubber strap and battery box cover.
2. Remove the battery filler cap (A, Figure 7). Fluid
must be even with the split ring full mark. If not, add
distilled water.
3. Reinstall the filler cap.
4. Reinstall the the battery box cover and rubber strap.
Cleaning the Battery and Cables
1. Disconnect the cables from the battery, negative
cable first (C, Figure 7).
2. Remove the battery and clean the compartment with
a solution of baking soda and water.
3. Clean the battery terminals and cable ends with a
wire brush until shiny.
4. Reinstall the battery and reattach the battery cables,
positive cable first (see B, Figure 7)
5. Coat the cable ends and battery terminals with petro-
leum jelly or non-conducting grease.
WARNING
Be careful when handling the battery. Avoid
spilling electrolyte. Keep flames and sparks away
from the battery.
When removing or installing battery cables,
disconnect the negative cable FIRST and
reconnect it LAST. If not done in this order, the
positive terminal can be shorted to the frame by a
tool.
A
C
B

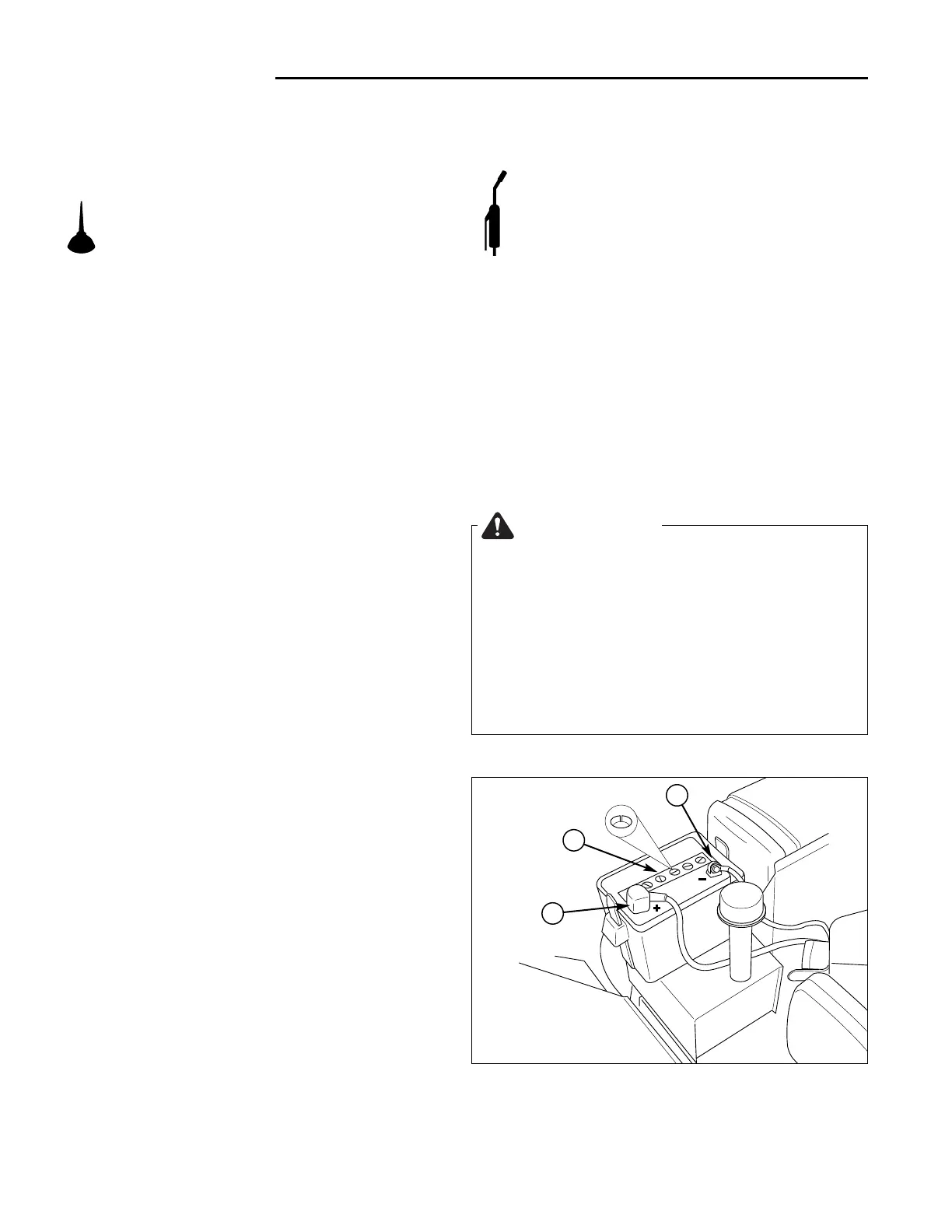

Figure 7. Battery Maintenance
A. Vent Cap(s)
B. Positive (+) Terminal & Cable
C. Negative (-) Terminal & Cable
