SERVICE BRAKE ADJUSTMENT
Adjusting the pedal position closer to the
operator:
1. Loosen cable adjustment nuts (A, Figure 11) on
either side of the cable pivot block (B, Figure 11).
2. Turn the adjustment nut closest to the engine count-
er-clockwise to move the brake pedal towards the
operator.
3. Once in the desired position tighten the opposite nut
to lock in place.
Adjusting the pedal position away from the
operator:
1. Loosen cable adjustment nuts (A, Figure 11) on
either side of the cable pivot block (B, Figure 11).
2. Turn the adjustment nut closest to the driver clock-
wise to move the brake pedal away from the opera-
tor.
3. Once in the desired position tighten the opposite nut
to lock in place.
PARKING BRAKE ADJUSTMENT
For parking brake adjustment, please see your author-
ized Derby dealer.
TRANSMISSION FOOT CONTROL
PEDAL NEUTRAL ADJUSTMENT
For neutral adjustment, please see your authorized
Derby dealer.
Troubleshooting, Adjustment & Service
MMoouunntt BBllaaddee CCaasstteerr
HHeeiigghhtt OOff CCuutt PPoossiittiioonn SSppaacceerrss SSppaacceerrss
2” U1 3
2-1/4” U2 3
2-1/2” U1 2
2-3/4” U2 2
3” U3 2
3-1/4” L2 1
3-1/2” L1 0
3-3/4” L4 1
4” L3 0
4-1/4” L4 0
4-1/2” L5 0
MOWING HEIGHT ADJUSTMENT
The mowing height is determined by three factors: the
mount position of the mower deck, the number of blade
spacers above the spindle and the number of caster
spacers above the caster arm.
Refer to the chart to the right for the correct settings to
obtain the desired height of cut. Remember, the “Blade
Spacers” and “Caster Spacers” columns refer to the
number ABOVE the spindle and caster arm.

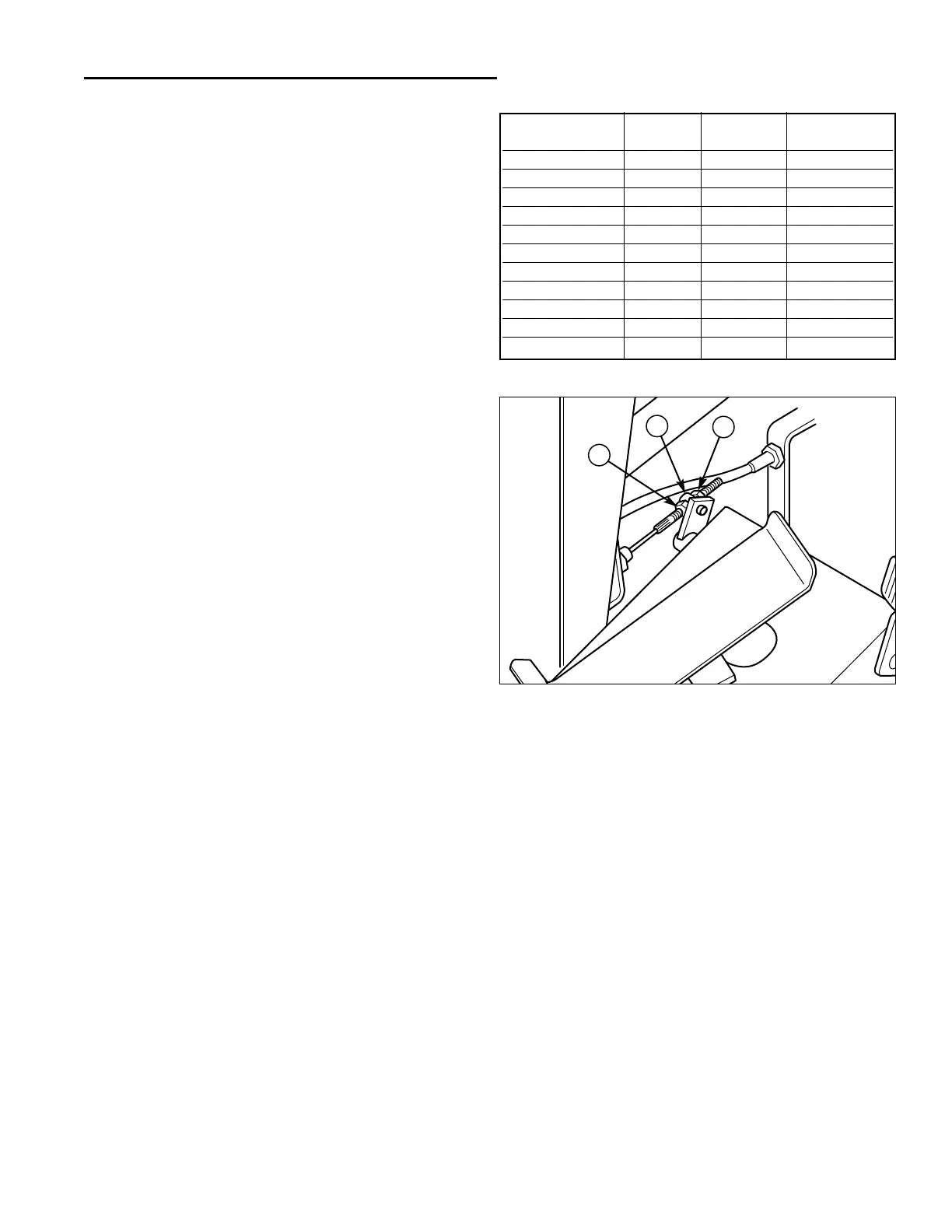

Figure 11. Service Brake Adjustment
A. Cable Adjustment Nut
B. Cable Pivot Block
A
B
A
