DERRICK DE-7200 - Page 32

INSTALLATION
3-12 01 Jan 14
DE-7200VFDCentrifuge
FEED AND FLUSH CONNECTIONS (CONT’D)

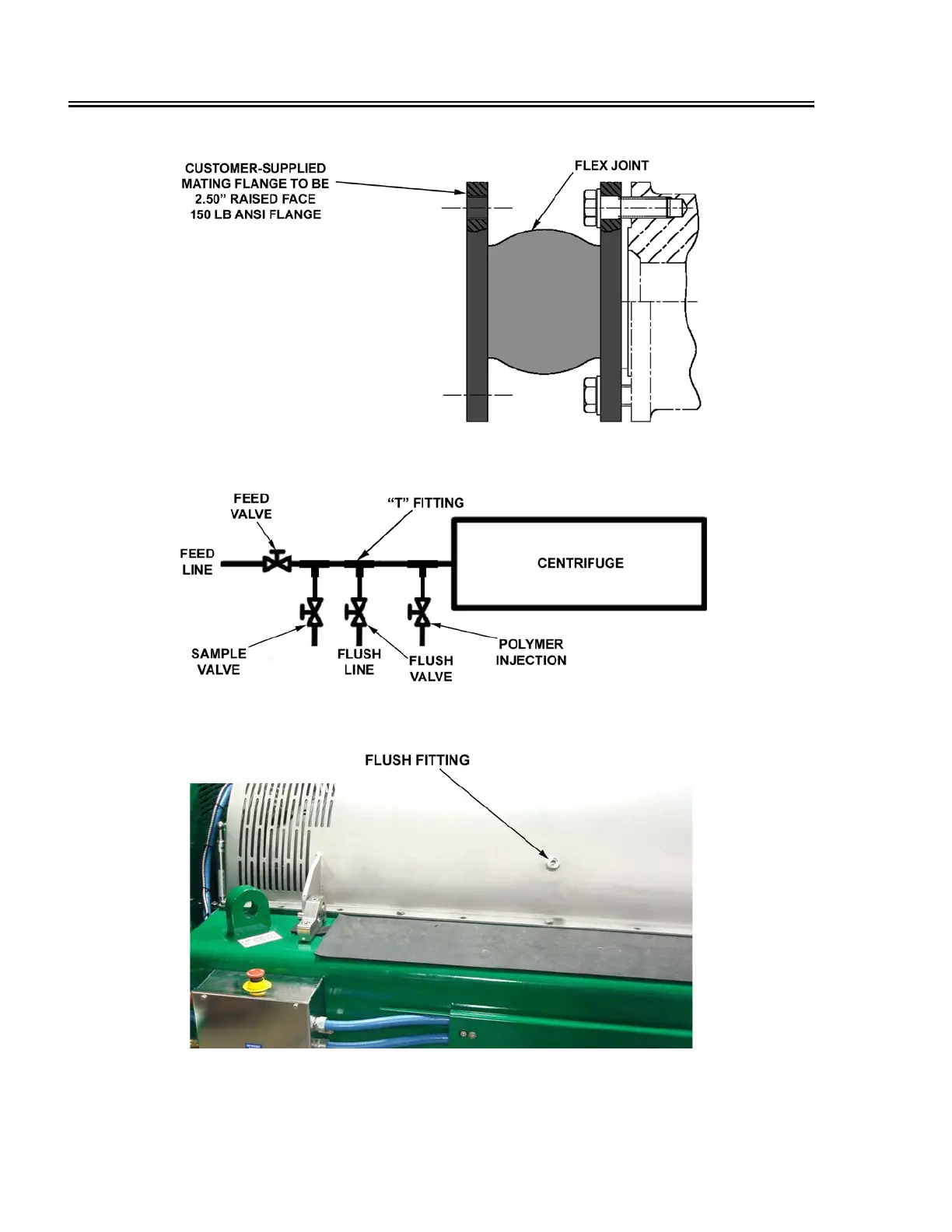

Figure 3-9. Feed Assembly
Figure 3-10. Feed Line Connections
Figure 3-11. Top Cover Flush Fitting
