INSTALLATION
3-14 01 Jan 14
DE-7200VFDCentrifuge
Note that power may be connected with either a single heavy-gage cable or split between two
smaller, lighter cables. The smaller-gage cables used for the split-input connections are generally
easier to handle. If the input is split (Figure 3-13), be sure to group conductors of the same
phase/color.
Cable size depends on machine voltage requirements and cable length. Refer to applicable
electrical schematic diagram in Section 8 for cable sizing requirements.
Non-Hazardous Area Control Cabinet Hazardous Area Control Cabinet

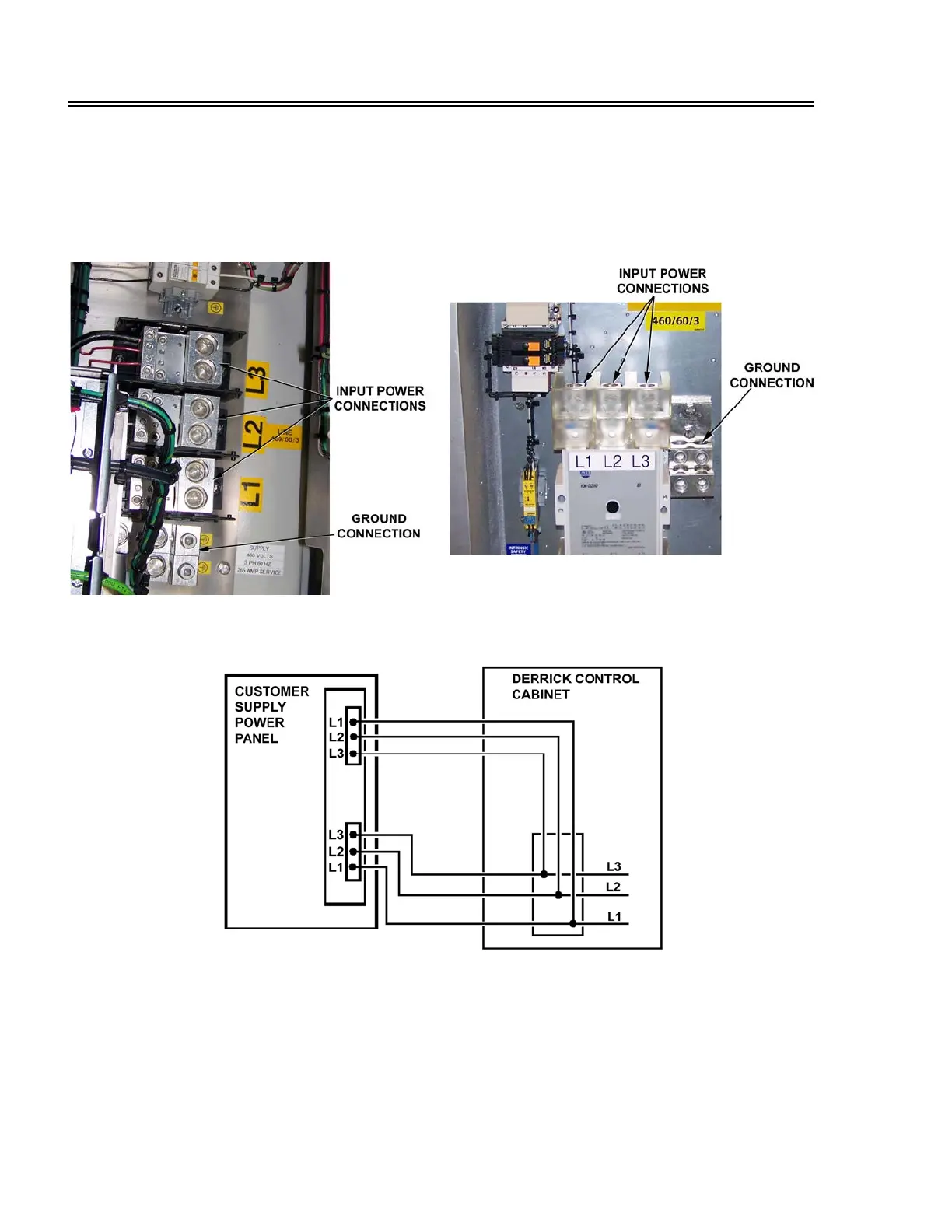

Figure 3-12. Electric Power Connections
Figure 3-13. Split Input Power Connections
