28
6.3.7. ENABLING OR DISABLING BUZZER SOUND
You can disable (or enable) activation sound of motorized cylinder by following steps below:
- Touch to device with your palm to wake it up. Two arrows will appear on display. Touch “Button #2”. ADMIN will be shown.
- Put one of the master fingers onto the reader. First “OK” and then “LEARN” will be shown.
- Touch “Button #2" till “SOUND” appears and touch “Button #1" when “SOUND” is displayed. First “OK” then ”ON" or
“OFF" will be shown.
- Touch “Button #2" to toggle between;
“OFF” - buzzer is disabled
“ON” - buzzer is enabled.
- When desired choice is displayed, touch “Button #1". “OK” will be displayed.

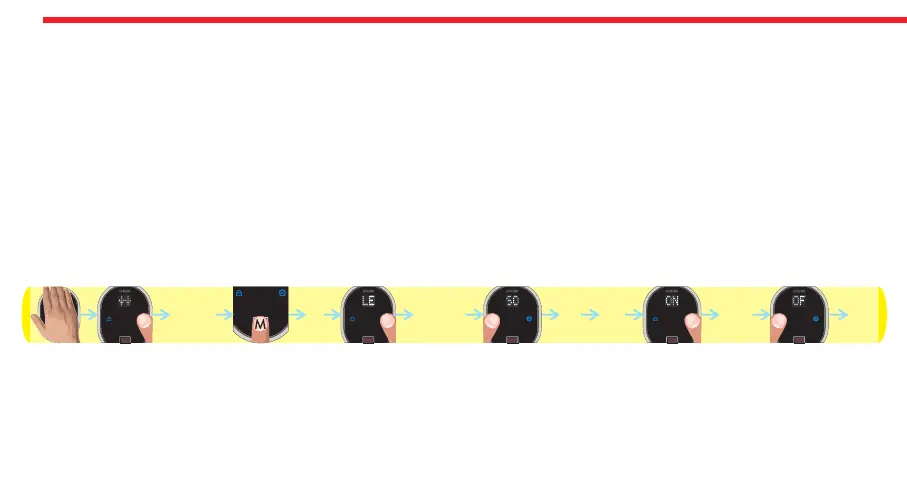

In this way, desired buzzer choice will be set. Schematic representation of disabling buzzer sound is as follows:
NOTE: To transfer settings to motorized cylinder, you need to lock or unlock motorized cylinder via master controller.
DESi
OK
OK
ADMIN SOUND
OKOFFON
To Next Page
