Desoutter ERS6 - Fastening and Clamping; Mounting Flange Specification; Clamping Method A2

10/2019 7 / 72
6159933670
Issue no: 14
A
A-A
A
48
M20 x 1
Left hand
±0.15
1
M20 x 1
Left hand

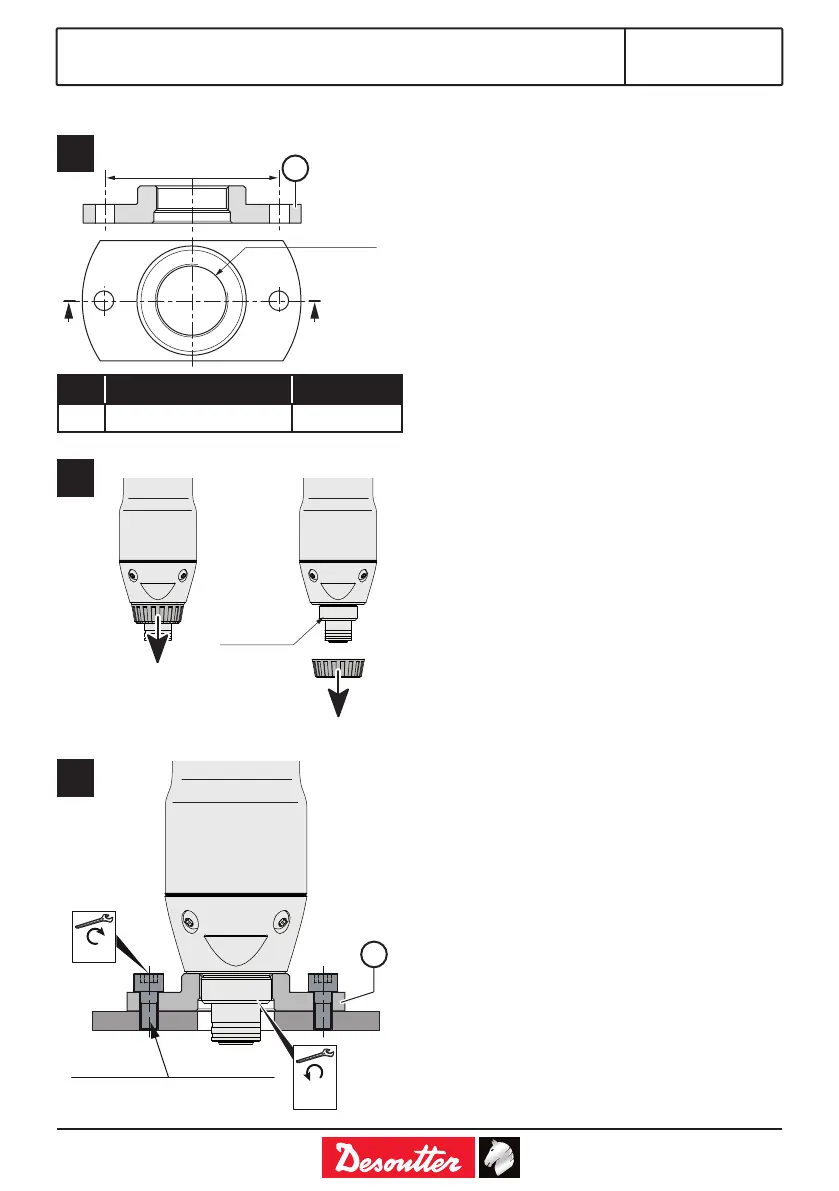

FASTENING AND CLAMPING REQUIREMENTS
1
17 Nm
2 electro-galvanized screws
CHC M5 - Class 12.9
30 Nm
min
A1
A
A2
Item Designation Part number
1 Flange M20 x 1 - LH 2050528753
