CERTIFICATION—
PointWatch Aluminum Stainless Steel
CENELEC
1
X X
FM
2
X
CSA
3
X
Gosstandart
4
X X
1
CENELEC: Certificate No. 95D.119043
EEx d IIB + H2 T6 (Tamb –40°C to +40°C)
EEx d IIB + H2 T5 (Tamb –40°C to +75°C).
Ingress protection IP66.
2
FM: Explosion-proof for Class I, Div. 1, Groups B,
C & D per FM 3615. Performance per FM
6320. (See Appendix for approval descrip-
tion.)
3
CSA: Explosion-proof for Class I, Div. 1, Groups B,
C & D per CSA C22.2 No. 30. Performance
per CSA C22.2 No. 152.
4
Gosstandart: Certificate No. A-0272; Performance
Certificate No. 1039.
1Ex d IIB T6/H2 (Tamb. -40°C to +40°C)
1Ex d IIB T5/H2 (Tamb. -40°C to +75°C).
Junction Box Aluminum Stainless Steel
CENELEC
5
X N/A
FM
6
X N/A
CSA
7
X N/A
Gosstandart
8
Pending N/A
5
CENELEC: Certificate No. 96D1115
EEx d IIC T6 (Tamb –60°C to +40°C)
EEx d IIC T5 (Tamb –60°C to +75°C).
Ingress protection IP66.
6
FM: Explosion-proof for Class I, Div. 1, Groups B,
C & D per FM 3615.
7
CSA: Explosion-proof for Class I, Div. 1, Groups B,
C & D per CSA C22.2 No. 30.
8
Gosstandart:
1Ex d IIC T6 (Tamb –60°C to +40°C)
1Ex d IIC T5 (Tamb –60°C to +75°C).
MOUNTING—
Detector can be threaded into any approved junction
box suitable for the specific applications. (Junction box
spacers may be required for flush mounting.)
PointWatch thread options:
• 3/4 inch NPT
• M20 (for use outside North America).
SHIPPING WEIGHT—
Aluminum: 2.8 pounds (1.3 kilograms).
Stainless Steel: 4.8 pounds (2.2 kilograms).

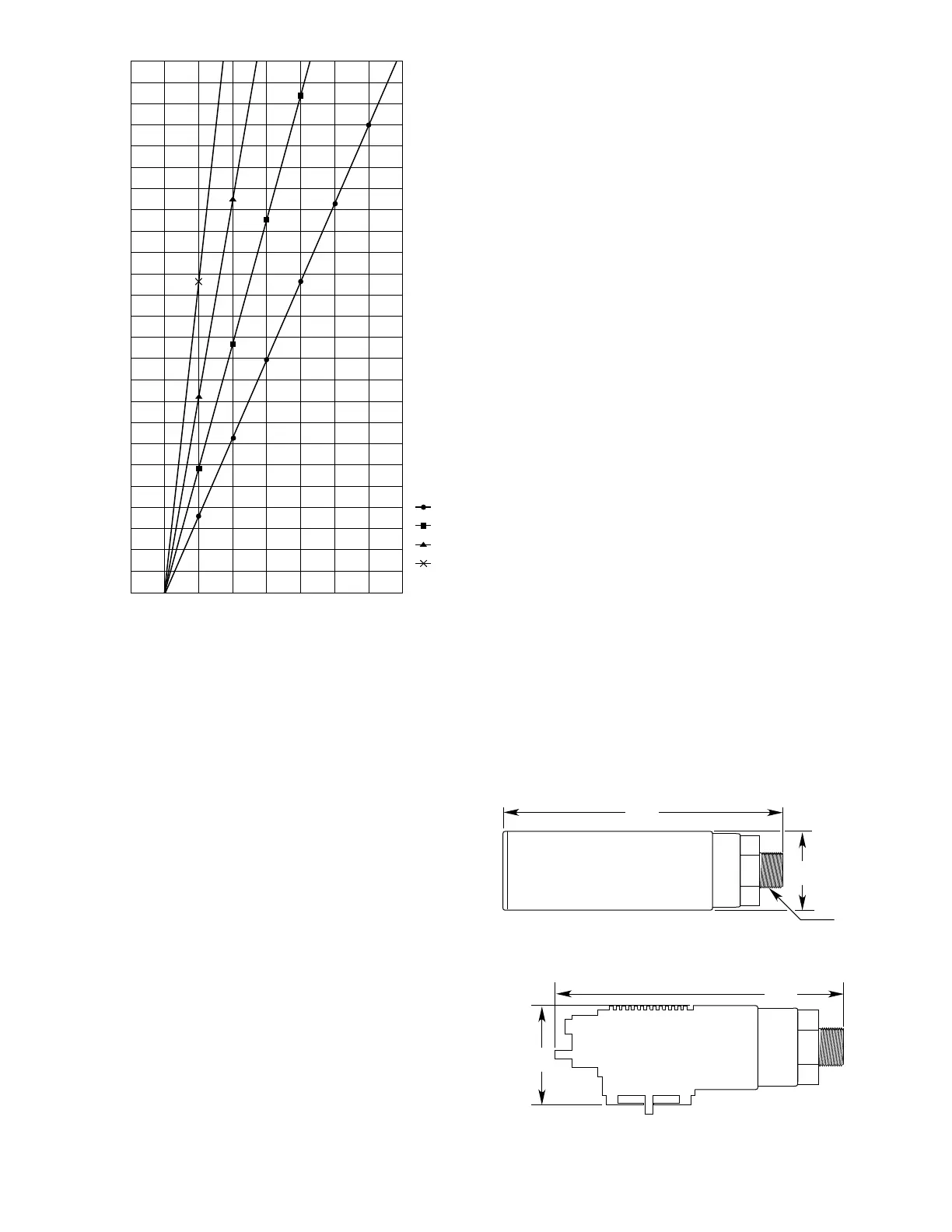

DIMENSIONS—
See Figures 3 and 4 for the dimensions of the
PointWatch Detector and Figure 5 for dimensions of the
PointWatch Junction Box.
TERMINALS—
Terminals UL/CSA rated for 14 to 22 AWG wire; termi-
nals DIN/VDE rated for 2.5 mm
2
wire.
