Deus CT1 24 - Installation and Fixing of the Gearmotor; Rack Assembly

P.6
m m 1

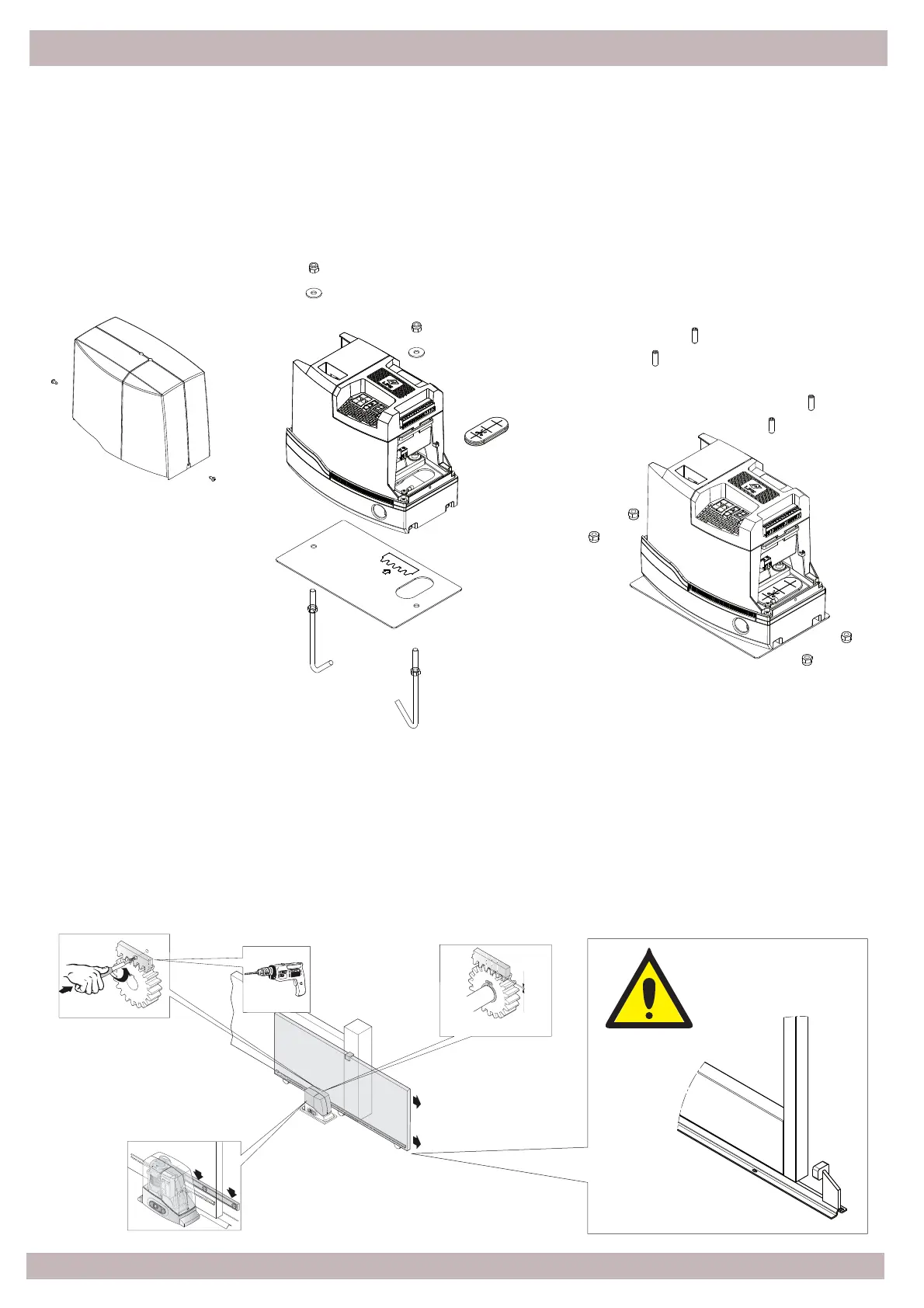

a) Remove the gearmotor cover by unscrewing the screws; place the gearmotor on the anchoring
plate and screw the two M10 bolts with rela!ve washers.
b) Make any ver!cal adjustment of the gearmotor by adjus!ng the 4 dowels, leveling it; adjust
the gearmotor so that it is parallel to the gate.
Fix the gearmotor defini!vely by locking the two M10 bolts and rela!ve washers with a
special wrench.
2.4 - Rack assembly
2.3 - Installa!on and fixing of the gearmotor
Release the gearmotor, properly fix the rack to the gate with the supplied screws.
Leave 1mm gap between the pinion and the rack teeth.
Verify that the complete movement occurs without obstacles and impediments. Check the
presence of the leaf stop mechanical limit switches on both sides.
ATTENTION
MECHANICAL STOP
