Deutronic DBL Manual (MPC4) - 14VDC - EN - 18 / 20 - 10 / 2006
9) Annex – Characteristic Curves

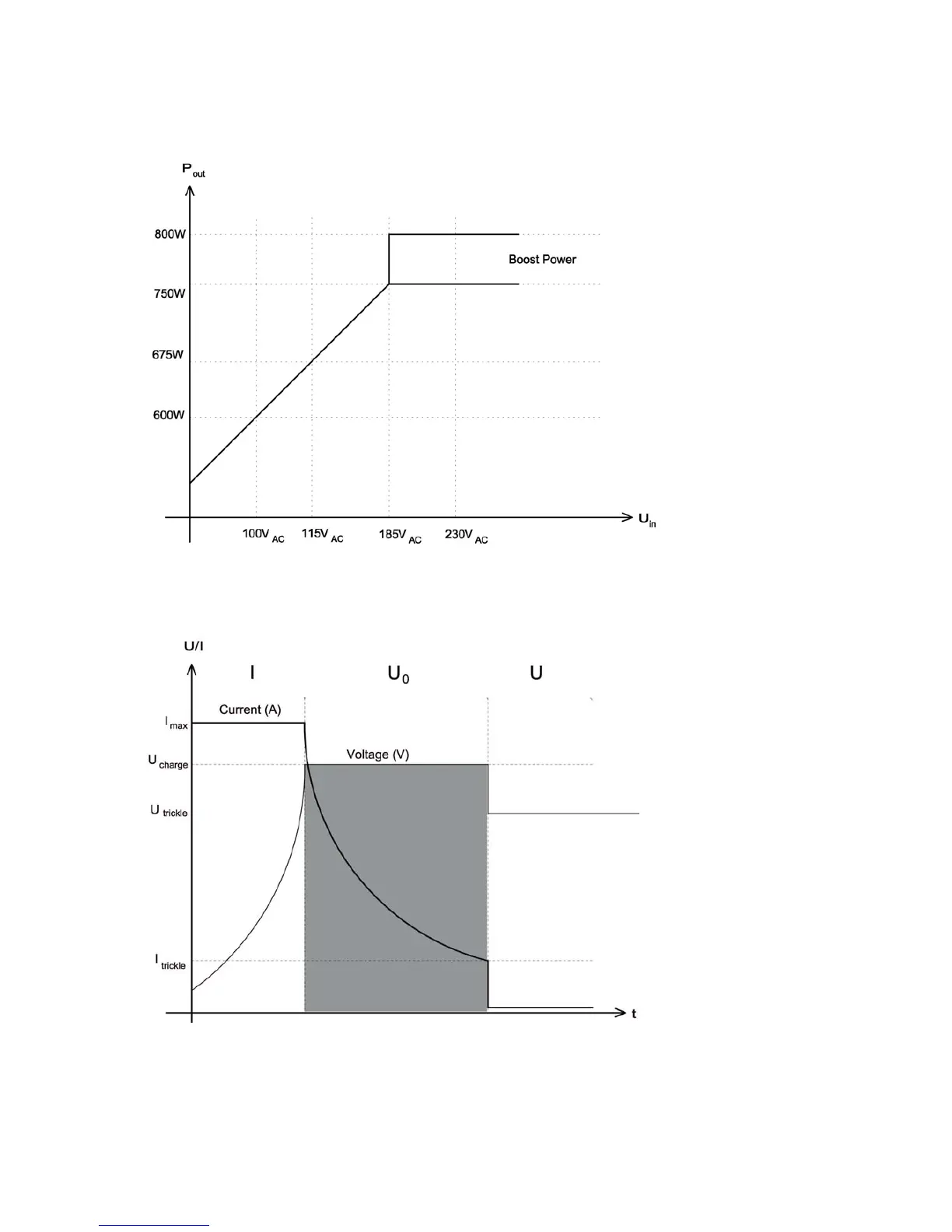

Output rating curve – on the example of DBL800:
Charging characteristic I-Uo-U:
