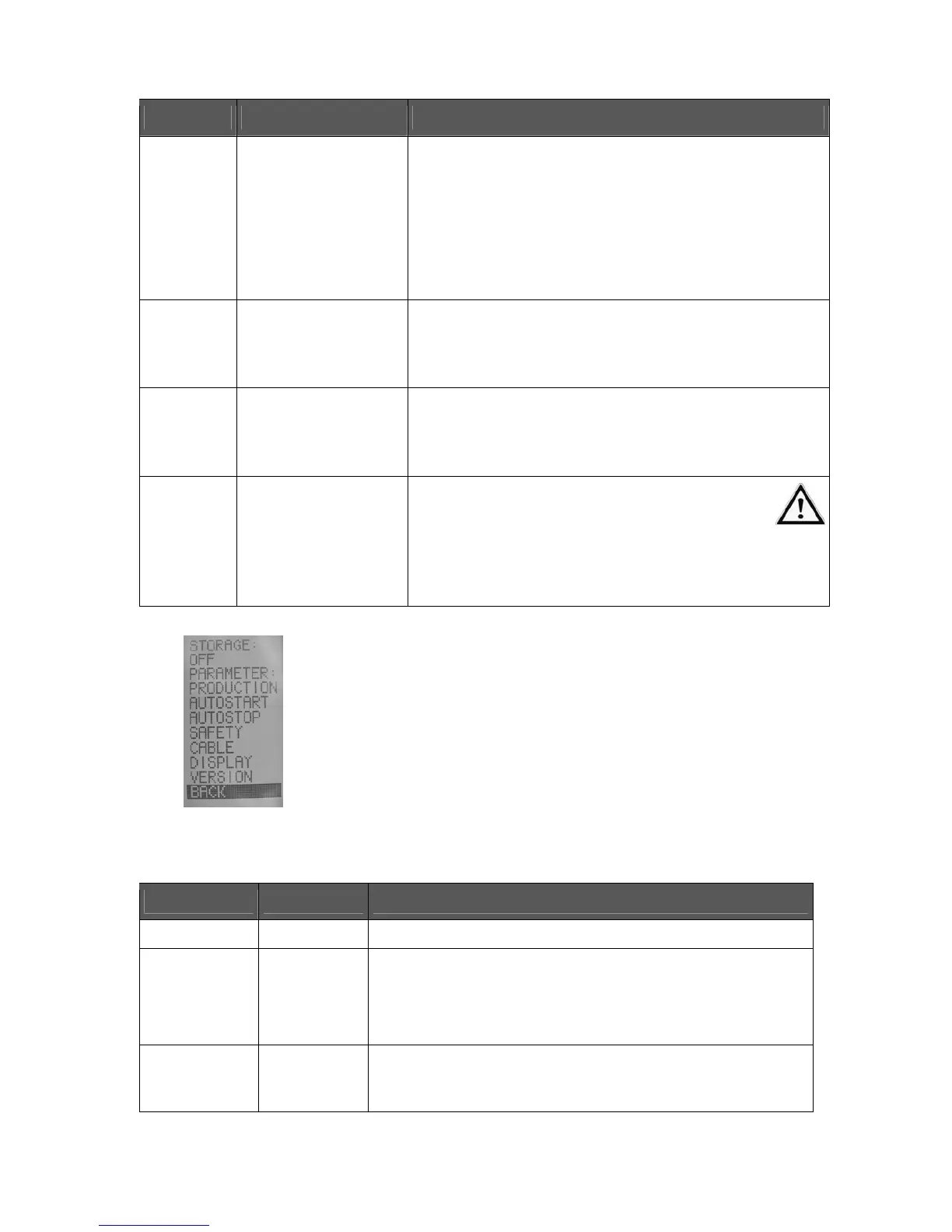

5. c) DEVICEMENU – for device specific parameter setting
Parameter Value Setting range / Information
STORAGE OFF
CYCLIC
OFF No temporary saving of the charging process state.
CYCLIC Approximately every 5 minutes the device conditions
are saved: Device mode, counter, timer, temporary parameters etc.
Note: If during a charge process the voltage supply of the charger is
interrupted, then the battery charging is continued automatically at
setting CYCLIC as soon as the mains supply is back again (all meter
readings, e.g. previous load time, are further updated)
PARAMETER DEFAULT
USER
Factory-made standard settings for the chargers parameters is the
parameter DEFAULT
If one of the predefined standard settings is edited, so in the
DEVICEMENU appears operation mode USER
MAN.START
AUTOSTART
The user starts the device manually.
As soon as mains is connected the charger starts automatically in
SUPPLY-/CHARGEMODE.
MAN.STOP
AUTOSTOP
The user has to stop the operation manually.
IMPORTANT NOTE: The safety shutdown (Ah limit,
max. charge time) is deactivated by MAN.STOP!!!
When reaching the Ah limit or the maximum charge time the device
switches to standby mode automatically (reset can be achieved by
opening the current clamps).
Parameter Value Setting range / Information
SAFETY:
Max. voltage U
max
Standard value: 15,5V
Note: The limiting value for max. voltage 15,5V is a SAFETY LIMITATION
and can be adjusted e.g. because of voltage decreasing due to long
cables. The safety limitation can be changed between values of
17,0V…20.0V depending on charger type.
Short circuit
nom. voltage
U
srt
Standard value: 2,0V
If the voltage on the output drops below the preset value, so a short circuit
is recognized and the current is limited to 0,5A.
