Deutronic DBL - Device Configuration and Modes

Deutronic DBL Manual (MPC4) - 14VDC - EN - 9 / 20 - 10 / 2006
Device configuration:
The configuration of the DBL can be accomplish within the topic ’MENU’
(selection is done with the UP/DOWN button and confirmation with the ENTER-button).

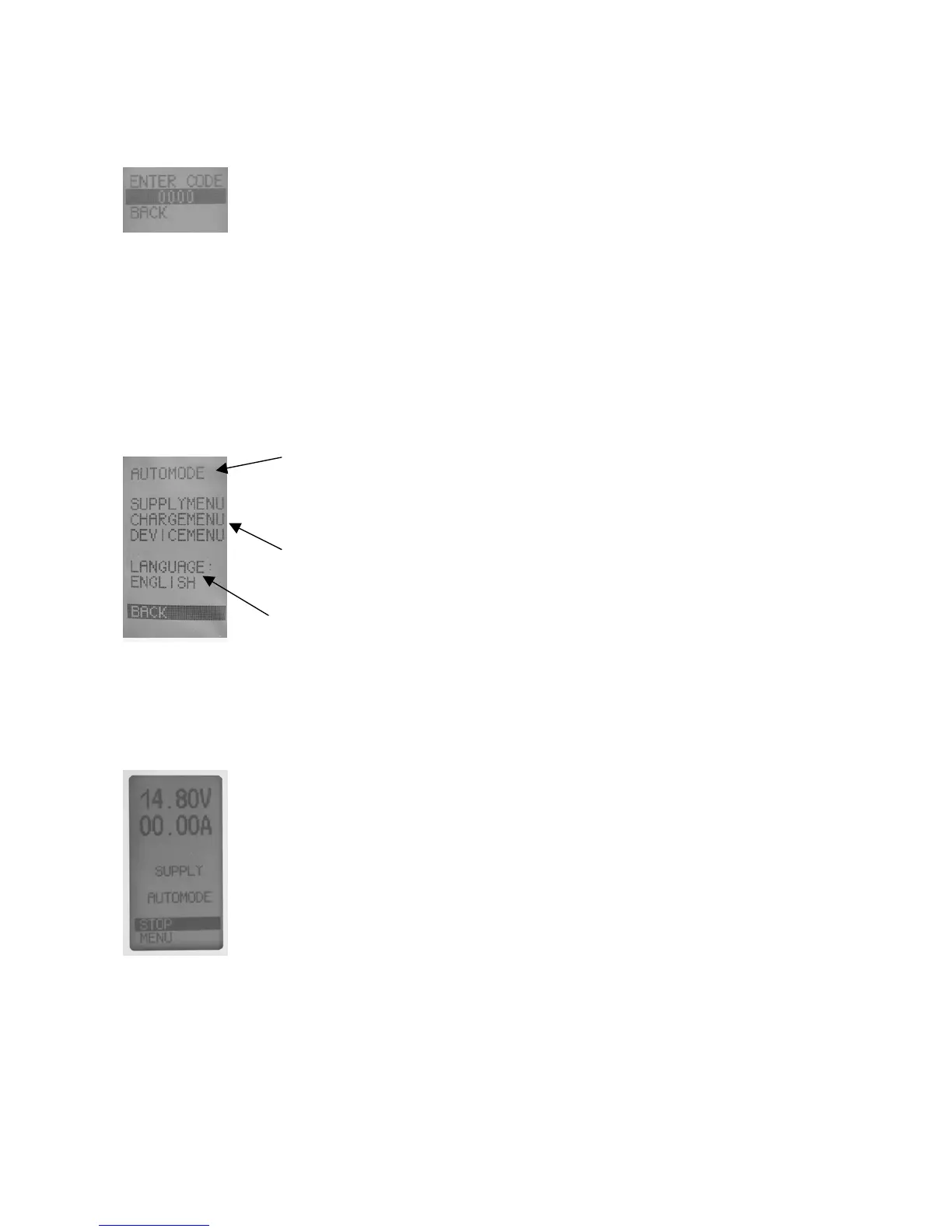

Active Key lock:
If the key lock is activated on the DBL – so the display shows the following.
Deactivate the key lock:
Activate the input field with the ENTER-button, change the code number
with the UP/DOWN buttons and confirm the code with the ENTER-button
(the user is able to set and activate the code for the key lock in the device
menu).
Indication from DBL if the key lock is deactivated, or if the entered code is okay:
Selection: AUTOMODE / CHARGEMODE / SUPPLYMODE:
Shows the active mode on the display – if the operation mode should be
changed just activate with the ENTER-button the item and edit it with the
UP/DOWN button.
Device configuration: SUPPLYMENU / CHARGEMENU / DEVICEMENU:
Parameterization of the single operation modes on the DBL can be done in
the respective submenu.
Language selection German, English, Spanish, French, Italian:
Shows the active language on the display - if the operation mode should be
changed just activate with the ENTER-button the item and edit it with the
UP/DOWN button.
Initial Operation:
Operation mode AUTOMODE – automatic detection of batteries and
ohm resistive loads:
 Switch-on the power switch
 Set the DBL to the operation mode AUTOMODE
 Connect load / battery with right polarity
(red [+] / black [-])
 Start supply: Select in the main menu the START item and
start the power output by pressing the ENTER button
 End supply: Choose the STOP item of the main menu and
press the ENTER button
Note:
- With activated AUTOMODE the DBL is able to detect via the integrated load
detection whether a battery or an ohm resistive load is connected.
- A present battery is detected via its counter voltage.
- An ohm resistive load is detected by means of a small test current.
- With operation mode SUPPLYMODE only an ohm resistive load is allowed to be
supplied (e.g. automobile without a connected battery).
- In CHARGEMODE only a connected battery can be supplied.
