Deutz TCD 2013 2V - Page 166

© 02/2010 OBJ_DOKU-21765-001.fm
1/4
6
Cylinder head
TCD 2013 2V W 08-00-01
Checking the compression pressure
Standard tools:
– Compression pressure
tester 8005
– Torx tool set 8189
Special tools:
– Connector 100190
– W 11-01-01
– W 19-01-01

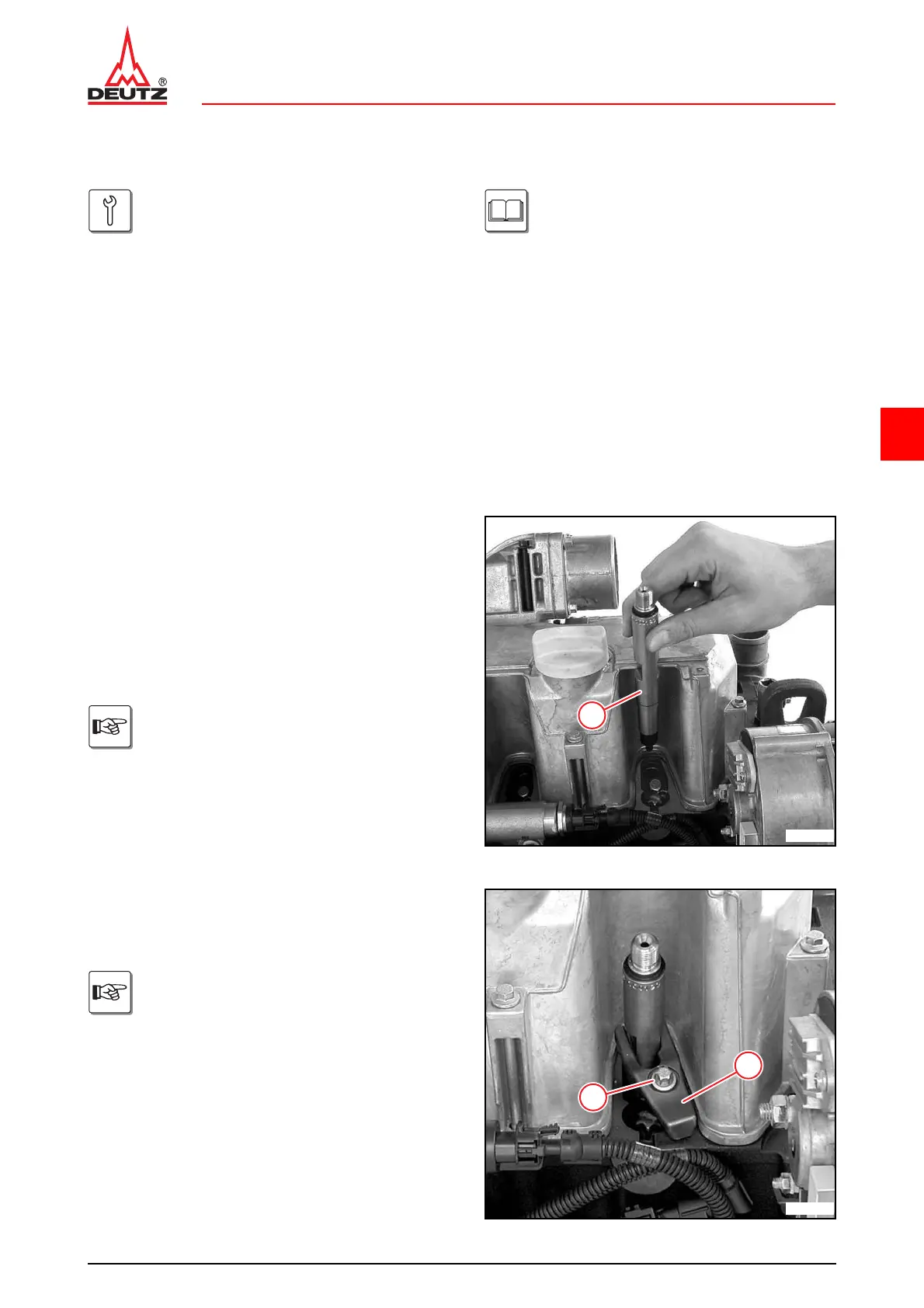

Checking the compression pressure
● Setting the valve clearance (with exhaust return
module installed).
 W 11-01-01
● Remove injector.
 W 19-01-01
● Insert connector (1).
Use sealing ring for injector.
1
© 44100-0
● Mount clamping shoe (1).
● Tighten screw (2).
 25 Nm
When installing the connector on
cylinders 1 to 5, the clamping shoe must
be inserted together with the connector.
1
2
© 44101-0
