© 02/2010 OBJ_DOKU-21789-001.fm
1/10
6
Injector
TCD 2013 2V W 19-01-01
Removing and installing the injector
Standard tools:
– Assembly pliers 8024
– Torx tool set 8189
Special tools:
– Special wrench 110500
– Lever tool 110620
– Assembly case with
assembly sleeves, guides
and disassembly tool 110900
– Extraction tool 120680
– Slide hammer 150800
– Plugs/caps 170160
– User notes
Danger!
Wait 30 seconds after switching off the
engine before working on the fuel system.
Attention!
Ensure utmost cleanliness when working
on the fuel system.
Carefully clean the area around the
affected parts. Blow damp areas dry with
compressed air.
Observe the safety regulations and natio
-
nal specifications for handling fuels.
Close all connections immediately after
opening with new, clean plugs/caps.
Do not remove plugs/caps until immedia
-
tely before assembling.
Collect leaking operating fluids in suitable
vessels and dispose of according to regu
-
lations.
After all work on the fuel system, it must be
bleeded - see the operation manual, chap
-
ter "6 Fuel system“.

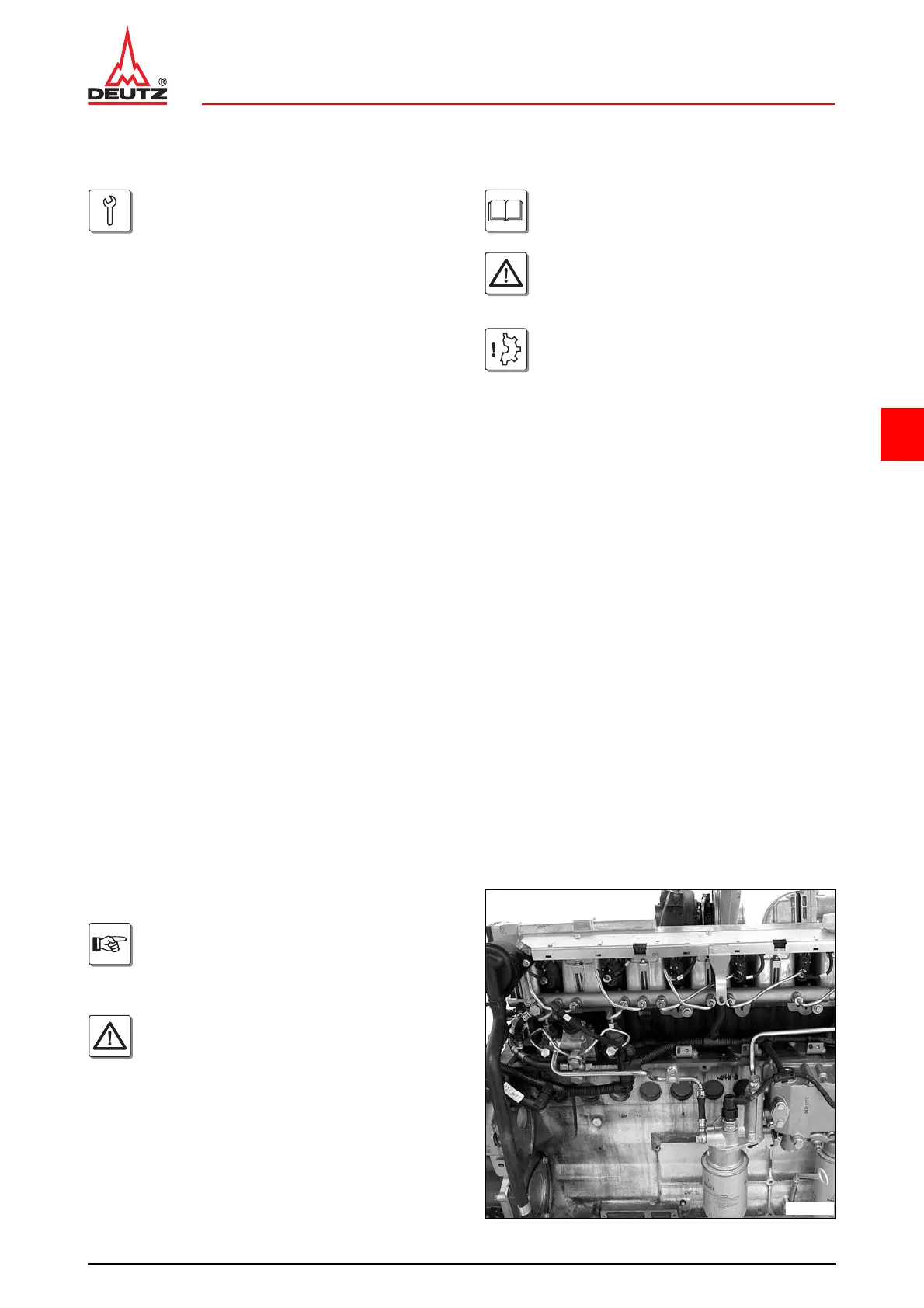

Removing the injector
With oil dipstick guide pulled up on the side of the
rail:
– Pull out oil dipstick.
– Close opening.
The following work procedure describes
the removal and installation of an injector.
Proceed in the same way to remove further
injectors.
Danger!
Wait 30 seconds after switching off the
engine before working on the fuel system.
