Deutz TCD 2013 2V - Page 244

© 02/2010 OBJ_DOKU-21782-001.fm
1/4
6
Control parts
TCD 2013 2V W 11-02-02
Disassembling, assembling and checking the rocker arm and rocker arm
bracket
Standard tools:
– Internal measuring device
– Micrometer gauge
Special tools:
– Dial gauge 100400
– W 11-02-01

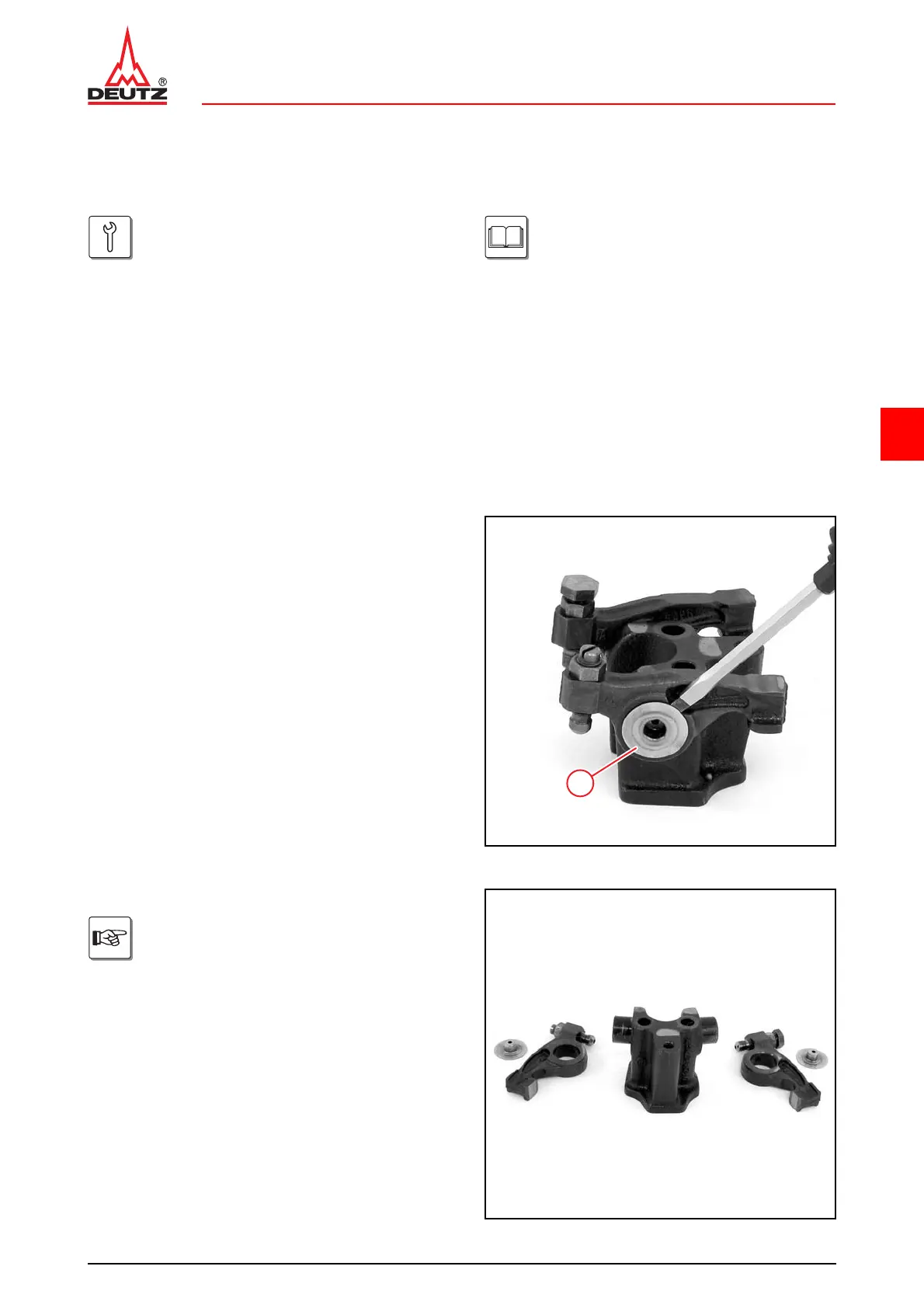

Disassembling the rocker arm bracket
● Remove rocker arm and rocker arm bracket.
 W 11-02-01
● Remove lockwashers (1).
1
© 44137-0
● Remove rocker arm.
Lay out components in the order in which
they should be installed.
© 44138-0
