Fuel pipes
TCD 2013 2V W 21-02-05
Removing and installing the rail pressure sensor
Standard tools
Special tools:
– Long socket wrench insert 110700
– Plugs/caps 170160
– Assembly grease 01016496
– User notes
Danger!
Wait 30 seconds after switching off the
engine before working on the fuel system.
Attention!
Ensure utmost cleanliness when working
on the fuel system.
Carefully clean the area around the
affected parts. Blow damp areas dry with
compressed air.
No foreign bodies may get into the rail.
Ensure utmost cleanliness. Especially on
the thread and the sealing surface of the
rail.
Observe the safety regulations and natio
-
nal specifications for handling fuels.
Close all connections immediately after
opening with new, clean plugs/caps.
Do not remove plugs/caps until immedia
-
tely before assembling.
After all work on the fuel system, it must be
bleeded - see the operation manual, chap
-
ter "6 Fuel system“.

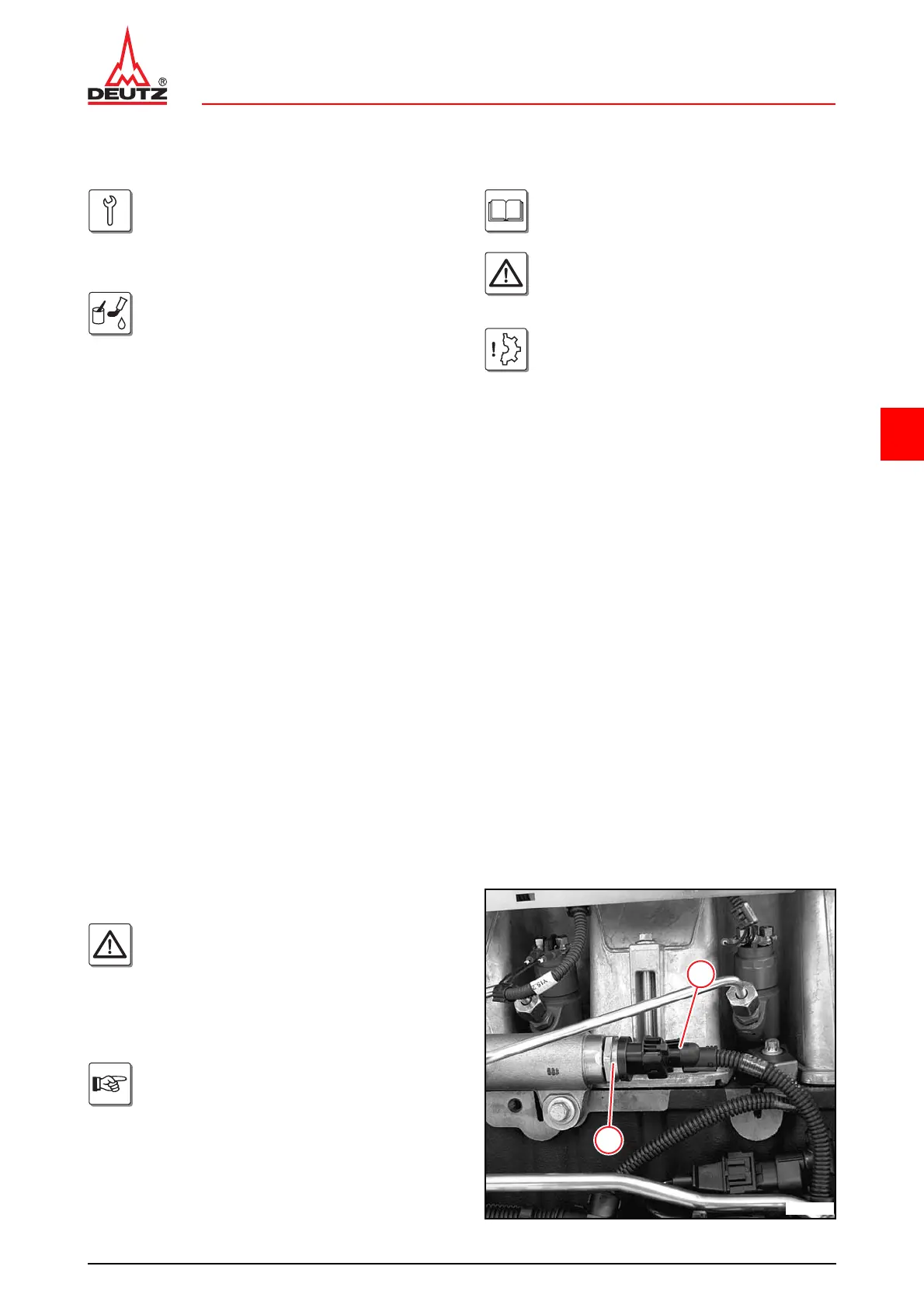

Removing the rail pressure sensor
● Unlock cable plug (1) and remove.
● Unscrew the rail pressure sensor (2) with the socket
wrench.
Danger!
Wait 30 seconds after switching off the
engine before working on the fuel system.
Collect draining fuel and dispose of
according to regulations.
