Deutz TCD 2013 2V - Page 346

© 02/2010 OBJ_DOKU-21801-001.fm
1/4
6
Fan drive
TCD 2013 2V W 39-02-01

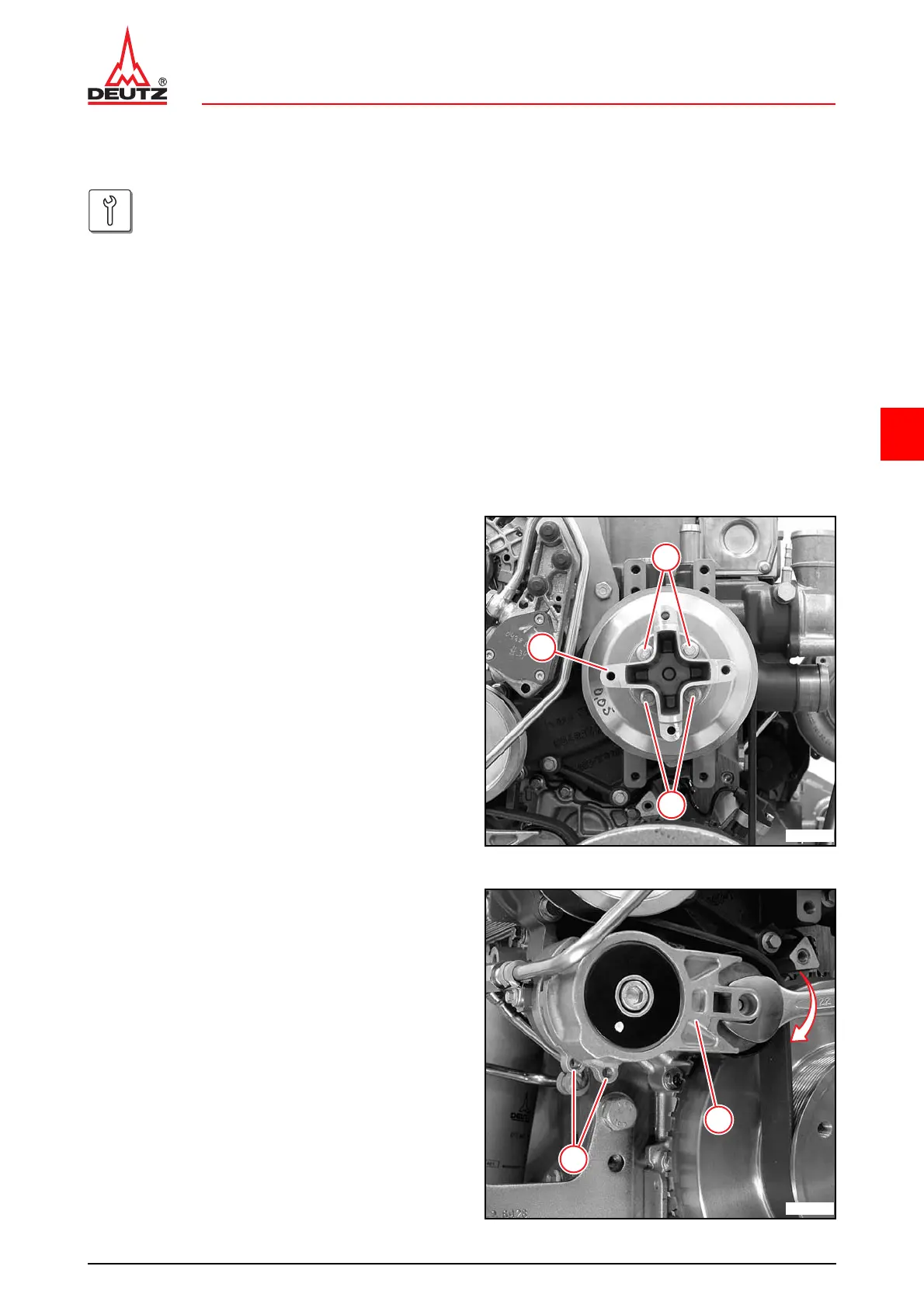

Removing and installing the fan drive
Standard tools:
– Retaining pin, diameter 6 mm
Removing the fan drive
● Unscrew screws (1).
● Remove adapter (2).
1
1
2
© 42854-0
● Tighten the belt tensioner (1) in the direction of the
arrow until the bores (2) are in line.
1
2
© 42852-0
