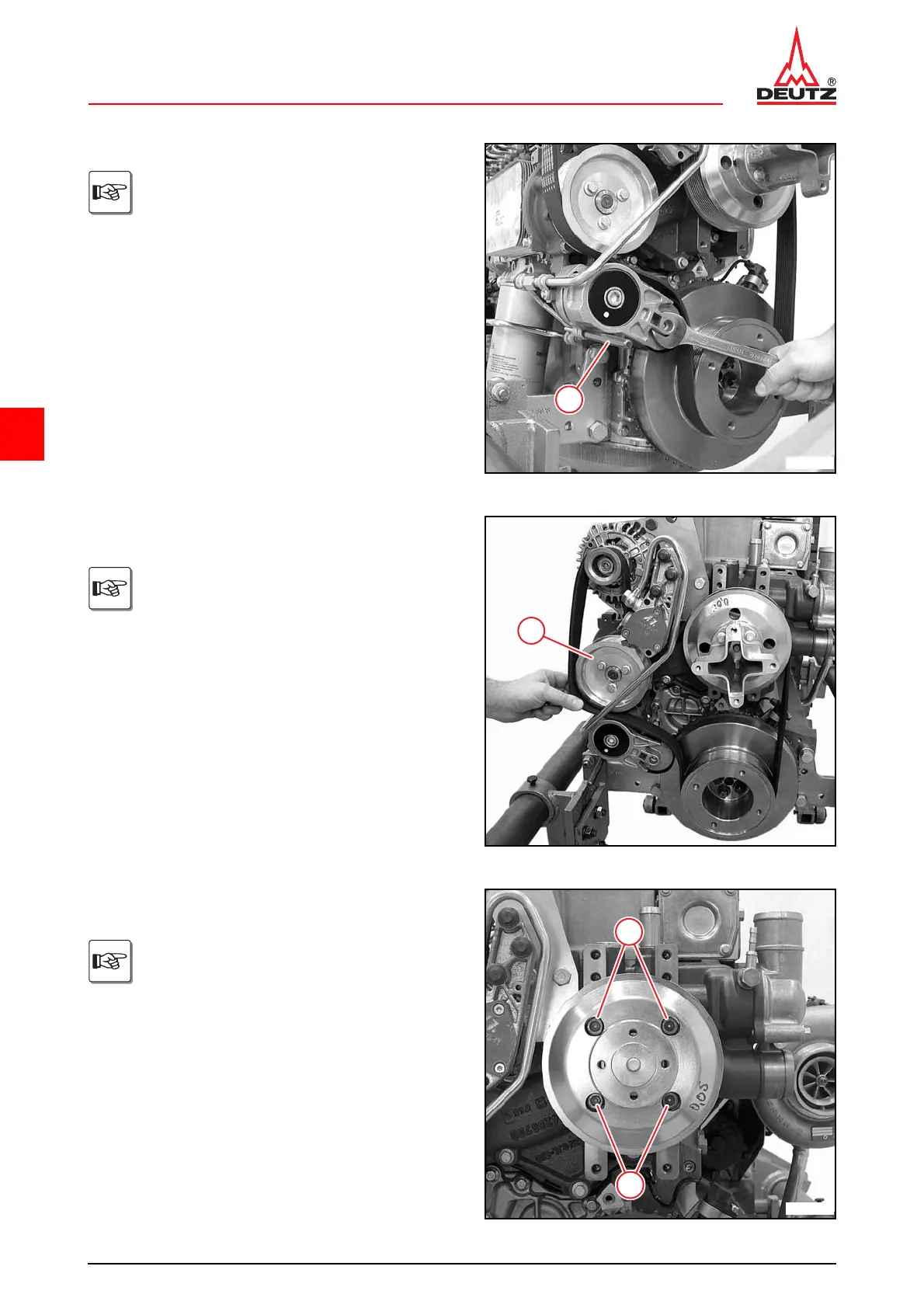

Fan drive
TCD 2013 2VW 39-02-01
● Insert holding pin (1).
The running direction must be marked
when the V-rib belt is to be re-used.
1
© 42837-0
● Mark the running direction of the V-rib belt.
● Remove V-rib belt.
The running direction must be marked
when the V-rib belt is to be re-used.
First remove the V-rib belt from the V-rib
belt pulley (1)
1
© 42853-0
● Unscrew screws (1).
● Remove fan drive with V-rib belt pulley.
● Visually inspect the components.
Note installation position of the fan drive.
1
1
© 42855-0
