Fan drive
TCD 2013 2V W 39-02-01

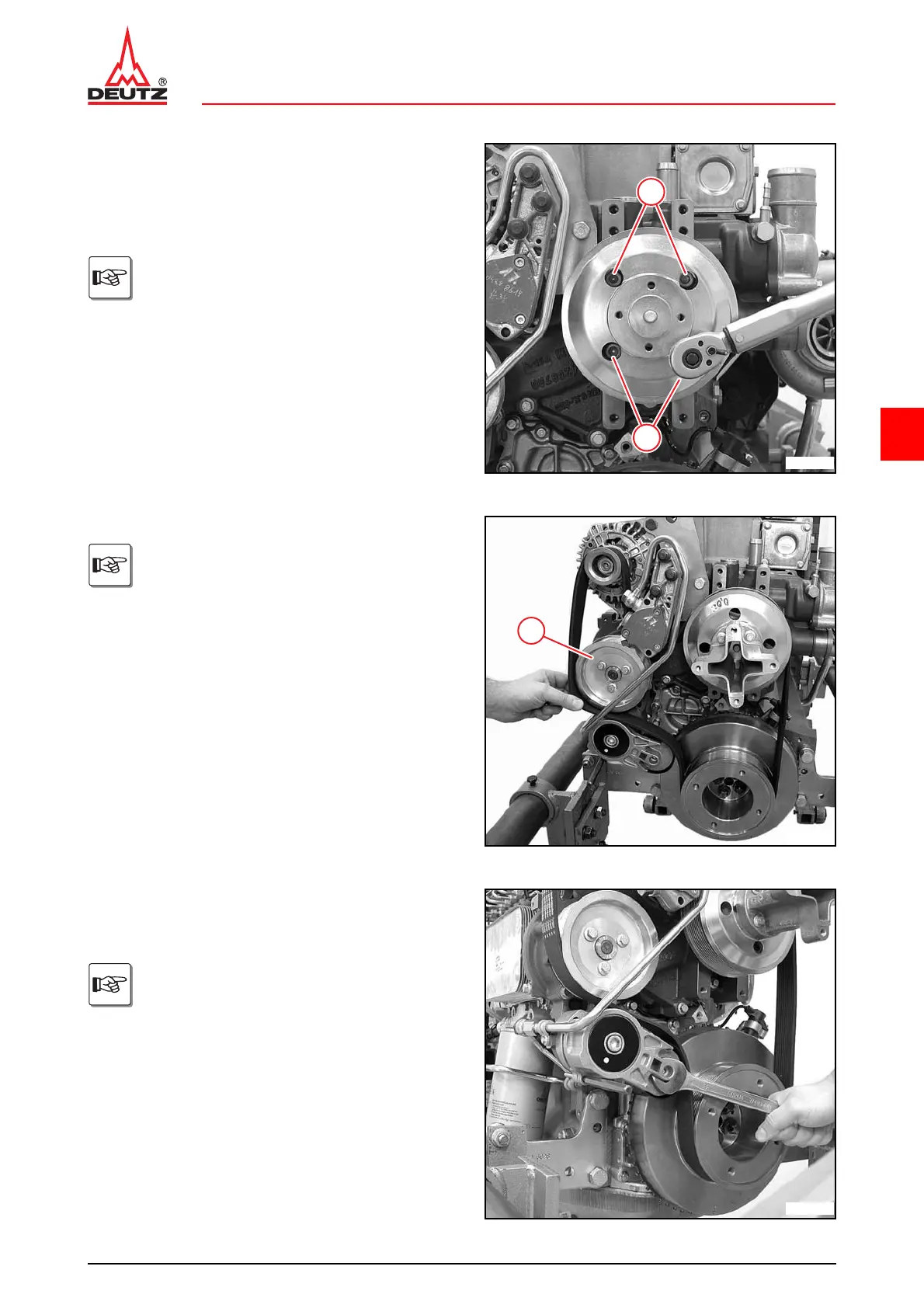

Installing the fan drive
● Install fan drive with V-rib belt pulley.
● Tighten screws (1).
60 Nm
Note installation position of the fan drive.
● Fit the V-rib belt according to the running direction.
Place the V-rib belt over the V-rib belt pul
-
ley (1) last.
Ensure that the installation location is free
from faults.
● Hold the belt tensioner.
● Remove the retaining pin.
● Relieve the belt tightener.
The belt tightener clamps the V-rib belt
automatically.
