Engine mounting
TCD 2013 2VW 47-01-01

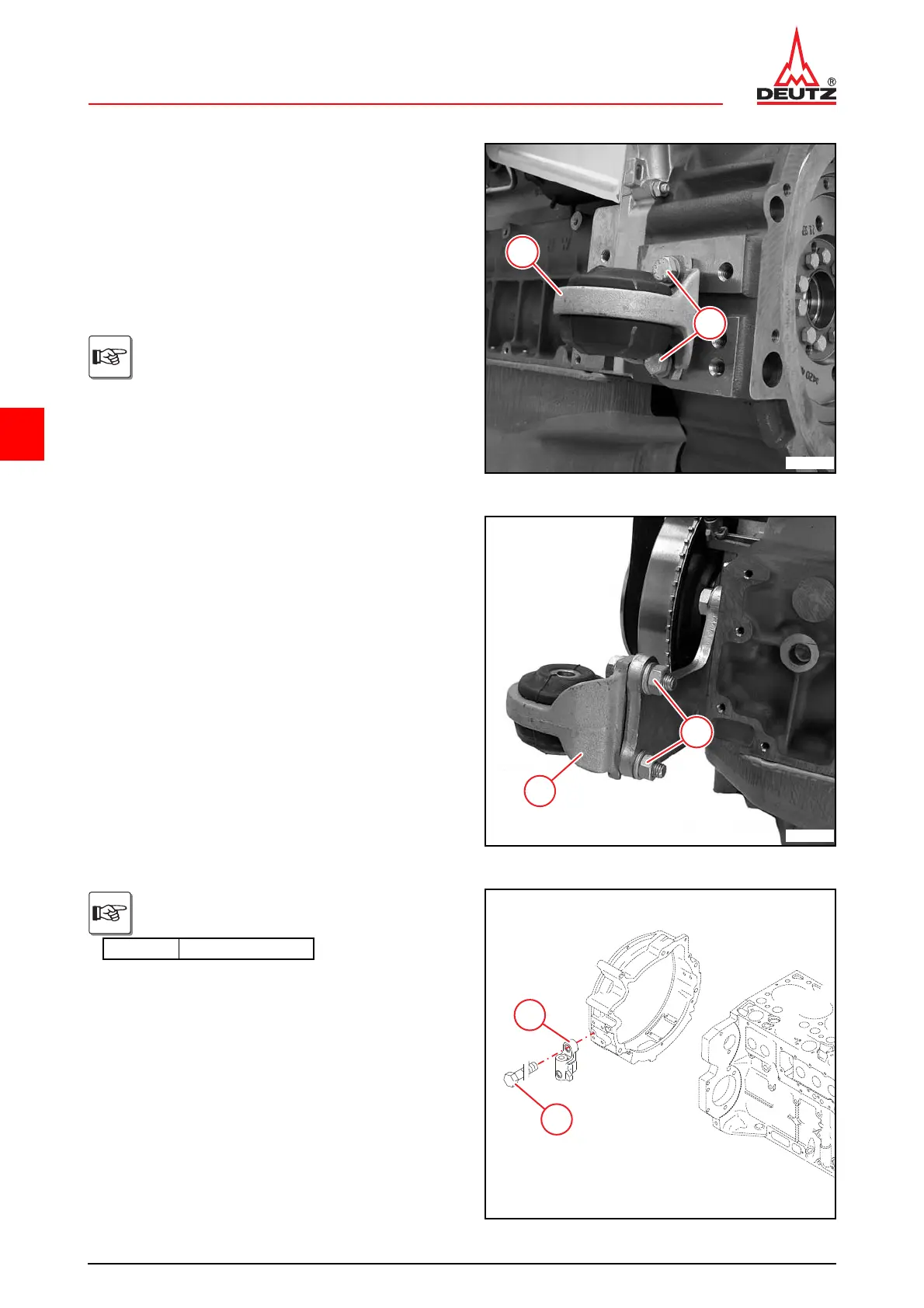

Mount mounting feet
● Hang engine on workshop crane.
 W 46-00-01
● Mount mounting foot (1).
● Tighten screw (2).
– (2) = M12
 95 Nm
Mount all mounting feet.
2
1
© 42641-1
● Mount mounting foot (1).
● Tighten screw (2).
– (2) = M12
 95 Nm
● Set down engine.
● Unhook engine.
● Install crankcase breather.
 W 01-01-01
2
1
© 42640-1
● Fit rigid mounting foot (1).
● Tighten screw (2).
– (2) = M12x60
 95 Nm
Different installation variants are shown
below as examples.
Variant
1
2
© 48225-0
