Front cover
TCD 2013 2V W 01-03-01

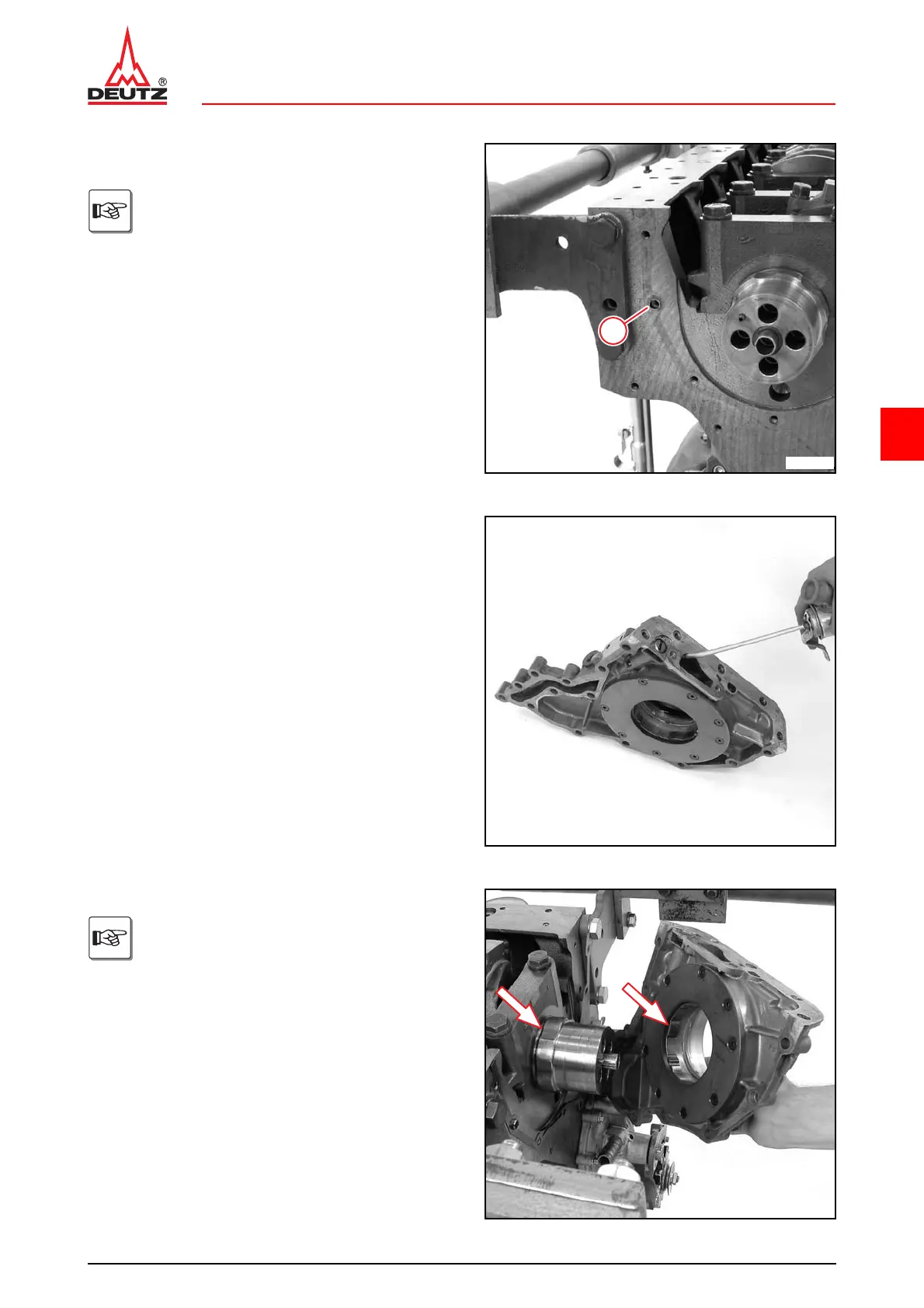

● Fix the new gasket to the crankcase with a little
grease.
Note installation position.
Make sure the clamping bushing (1) is in
place.
● Oil oil pump with lubricating oil.
● Position the inner rotor on the crankshaft.
The countersinks on the crankshaft and
the guides on the inner rotor must
match (arrows).
The inner rotor and crankshaft only match
up in one position.
