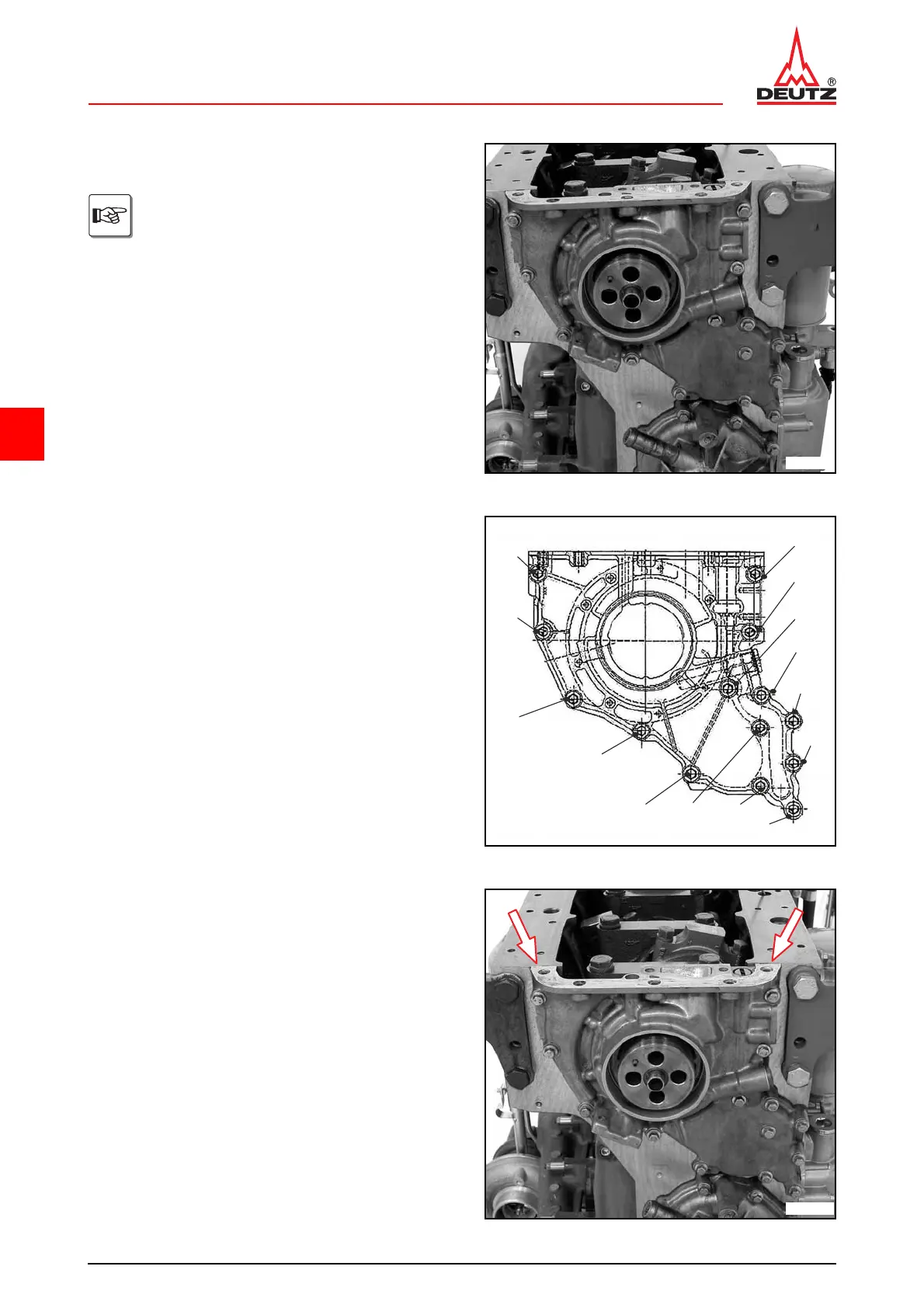

Front cover
TCD 2013 2VW 01-03-01
● Mount front cover.
● Fasten screws.
● Align front cover flush with the oil tray sealing sur
-
face.
Do not tighten screws.
© 44548-0
● Tighten the screws according to the tightening se
-
quence.
– Stage 1:
 3Nm
– Stage 2:
 21 Nm
10
12
13
14
1
3
9
11
8
4
5
6
7
2
© 44550-0
● Cut off overhanging gasket (arrows) flush with the
sealing surface of the oil tray.
● Install oil suction pipe.
 W 16-01-01
© 44551-0
