Front cover
TCD 2013 2V W 01-03-01

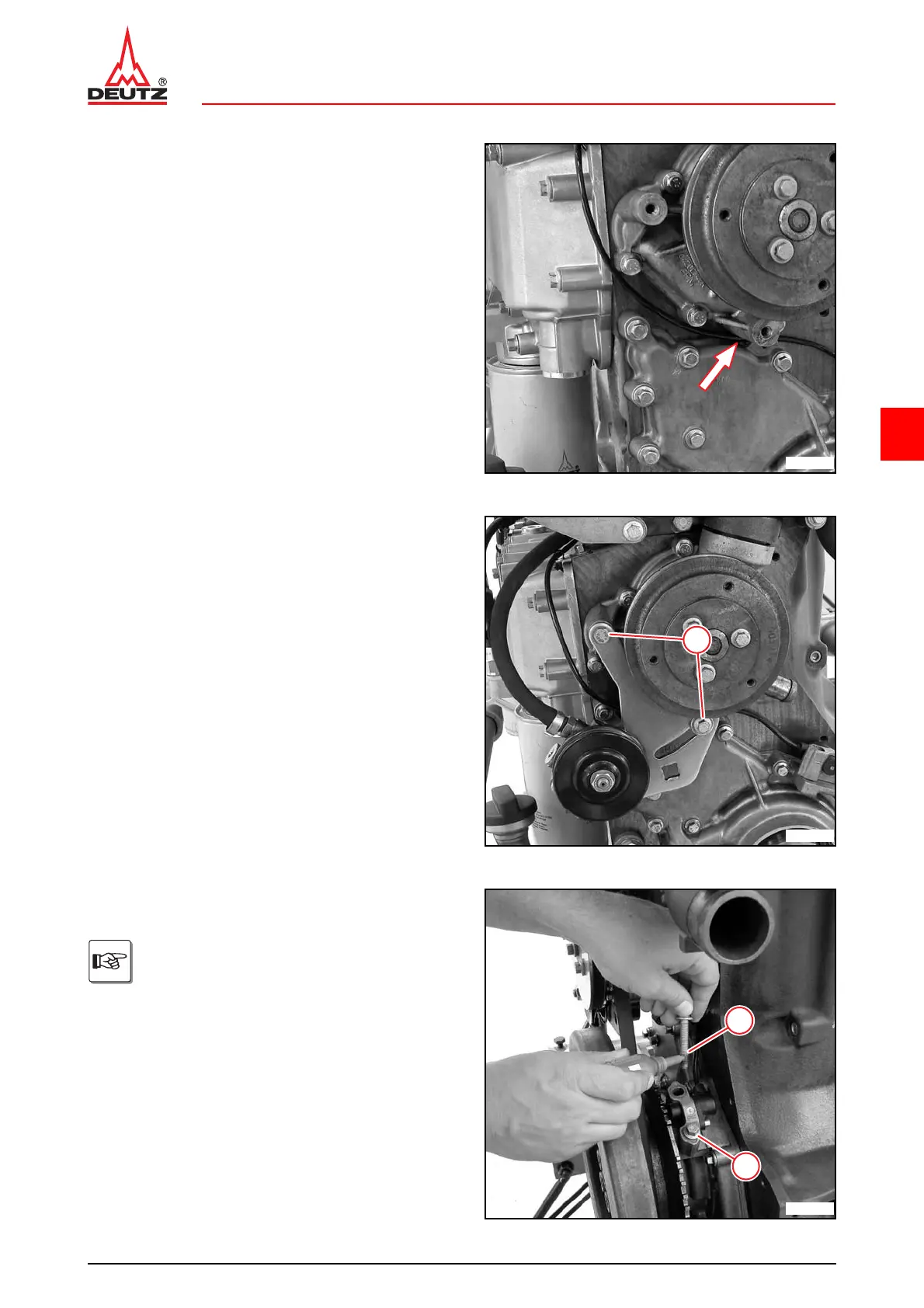

● Turn engine 180°.
● Lay cable between front cover and coolant pump (ar
-
row).
● Mount clamping strap.
● Tighten screws (1).
30 Nm
● Install crankshaft sealing ring (opposite side to fly
-
wheel)
W 01-02-01
● Install V-belt pulley.
W 05-01-01
● Mount holder with impulse transmitter.
● Fasten screws.
Clean the threads of the screws and holes.
Pay attention to different screws:
Screws M8 x 45 mm (1)
Screws M8 x 40 mm (2)
Insert screws with locking agent.
Do not tighten screws.
